UDR7 (15W), 10G SFP+, 2.5 GbE RJ45, 3x 2.5 GbE RJ45 including (1) PoE, 160 m² (1,750 ft²), WiFi 7, PoE, microSD

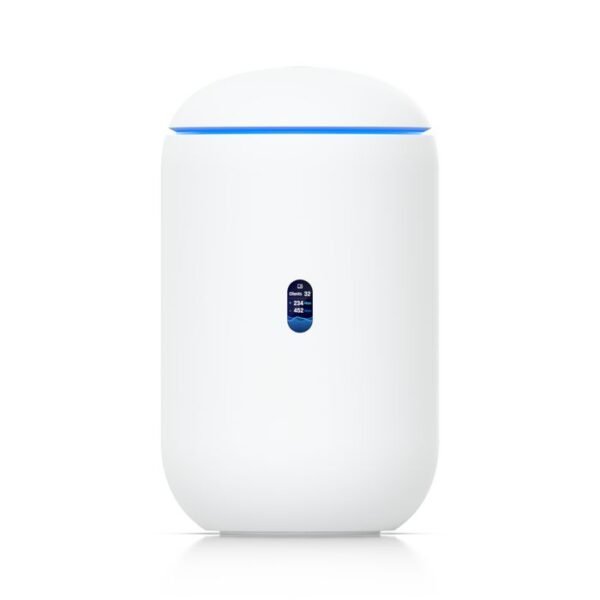

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Fast delivery within 72 Hours
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
£248.50
Excl.VAT
2633 in stock
Shipping & Delivery
-
Standard delivery
Our courier will deliver to the specified address
3-4 Days
From £9.95
-
Express delivery
All heavy items above 25kg will be charged shipping cost as per actual
1-2 Days
From £14.95
UDR7 (15W), 10G SFP+, 2.5 GbE RJ45, 3x 2.5 GbE RJ45 including (1) PoE, 160 m² (1,750 ft²), WiFi 7, PoE, microSD
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Antenna
| Antenna design | Internal |
|---|---|
| Antenna gain level (max) | 7 dBi |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
|---|
Design
| Built-in display | Yes |
|---|---|
| Display type | LCM |
| Housing material | Polycarbonate (PC) |
| LED indicators | Status |
| Product colour | White |
| Product type | Tabletop router |
Features
| Bluetooth | Yes |
|---|---|
| Built-in processor | Yes |
| Internal memory | 3000 MB |
| Number of simultaneously connected devices (max) | 300 |
| Processor architecture | ARM Cortex-A53 |
| Processor cores | 4 |
| Processor frequency | 1500 MHz |
Logistics data
| Export Control Classification Number (ECCN) | 5A992 |
|---|
Management features
| MIMO | Yes |
|---|---|
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Load balancing system | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum coverage | 160 m² |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q |
| Policy-based routing | Yes |
| VPN server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
Packaging data
| Number of products included | 1 pc(s) |
|---|
Ports & interfaces
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber optic connector | SFP+ |
| Memory card slot(s) | Yes |
| USB port | No |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 26 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Power source type | AC, PoE |
| Power supply | 50 W |
Protocols
| DHCP server | Yes |
|---|---|
| Routing protocols | OSPF |
Security
| Filtering | Yes |
|---|---|
| Firewall | Yes |
| MAC address table | 2000 entries |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
Vendor information
| Brand Name | Ubiquiti |
|---|---|
| Warranty | 2 Year(s) |
WAN connection
| 3G/4G USB modem compatibility | No |
|---|---|
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|---|
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 5700 Mbit/s |
| WLAN data transfer rate (second band) | 4300 Mbit/s |
| WLAN data transfer rate (third band) | 5700 Mbit/s |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
