M1135-E MK II

Name: M1135-E MK II
Brand: Axis
SKU: 02485-001
Price: 593.67 GBP
Availability: InStock

£593.67

Excl.VAT

SKU: 02485-001 Category: IP Cameras Brand: Axis

7 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

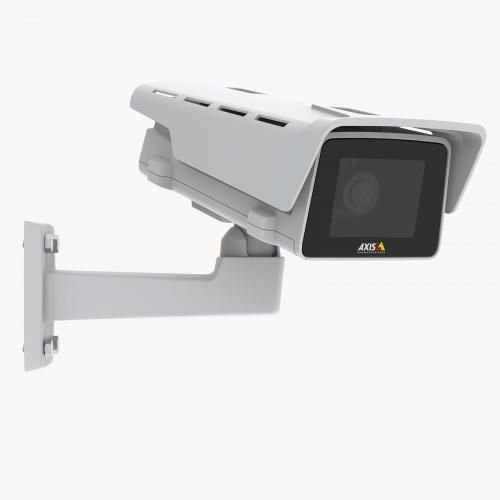

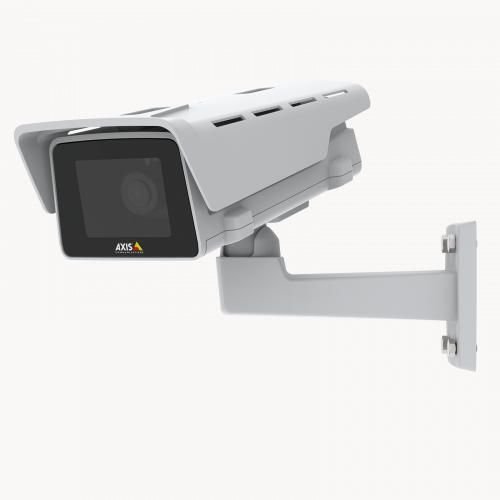

M1135-E MK II

Outdoor, NEMA 4X, IP66 and IK10-rated, light weight HDTV 1080p resolution, day/night, compact fixed box camera with CS-mount providing Forensic WDR and Lightfinder technology. Includes an IR corrected varifocal 3-10.5 mm F1.4 DC-iris lens. Camera also supports i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; full HDTV 1080p at 25/30 fps. Zipstream technology for reduced bandwidth and storage needs. Object Analytics and active tampering alarm. Audio in and audio detection with optional microphone. I/O for alarm/event handling, MQTT support. Edge Vault for added cyber security. MicroSD card slot for local storage. Operation in -25°C to +50°C. Powered by IEEE 802.3af/802.3at Type 1 Class 3 or 8-28VDC input. Includes removable sunshield, wall bracket, Torx T20 screw driver and IP66- rated cable glands. Midspan or power supply not included.

Audio

Audio system	2-way

Camera

Lens viewing angle, horizontal	90 °
Lens viewing angle, vertical	49 °
Minimum illumination	0.1 lx
Viewing angle, horizontal	90 °
Viewing angle, vertical	49 °

Design

Form factor	Box
IK code	IK10
International Protection (IP) code	IP66
Mounting type	Wall
Product colour	White

Image sensor

Optical sensor size	1/2.9 "
Sensor type	CMOS

Lens system

Focal length range	3 - 10.5 mm

Network

Ethernet LAN	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at

Night vision

Night vision	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-20 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Packaging content

Number of cameras	1

Performance

Connectivity technology	Wired
Day/night mode	Yes
PTZ control	Yes
PTZ modes	Digital PTZ
Placement supported	Indoor & outdoor
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Power

DC output voltage	10, 12, 15, 16, 24, 28
Power consumption (Power over Ethernet (PoE))	4.5 W
Power consumption (max)	6.6 W
Power consumption (typical)	4.4 W
Power source type	DC, PoE

Storage

Flash memory	512 MB

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Frame rate	30 fps
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	160 x 90
Total megapixels	2 MP
Video compression formats	H.264, H.265, MPEG4
Video formats supported	H.264, H.265

Weight & dimensions

Depth (with stand)	37.2 cm
Height (with stand)	24 cm
Weight (with stand)	1800 g
Width (with stand)	14.3 cm
