Mini GBIC WDM TX1310 Module – 10KM (-40 to 75C), DDM Supported

Name: Mini GBIC WDM TX1310 Module - 10KM (-40 to 75C), DDM Supported
Brand: Planet
SKU: MGB-TLA10
Price: 24.26 GBP
Availability: InStock

£24.26

Excl.VAT

SKU: MGB-TLA10 Category: Other Transceivers Brand: Planet

33 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

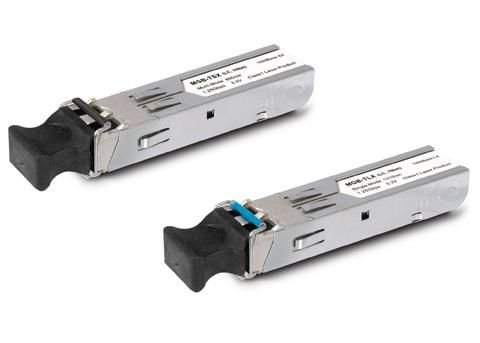

SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-10km (-40~75℃)

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Features

Hot-Plug support	Yes
Plug and Play	Yes

Operational conditions

Operating temperature (T-T)	-40 - 75 °C

Performance

Fiber optic connector	LC
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Maximum transfer distance	10000 m
Multi-mode fiber (MMF) supported	No
Networking standards	IEEE 802.3ah
SFP transceiver standard	BX
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Wavelength	1310 nm
Wavelength-division multiplexing (WDM)	Yes

Vendor information

Brand Name	Planet
Warranty	5 Year(s)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Mini GBIC WDM TX1310 Module – 10KM (-40 to 75C), DDM Supported”

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-10km (-40~75℃)

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.
