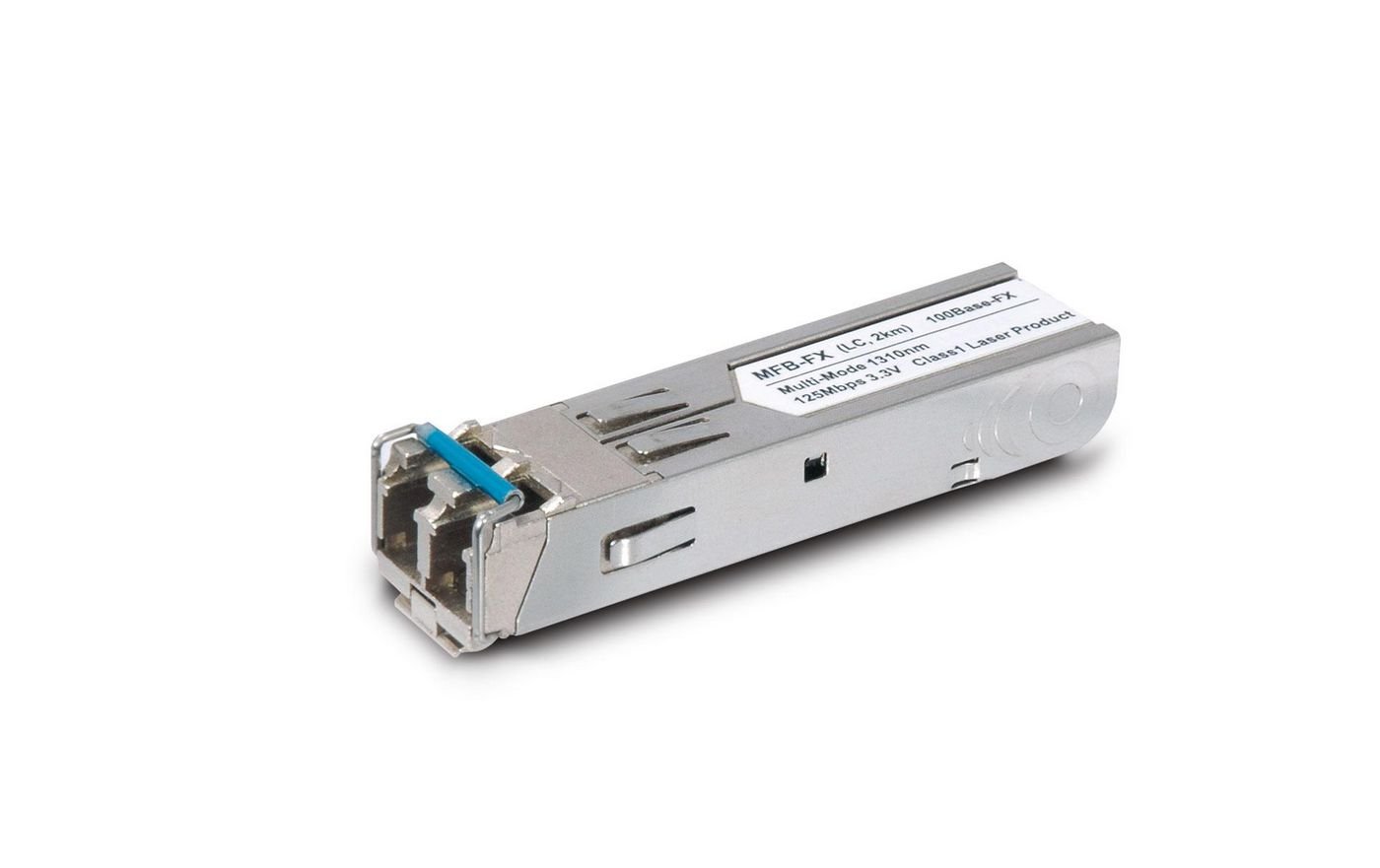

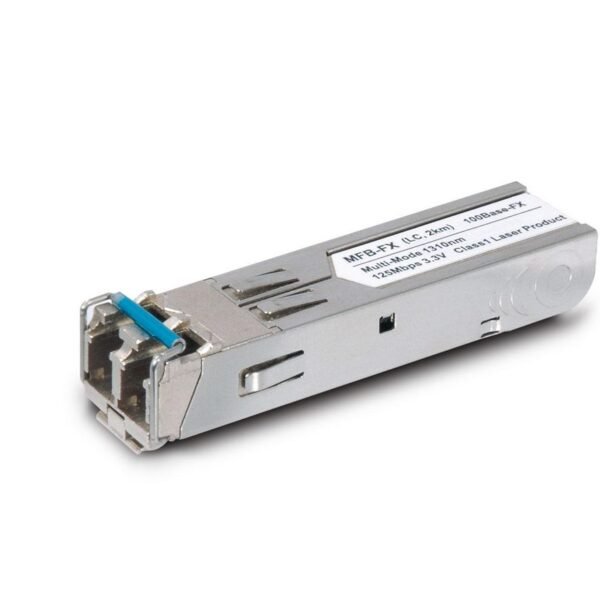

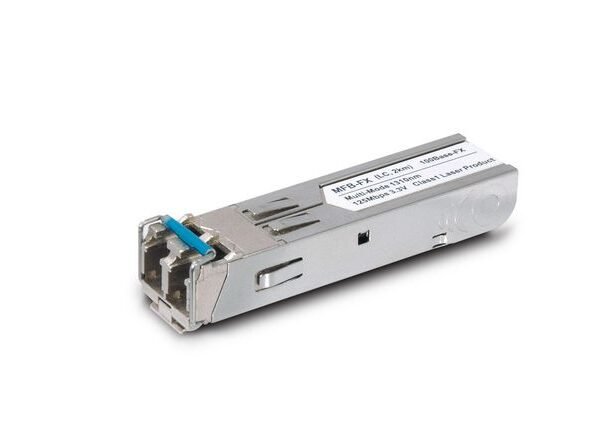

Multi-mode 100Mbps SFP fiber transceiver (2KM)

Name: Multi-mode 100Mbps SFP fiber transceiver (2KM)
Brand: Planet
SKU: MFB-FX
Price: 15.02 GBP
Availability: OutOfStock

£15.02

Excl.VAT

SKU: MFB-FX Category: SFP Brand: Planet

Out of stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

100BASE-FX SFP Transceiver

The MFB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber.

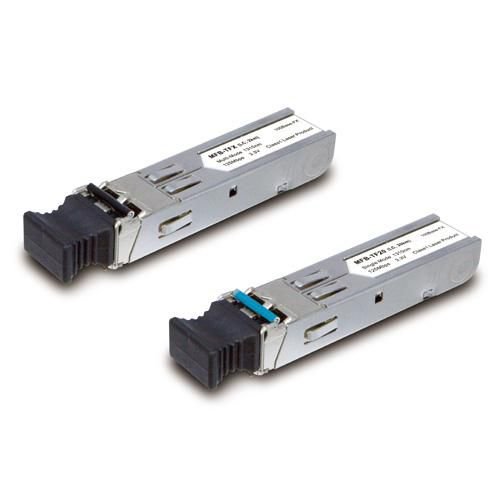

To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100Base-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MFB-T 100Base-FX transceiver series provides easy and fast 100Base-FX connection for Planet wide temperature industrial equipment.

Operational conditions

Operating temperature (T-T)	0 - 60 °C

Performance

Cabling technology	100Base-FX
Fiber optic connector	LC
Interface type	SFP
Maximum data transfer rate	100 Mbit/s
Maximum transfer distance	2000 m
Multi-mode fiber (MMF) supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3u
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	No
Wavelength	1310 nm

Vendor information

Brand Name	Planet
Warranty	3 Year(s)
