P3285-LVE 10 mm

Name: P3285-LVE 10 mm
Brand: Axis
SKU: 02981-001
Price: 865.10 GBP
Availability: InStock

£865.10

Excl.VAT

SKU: 02981-001 Category: IP Cameras Brand: Axis

140 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

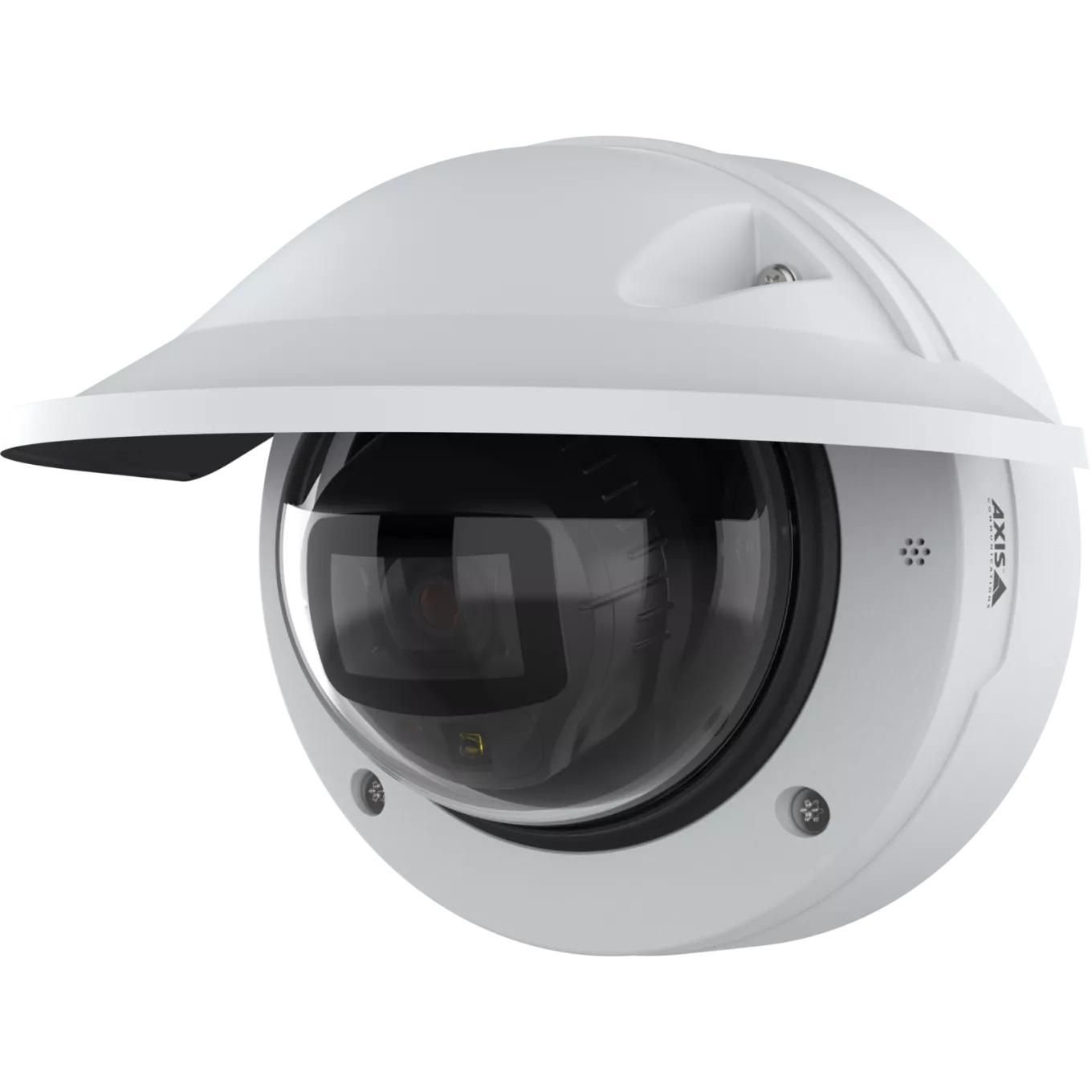

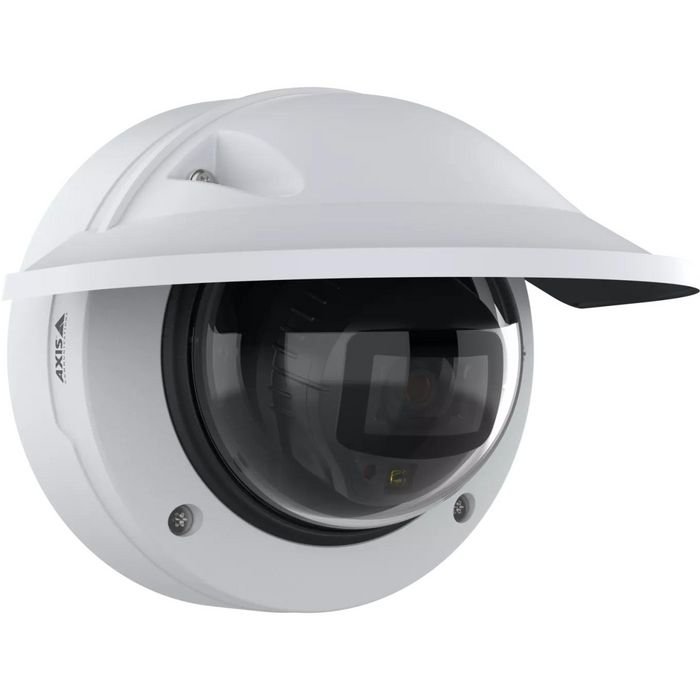

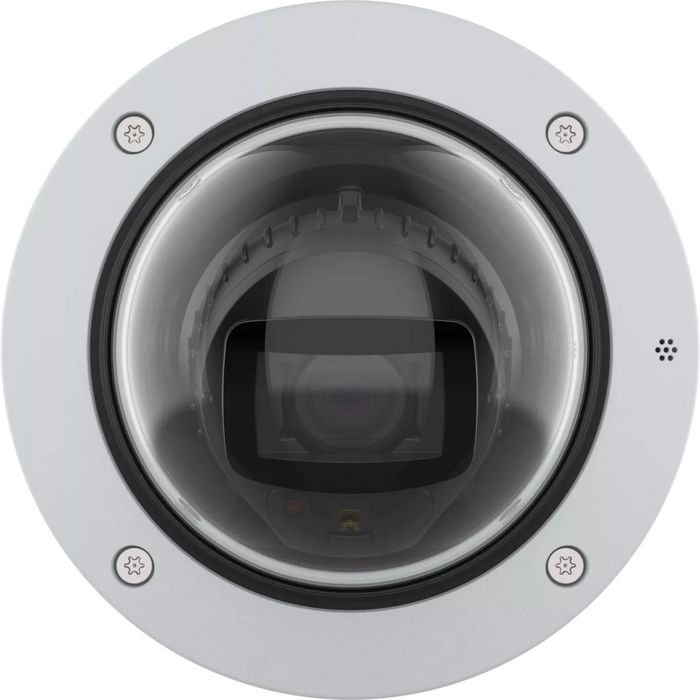

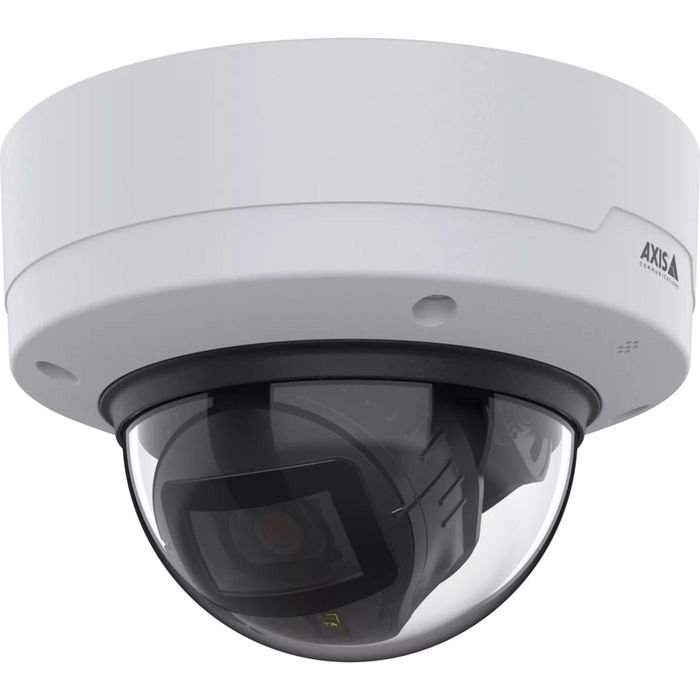

P3285-LVE 10 mm

High-performance 2 MP dome camera with AI analytics.
Excellent image quality thanks to Forensic WDR, Lightfinder 2.0 and Optimized IR.
Robust, vandal-secure IP66/IK10 polycarbonate outdoor casing with included weathershield.
Varifocal 3.4-9.8 mm P-iris lens with remote zoom and focus.
Multiple, individually configurable streams, AV1/H.264/H.265 with zipstream in up to 2 MP @ 60 fps.
Acoustic sensors for audio analytics. Supervised digital input and output.
Case-open sensor
Axis Edge Vault with FIPS 140-3 level 3 certified. Support for SD card storage.
Advanced AI analytics for object classification, counting, masking and more.
Powered by IEEE 802.3af/802.3at Type 1 Class 3.

Audio

Audio detection	Yes
Signal-to-Noise Ratio (SNR)	55 dB

Camera

Angle of rotation	190 °
Camera pan control	Yes
Camera pixel size	2.9 µm
Camera shutter speed	1/37000 - 2 s
Camera tilt control	Yes
Lens viewing angle, horizontal	100 °
Lens viewing angle, vertical	52 °
Minimum illumination	0.02 lx
Pan range	-190 - 190 °
Tilt angle range	-45 - 80 °

Design

Form factor	Dome
Housing material	Plastic, Polycarbonate (PC)
IK code	IK10
International Protection (IP) code	IP66
LED indicators	Yes
Mounting type	Ceiling/wall
Product colour	Black, White
Protection features	Impact resistant, Vandal proof
Weatherproof	Yes

Image sensor

Number of sensors	1
Optical sensor size	1/2.8 "
Sensor type	CMOS

Lens system

Auto focus	Yes
Closest focusing distance	1 m
Detect distance (tele)	135 m
Detect distance (wide)	48 m
Focal length range	3.4 - 9.8 mm
Identify distance (tele)	14 m
Identify distance (wide)	4.8 m
Lens diameter	1 cm
Maximum aperture number	1.76
Minimum aperture number	1.7
Number of lenses	1
Observe distance (tele)	54 m
Observe distance (wide)	19 m
Recognize distance (tele)	27 m
Recognize distance (wide)	9.6 m
Zoom capability	Yes

Management features

Behavior analysis	Line crossing detection

Network

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Streaming method	Multicast

Night vision

Infra-red wavelength	850 nm
LED type	IR
Night vision	Yes
Night vision distance	40 m

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-40 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Other features

Doesn't contain	CFR, PVC, PVC/BFR

Packaging content

Manual	Yes
Number of cameras	1
Sun shield included	Yes

Performance

Auto-tracking	Yes
Certification	UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
Connectivity technology	Wired
Day/night mode	Yes
PTZ control	Yes
PTZ modes	Digital PTZ
Placement supported	Indoor & outdoor
Tour recording	Yes
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes

Power

Power consumption (max)	10 W
Power consumption (typical)	3.4 W
Power source type	PoE

Security

Active tampering alarm	Yes
Alert notification type	E-mail
Human and vehicle targets classification	Yes
Pixel counter	Yes
Privacy protection	Yes
Security algorithms	256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Video motion detection	Yes

Storage

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8000 MB
RAM capacity	2000 MB

Sustainability

Compliance certificates	REACH, RoHS, Trade Agreements Act (TAA)

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Bit rate control	Variable Bit Rate (VBR)
Flip & mirror	Yes
Frame rate	60 fps
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Maximum resolution	1920 x 1080 pixels
Noise reduction technology	2D noise reduction, 3D noise reduction
Supported graphics resolutions	1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080)
Text caption overlay	Yes
Total megapixels	2 MP
Video formats supported	AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video streaming	Yes
