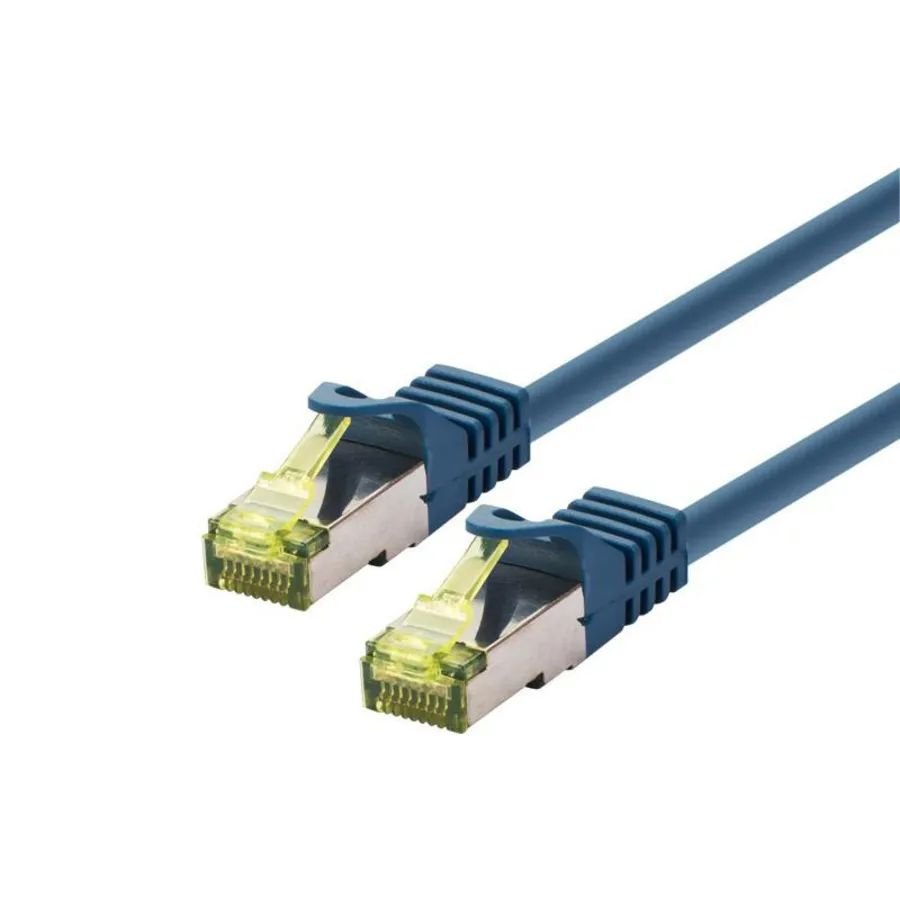

PATCH CABLE SFTP/AWG26/LSOH 7M – CAT6A 500Mhz – BLUE

PATCH CABLE SFTP/AWG26/LSOH 7M – CAT6A 500Mhz – BLUE

Technical data

Connections

Connection 1 type: RJ45 male (8P8C)
Connection 2 type: RJ45 male (8P8C)
Connection shielding: yes
Latch protection: both sides

Cable

Cable length: 7.5 m
Specification: CAT 6a
Shielding class: S/FTP (PiMF)
Material cable sheath: LSZH
Kink protection: both sides
Cable type: round cable
Inner conductor material: CU (copper)
AWG: 27/7 (stranded)
Cable sheath diameter (approx.): 6 mm
Number of shieldings: 2 x
Type 1 shielding: foil (alu) PiMF
Type 2 shielding: braid (alu) overall shield
LSZH compliant: yes

Signal transmission

Max. bandwidth: 500 MHz

General

Consumption Unit: 1 x in polybag
Outer sheath material: LSZH
Color: blue
