Q1800-LE

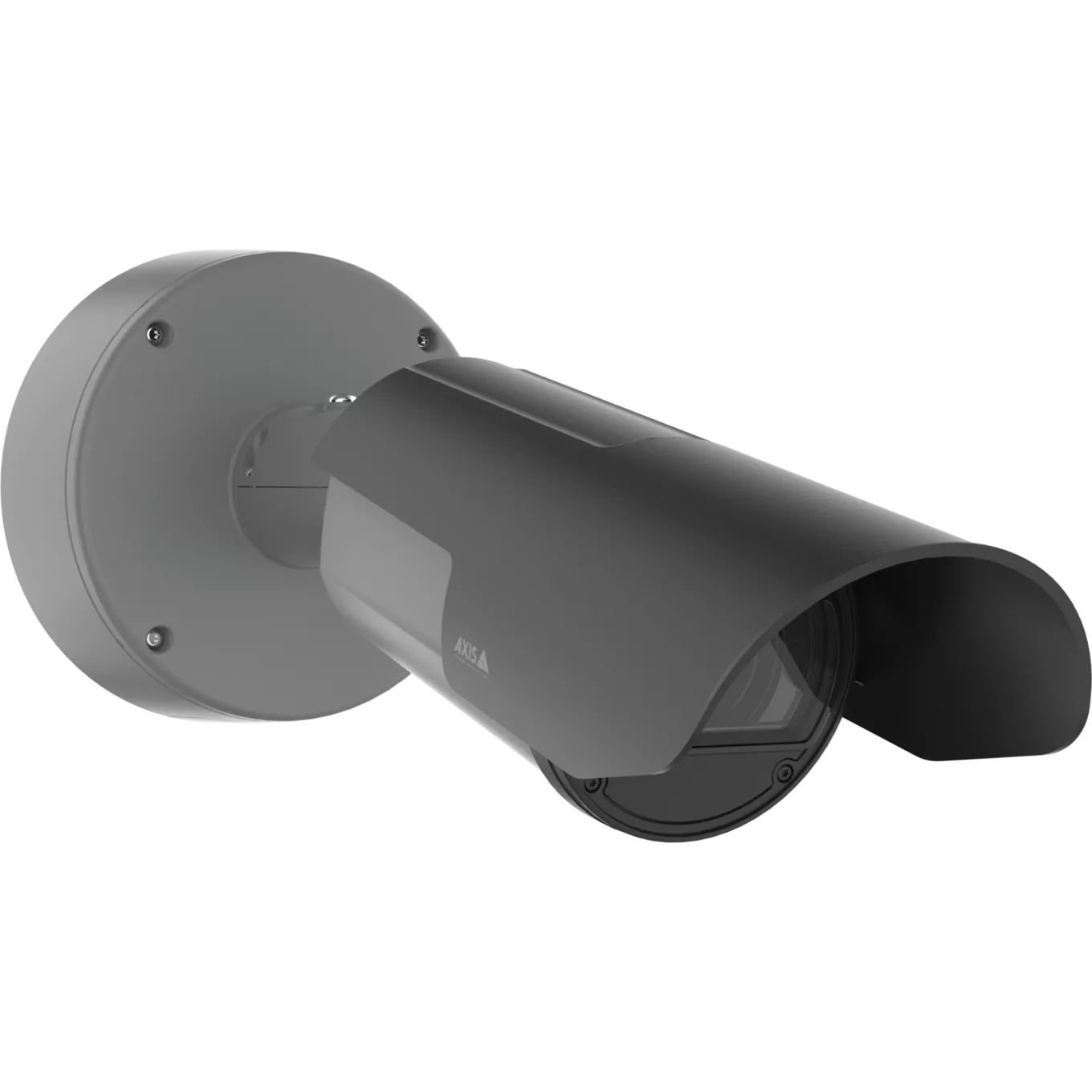

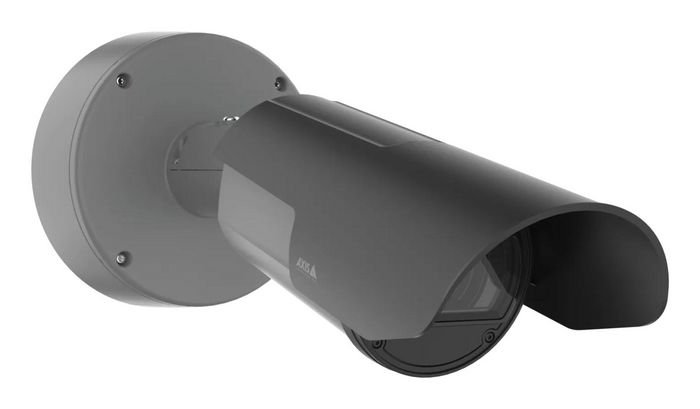

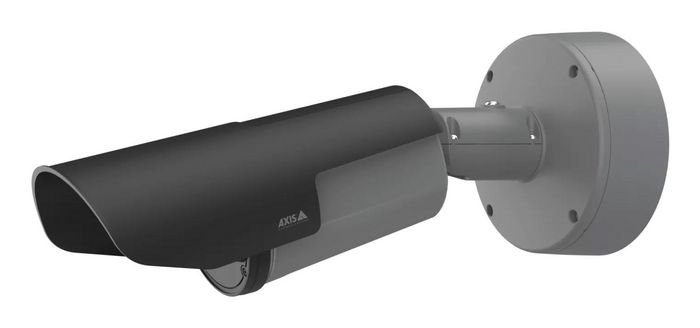

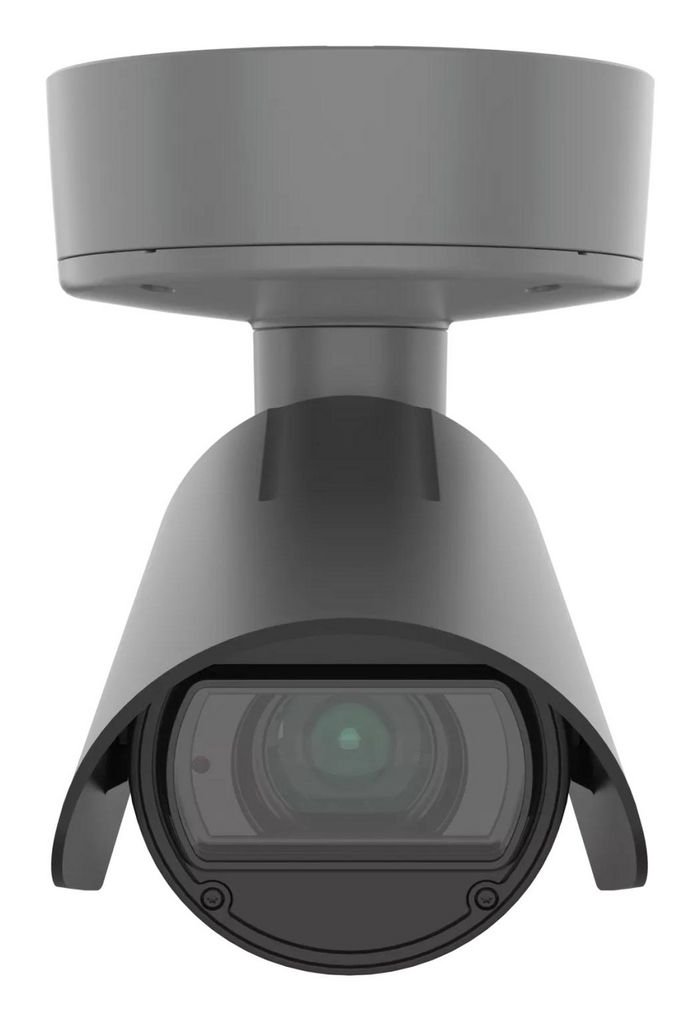

LPR camera for 3rd party software. Robust, outdoor, NEMA 4X, IP66 and IK10-rated, 2 MP/1080p resolution license plate camera, purpose-tuned for sharp license plate images, day/night, fixed bullet camera. OptimizedIR, a power-efficient 850 nm IR LED technology.
Varifocal 7-137 mm, 20x optical zoom lens, 38°–2.3° HFOV with remote zoom and focus.
License plate capture range 20-100 meter at speeds up to 250 km/h (155 mph) with optional server based LPR software. Includes Traffic Camera Installation Assistance for easy setup
Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 2MP up to 90 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Corridor format, barrel distortion correction, defogging, electronic imaging stabilization and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. Integrated bracket for easy mounting on wall and ceiling.
Operation in -40°C to +60°C (-40 °F to 140 °F). Powered by PoE class 4 (IEEE 802-3at), 10-28 V DC or 20-24 V AC. IP66- rated cable glands and optional IDC punch connectors. 30W PoE out to power an additional device, requires Axis Midspan 60 W, IEEE 802.3bt Type 3 Class 6
Power supply or midspan not included.

Audio

Audio detection	Yes
Audio formats supported	AAC-LC, ADPCM, LPCM, OPUS, PCM
Audio system	2-way
Built-in speaker(s)	Yes
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB

Camera

Angle of rotation	270 °
Camera pixel size	2.9 µm
Camera shutter speed	1/111000 - 2 s
Lens viewing angle, horizontal	22 - 1.3 °
Minimum illumination	0.06 lx
Pan range	-180 - 180 °
Tilt angle range	0 - 90 °

Design

Form factor	Bullet
Housing material	Aluminium, Glass
IK code	IK08, IK10
International Protection (IP) code	IP66
Mounting type	Wall
Product colour	Black
Protection features	Impact resistant, Vandal proof, Weather resistant

Image sensor

Number of sensors	1
Optical sensor size	1/2.8 "
Sensor type	CMOS

Lens system

Auto focus	Yes
Closest focusing distance	1.2 m
Detect distance (tele)	1884.2 m
Detect distance (wide)	96.7 m
Focal length range	7 - 138 mm
Identify distance	1.2 m
Identify distance (tele)	188.4 m
Identify distance (wide)	9.7 m
Number of lenses	1
Observe distance (tele)	747.7 m
Observe distance (wide)	38.4 m
Recognize distance (tele)	376.8 m
Recognize distance (wide)	19.3 m

Management features

Remotely operated	Yes

Network

Ethernet LAN	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Streaming method	Multicast

Night vision

B/W night vision distance	50 m
Infra-red wavelength	850 nm
LED type	IR
Night vision	Yes
Night vision distance	100 m

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Other features

Doesn't contain	BFR, CFR

Packaging content

Cables included	LAN (RJ-45)
Manual	Yes
Number of cameras	1

Panoramic camera

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Performance

Certification	UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
PTZ control	Yes
PTZ modes	Digital PTZ
Placement supported	Outdoor
Preset points	Yes
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Power

Power consumption (max)	29 W
Power consumption (typical)	11 W
Power source type	PoE

Security

Active tampering alarm	Yes
Digest authentication	Yes
Intelligent Video Surveillance (IVS) system features	Human detection, Line crossing detection, Moving object, Vehicle detection
Password protection	Yes
Pixel counter	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Storage

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Sustainability

Compliance certificates	Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate	90 fps
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Image stabilizer	Yes
Maximum resolution	1920 x 1080 pixels
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Supported graphics resolutions	1400 x 1050 (SXGA+), 160 x 120, 1920 x 1080 (HD 1080), 320 x 180
Supported video modes	1080p
Text caption overlay	Yes
Video formats supported	AVC, H.264, H.265, M-JPEG
Video streaming	Yes
