Q3546-LVE 10 mm

Name: Q3546-LVE 10 mm
Brand: Axis
SKU: 02971-001
Price: 1455.30 GBP
Availability: InStock

£1,455.30

Excl.VAT

SKU: 02971-001 Category: IP Cameras Brand: Axis

30 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

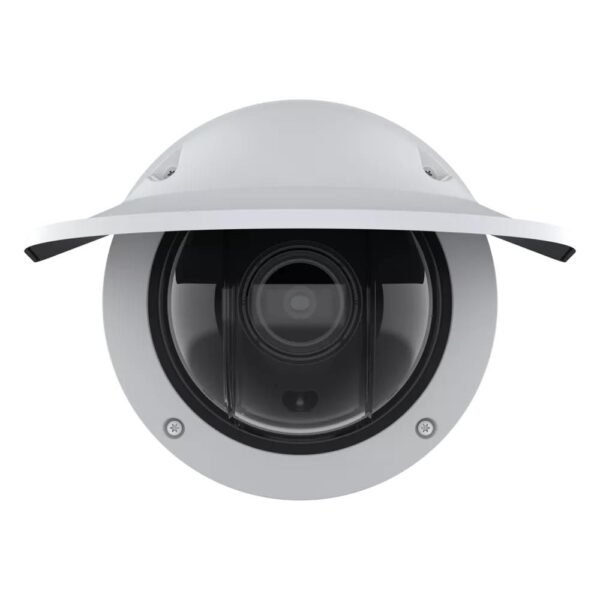

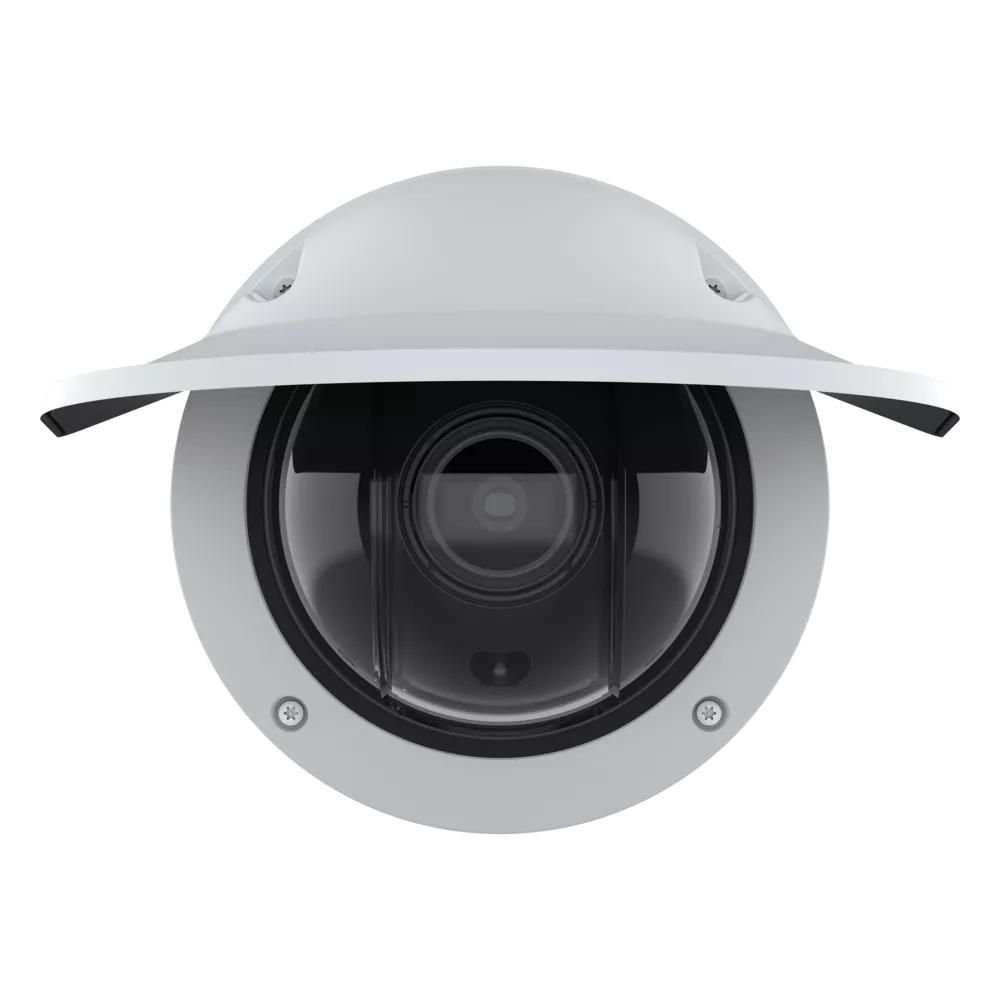

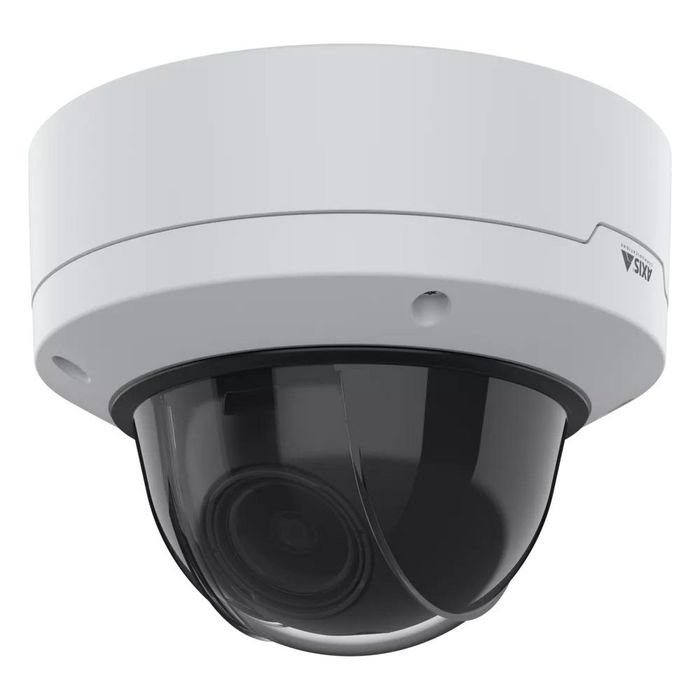

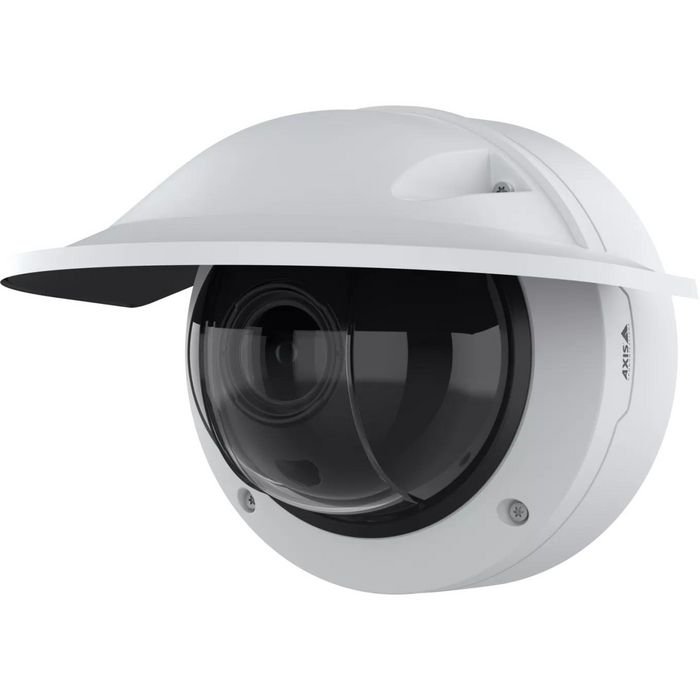

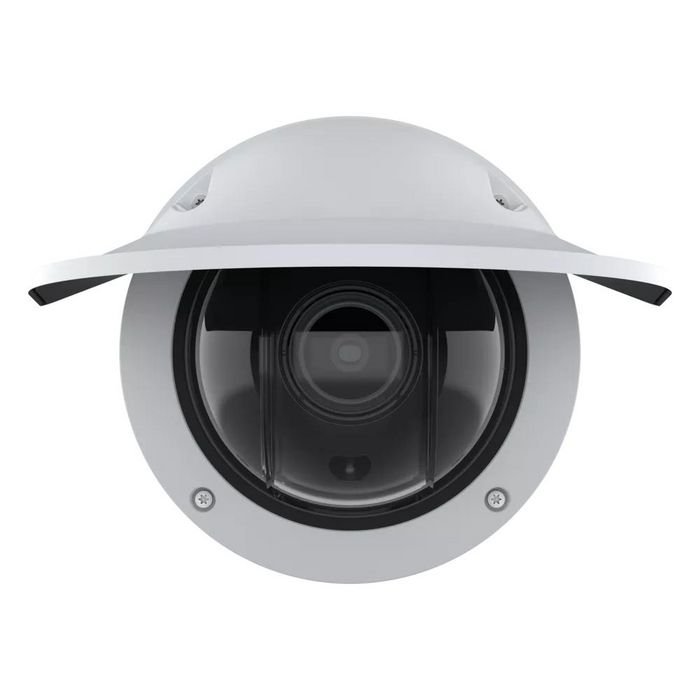

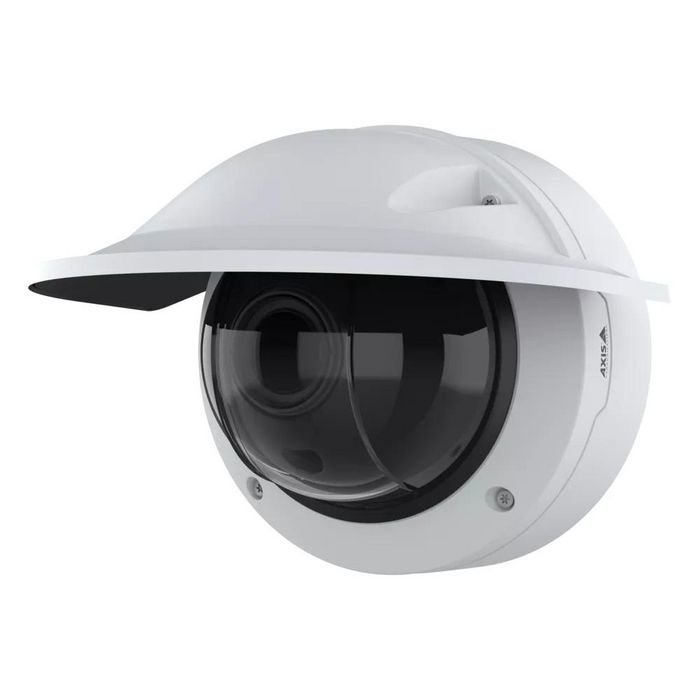

Q3546-LVE 10 mm

Advanced 4 MP dome camera with AI analytics. Outstanding image quality thanks to Forensic WDR, Lightfinder 2.0 and Optimized IR with IR shielded dome.
Robust, IP66/IP6K9K/IK10 aluminum casing and included weather shield.
Varifocal 4-10mm P-iris lens with F1.1 aperture.
Multiple, individually configurable streams, AV1/H.264/H.265 with zipstream in up to 4MP @ 120fps.
Audio support from 3.5mm audio input, portcast and Edge-to-edge. Supervised digital input and output. Electronic Image Stabilization. Case-open sensor. Shock detector. Level assistant.
Axis Edge Vault with FIPS 140-3 level 3 certified. Support for SD card storage.
Advanced AI analytics for object classification, counting, masking and more.
Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy.

Audio

Audio detection	Yes
Audio formats supported	AAC-LC, G.711, G.726, LPCM, OPUS, PCM
Audio system	2-way
Audio system full duplex	Yes
Signal-to-Noise Ratio (SNR)	55 dB

Camera

Angle of rotation	360 °
Camera pan control	Yes
Camera pixel size	2.9 µm
Camera shutter speed	1/49500 - 2 s
Camera tilt control	Yes
Lens viewing angle, horizontal	101 °
Lens viewing angle, vertical	54 °
Minimum illumination	0.01 lx
Pan range	-180 - 180 °
Tilt angle range	-42 - 80 °

Design

Form factor	Dome
Housing material	Aluminium, Plastic
IK code	IK10
International Protection (IP) code	IP66, IP6K9K
LED indicators	Yes
Mounting type	Ceiling/wall
Product colour	Black, White
Protection features	Impact resistant, Vandal proof

Image sensor

Number of sensors	1
Optical sensor size	1/1.8 "
Sensor type	CMOS

Lens system

Auto focus	Yes
Closest focusing distance	0.5 m
Detect distance (tele)	141 m
Detect distance (wide)	65 m
Focal length range	4.7 - 10 mm
Identify distance (tele)	14 m
Identify distance (wide)	6.4 m
Lens diameter	1 cm
Maximum aperture number	1.2
Minimum aperture number	1.1
Number of lenses	1
Observe distance (tele)	56 m
Observe distance (wide)	26 m
Optical zoom	2.2 x
Recognize distance (tele)	28 m
Recognize distance (wide)	13 m
Zoom capability	Yes

Network

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Streaming method	Multicast

Night vision

Infra-red wavelength	850 nm
LED type	IR
Night vision	Yes
Night vision distance	60 m

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-50 - 55 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Other features

Doesn't contain	CFR, PVC/BFR

Packaging content

Number of cameras	1
Sun shield included	Yes

Performance

Auto-tracking	Yes
Certification	UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE
Connectivity technology	Wired
Day/night mode	Yes
PTZ control	Yes
Placement supported	Indoor & outdoor
Tour recording	Yes
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Power

Power consumption (max)	25.5 W
Power consumption (typical)	6.3 W
Power source type	PoE

Security

Active tampering alarm	Yes
Alert notification type	E-mail
Human and vehicle targets classification	Yes
Intelligent Video Surveillance (IVS) system features	Line crossing detection, Moving object
Privacy protection	Yes
Security algorithms	256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS

Storage

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8000 MB
RAM capacity	4000 MB

Sustainability

Compliance certificates	REACH, RoHS, Trade Agreements Act (TAA)

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror	Yes
Frame rate	120 fps
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Image stabilizer	Yes
Maximum resolution	2688 x 1512 pixels
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Supported graphics resolutions	1280 x 800 (WXGA), 2688 x 1512
Text caption overlay	Yes
Total megapixels	4 MP
Video formats supported	AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video streaming	Yes
