Q4809-PVE

Name: Q4809-PVE
Brand: Axis
SKU: 02658-001
Price: 2513.28 GBP
Availability: InStock

£2,513.28

Excl.VAT

SKU: 02658-001 Category: IP Cameras Brand: Axis

3 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Q4809-PVE

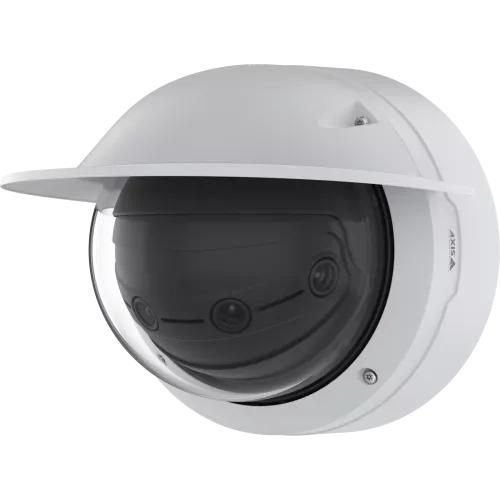

AXIS Q4809-PVE delivers a 180º panoramic overview of extensive areas. With 26 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 45° vertical coverage at 25/30 FPS. The camera is ideal for situations where detail is important, offering very high pixel density. The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view. AXIS Q3839-PVE comes with pan/tilt/roll installation motors for ease of installation and offers the Horizon Straightening feature for natural 180° views.

Audio

Signal-to-Noise Ratio (SNR)	55 dB

Camera

Camera pixel size	1.55 µm
Camera shutter speed	1/100000 - 1/2 s
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	45 °
Minimum illumination	0.03 lx
Pan range	-176 - 176 °
Tilt angle range	20 - 80 °

Design

Form factor	Dome
IK code	IK10
International Protection (IP) code	IP66, IP67
Mounting type	Wall
Product colour	White

Image sensor

Number of sensors	4
Optical sensor size	1/2.3 "
Sensor type	CMOS

Lens system

Detect distance	130 m
Fixed focal length	5 mm
Identify distance	13 m
Minimum aperture number	1.7
Observe distance	51.6 m
Recognize distance	26 m

Management features

Cloud-managed	Yes

Network

Bluetooth	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi	No

Night vision

Night vision	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-40 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Packaging content

Number of cameras	1

Performance

Connectivity technology	Wired
Day/night mode	Yes
Dynamic range	120 dB
Placement supported	Indoor & outdoor
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Power

Power consumption (Power over Ethernet (PoE))	9.74 W
Power consumption (max)	19.1 W
Power source type	PoE

Security

Security algorithms	EAP, EAP-TLS, MSCHAPv2, PEAP

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
RAM capacity	8192 MB

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Frame rate	30 fps
Maximum resolution	10240 x 2560 pixels
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Total megapixels	12 MP
Video compression formats	H.264, H.265, M-JPEG

Weight & dimensions

Diameter	22.8 cm
