Q6086-E PTZ Camera

£6,370.98

Excl.VAT

SKU: 03188-002 Category: Brand:

3 in stock

Shipping & Delivery

  • Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

  • Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Q6086-E

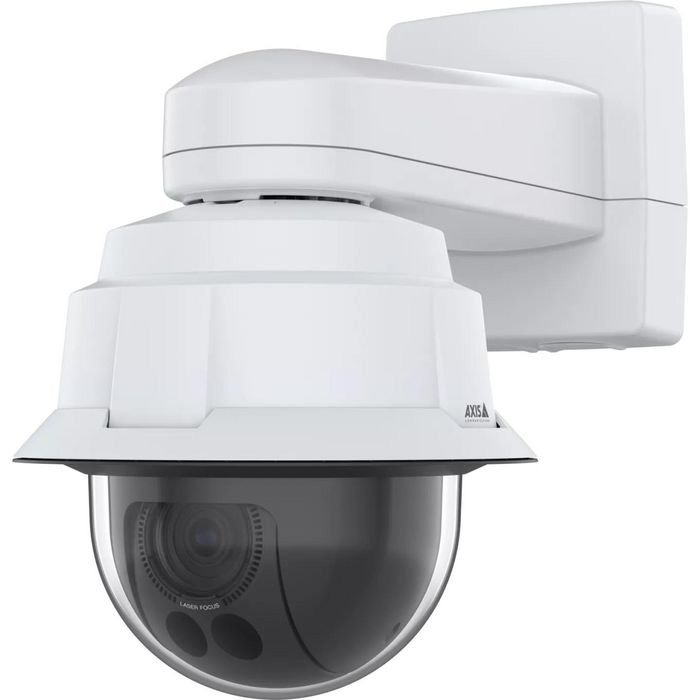

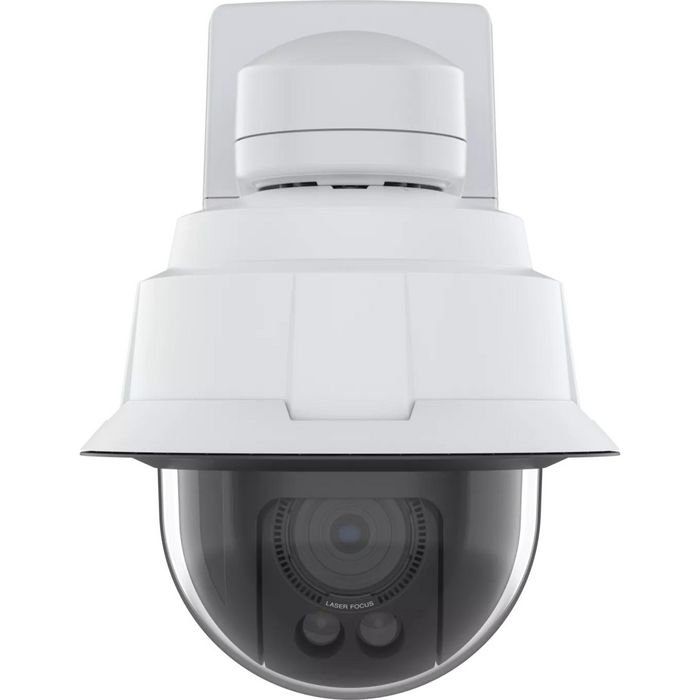

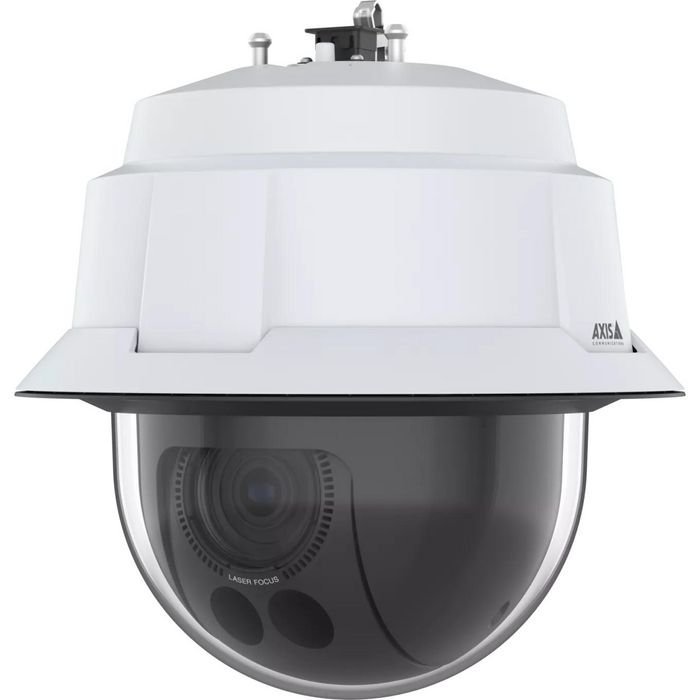

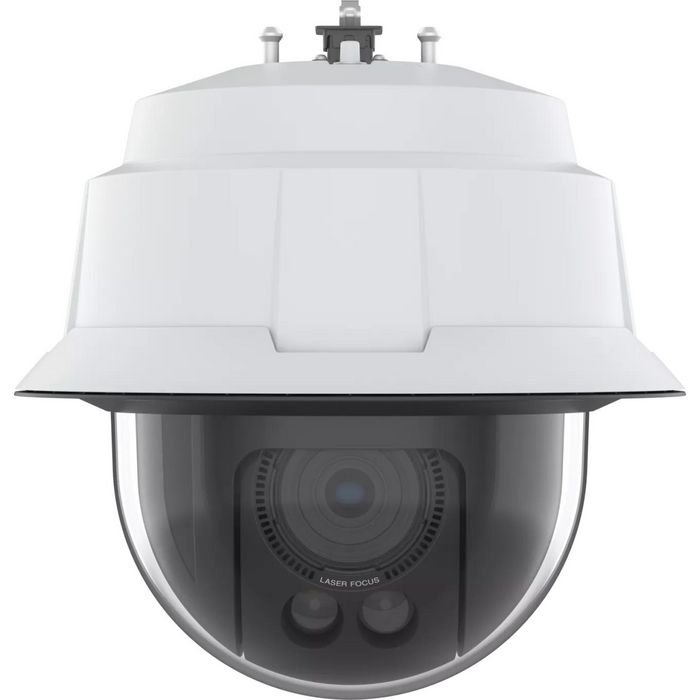

AXIS Q6086-E PTZ Camera

This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.

Superior details and light sensitivity

Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.

Powerful, next-generation analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.

Robust with strong cybersecurity

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you’ll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.

Camera

Camera pan controlYes
Camera pixel size2.9 µm
Camera shutter speed1/49500 - 2 s
Camera tilt controlYes
Lens viewing angle, horizontal61.5 °
Lens viewing angle, vertical37.3 °
Minimum illumination0.009 lx
Pan range0 - 360 °
Pan speed500 °/sec
Tilt angle range-90 - 0 °
Tilt speed500 °/sec

Design

Fog proofYes
Form factorDome
Housing materialAluminium, Polycarbonate (PC)
IK codeIK10
International Protection (IP) codeIP66
Mounting typeCeiling
Product colourBlack, White
Protection featuresWear resistant

Image sensor

Number of sensors1
Optical sensor size1/2 "
Progressive scanYes
Sensor typeCMOS

Lens system

Auto focusYes
Closest focusing distance3 m
Detect distance (tele)3118.4 m
Detect distance (wide)92.6 m
Digital zoom12 x
Focal length range6.64 - 225.5 mm
Identify distance (tele)311.8 m
Identify distance (wide)9.3 m
Maximum aperture number5.1
Minimum aperture number1.7
Number of lenses1
Observe distance (tele)1237.5 m
Observe distance (wide)36.7 m
Optical zoom32 x
Recognize distance (tele)623.6 m
Recognize distance (wide)18.5 m
Zoom capabilityYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3bt
Streaming methodMulticast

Operational conditions

Operating relative humidity (H-H)10 - 100 %
Operating temperature (T-T)-50 - 55 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 65 °C

Other features

Doesn't containCFR, PVC/BFR

Packaging content

Number of cameras1

Performance

Auto-trackingYes
CertificationCE, FCC, ICES, KC, VCCI
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
PTZ controlYes
PTZ modesPreset point
Placement supportedOutdoor
Preset pointsYes
Tour recordingYes
TypeIP security camera
Wide Dynamic Range (WDR)Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power consumption (max)51 W
Power consumption (typical)10 W
Power source typePoE

Security

Alert notification typeE-mail
HTTPS encryptionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Crossing line
Password protectionYes
Pixel counterYes
Security algorithmsHTTPS, TLS

Storage

Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Flash memory8192 MB
RAM capacity4096 MB

Sustainability

Compliance certificatesREACH, RoHS, Trade Agreements Act (TAA)

Vendor information

Brand NameAxis
Warranty5 Year(s)

Video

Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate60 fps
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Maximum resolution2688 x 1512 pixels
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Supported graphics resolutions2688 x 1512, 640 x 360
Text caption overlayYes
Total megapixels4 MP
Video compression formatsH.262, H.264, H.265, M-JPEG, MPEG4
Video streamingYes
