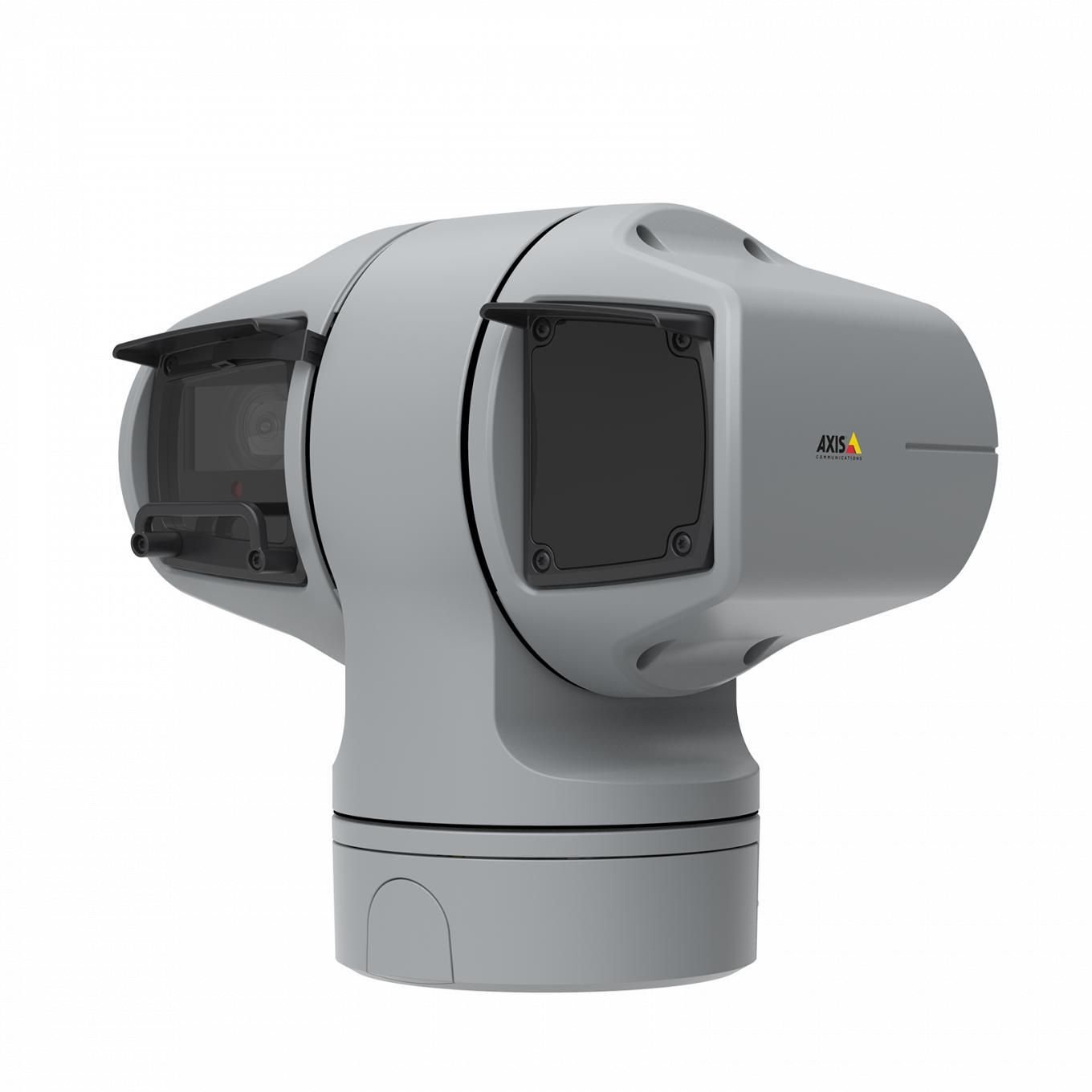

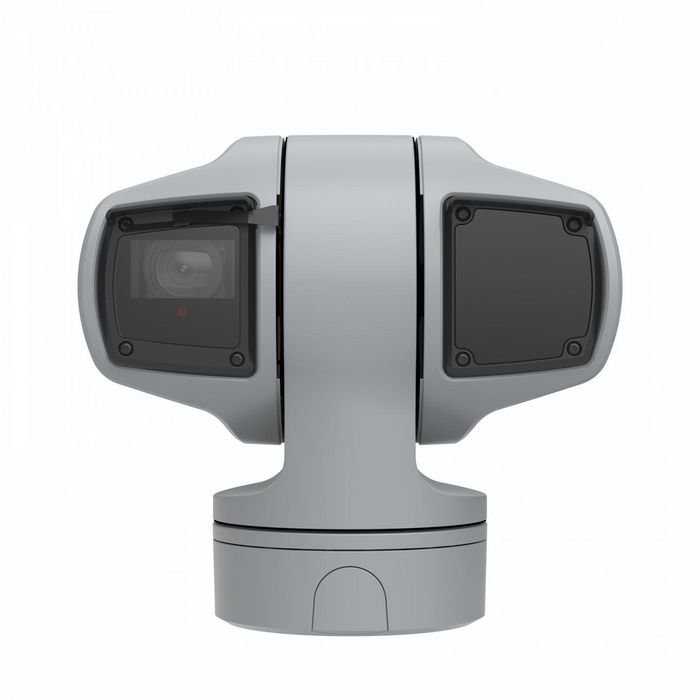

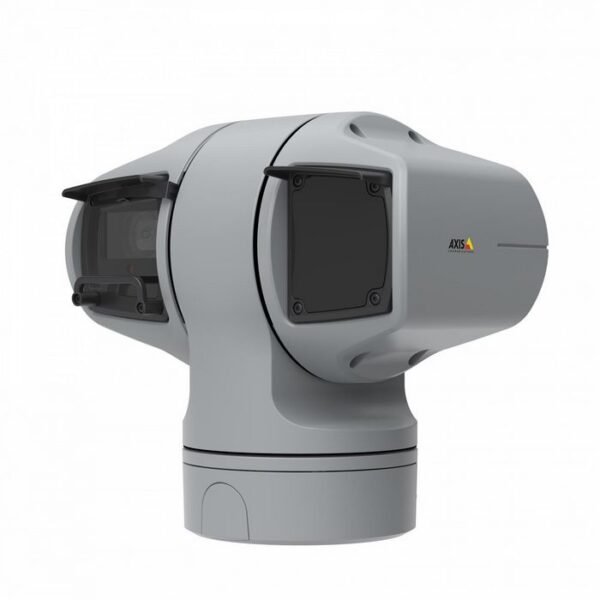

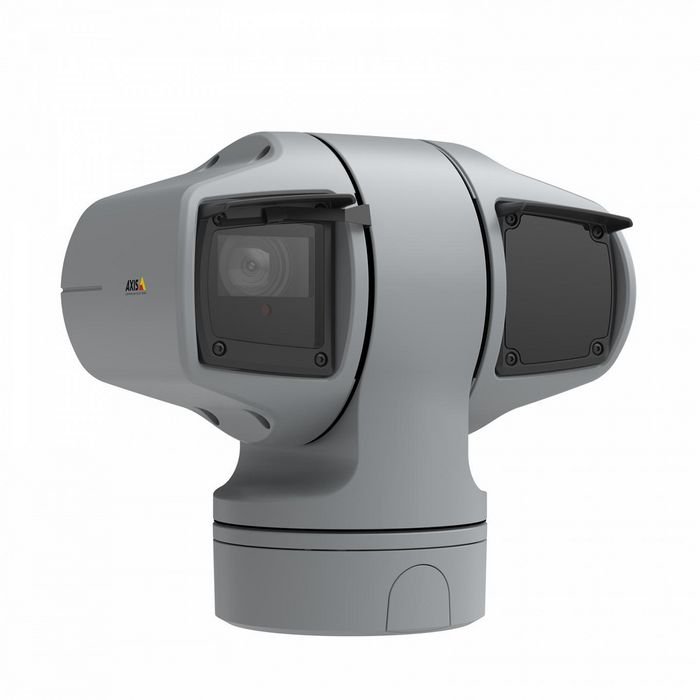

Q6225-LE 50 Hz NM

PTZ for the toughest conditions. MIL specified, build in IR illumination 400M (1300t), can be mounted face up or face down. IP66/67/68, IK10, MIL 8105 521, NEMA TS2 for temperature up to 74C (165F), Arctic temperature control.

Camera part; ½” sensor with HDTV 1080p, 30x optical zoom, 50fps, H264/H.265 with Zipstream and Motion JPEG, WDR, improved EIS. Perfect image quality in all directions without distortion, window wiper. Autotracking 2, Tour recording and Active Gatekeeper. Compass ruler overlay, Privacy mask with chameleon and mosaic masking. Highlight compensation. Color; Urban grey.
No Midspan or mounting bracket included (several different accessories available).

Camera

Camera pan control	Yes
Camera shutter speed	1/111000 - 1/2 s
Camera tilt control	Yes
Lens viewing angle, horizontal	63.8 °
Lens viewing angle, vertical	37 °
Minimum illumination	0.05 lx
Pan speed	150 °/sec
Tilt angle range	-90 - 90 °
Tilt speed	150 °/sec

Design

Form factor	Box
Housing material	Aluminium
IK code	IK10
International Protection (IP) code	IP66, IP68
Mounting type	Wall
Product colour	Grey

Image sensor

Optical sensor size	1/2 "
Progressive scan	Yes
Sensor type	CMOS

Lens system

Auto focus	Yes
Digital zoom	12 x
Focal length range	6.91 - 214.64 mm
Maximum aperture number	4.6
Minimum aperture number	1.36
Optical zoom	31 x
Zoom capability	Yes

Network

Bluetooth	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3bt
Quality of Service (QoS) support	Yes
Wi-Fi	No

Night vision

Infra-red wavelength	850 nm
LED type	IR
Night vision	Yes
Night vision distance	400 m

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C

Packaging content

Cables included	LAN (RJ-45)
Manual	Yes
Number of cameras	1
Packaging content	Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port

Performance

Auto-tracking	Yes
Built-in processor	Yes
Certification	EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese
Number of languages	18
PTZ control	Yes
Placement supported	Outdoor
Processor model	ARTPEC-7
Tour recording	Yes
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Power

AC input voltage	100 - 240 V
Power consumption (max)	71 W
Power consumption (typical)	25 W
Power source type	PoE

Security

Digest authentication	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Network access storage (NAS)	Yes
Password protection	Yes
Pixel counter	Yes
Video motion detection	Yes

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Flash memory	512 MB
Internal memory	1024 MB

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Frame rate	50 fps
Maximum resolution	1920 x 1080 pixels
Privacy masking	Yes
Video compression formats	H.264, H.265, M-JPEG
Video recording	Yes
Video streaming	Yes
