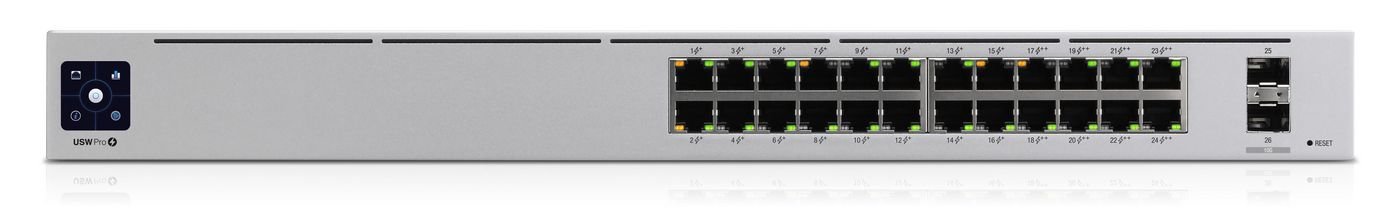

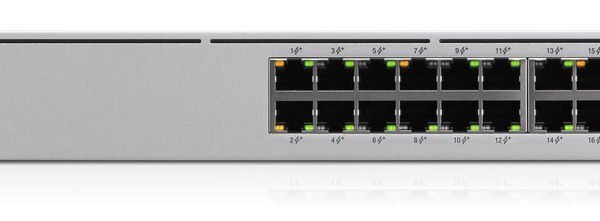

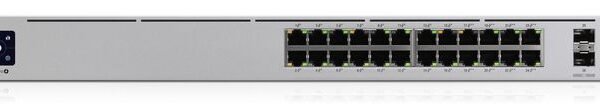

UniFi USW-Pro-24-POE Gen 2 UniFi UniFi Pro 24-Port PoE, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack

Name: UniFi USW-Pro-24-POE Gen 2 UniFi UniFi Pro 24-Port PoE, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack
Brand: Ubiquiti
SKU: USW-PRO-24-POE
Price: 618.77 GBP
Availability: InStock

£618.77

Excl.VAT

SKU: USW-PRO-24-POE Category: PoE Switches Brand: Ubiquiti

243 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

USW-Pro-24-POE Gen 2, AC/DC, Internal, 450W, (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+, 442.4 x 285.4 x 43.7 mm

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Data transmission

Forwarding rate	65.472 Mpps
Jumbo frames support	Yes
MAC address table	16000 entries
Packet buffer memory	2 MB
Static route	Yes
Switching capacity	88 Gbit/s
Throughput	44000 Mpps

Design

Certification	CE, FCC, IC
Display type	LCM
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Product colour	Silver
Rack mounting	Yes
Reset button	Yes

Management features

Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Switch type	Managed
System event log	Yes
Web-based management	Yes

Network

10G support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Cable types supported	Cat5
Ethernet LAN data rates	10, 100, 1000
Flow control support	Yes
Full duplex	Yes
IPv4 routes	64
Link aggregation	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Number of VLANs	1000
Port mirroring	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-5 - 40 °C

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	2
Power connector	AC-in jack
SFP+ module slots quantity	2

Power

AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	52 V
Input current	7.69 A
Number of power supply units	1
Power consumption (max)	450 W
Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	400 W

Security

Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP relay, DHCP server, DHCP snooping
IGMP snooping	Yes

Vendor information

Brand Name	Ubiquiti
Warranty	2 Year(s)
