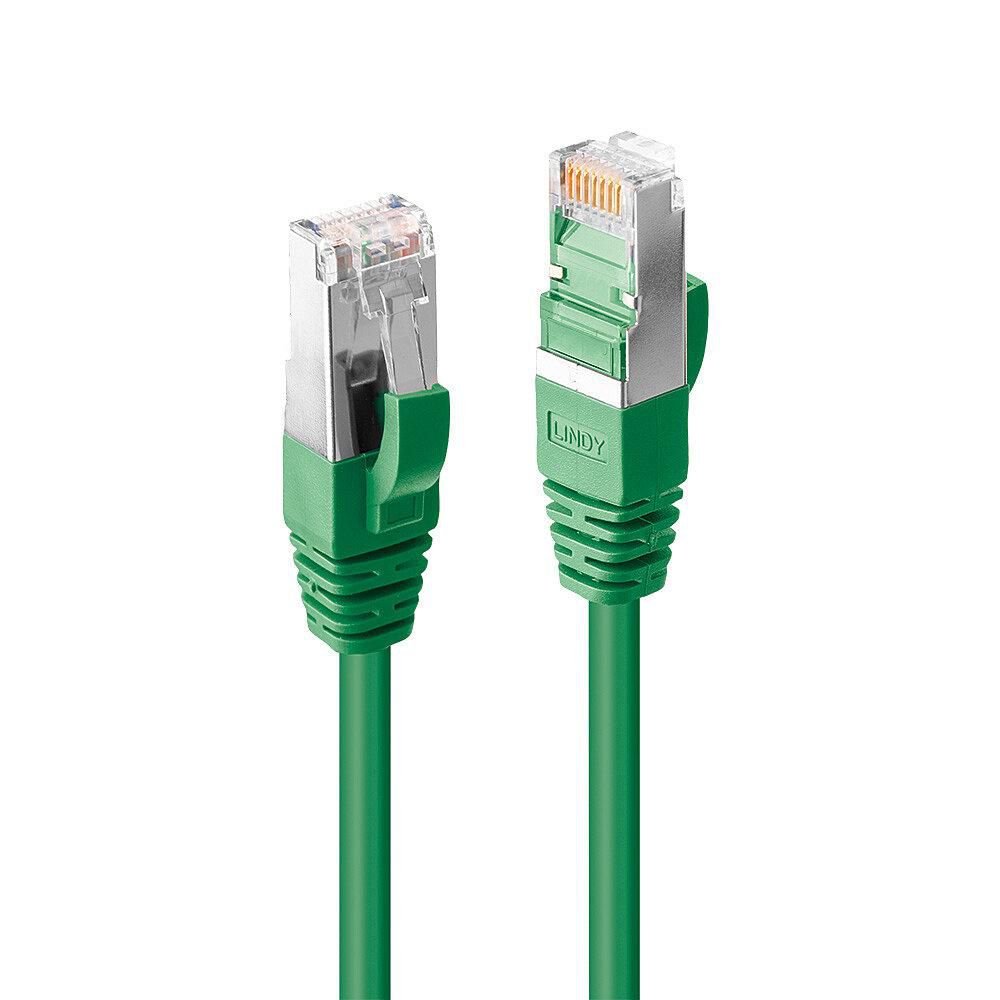

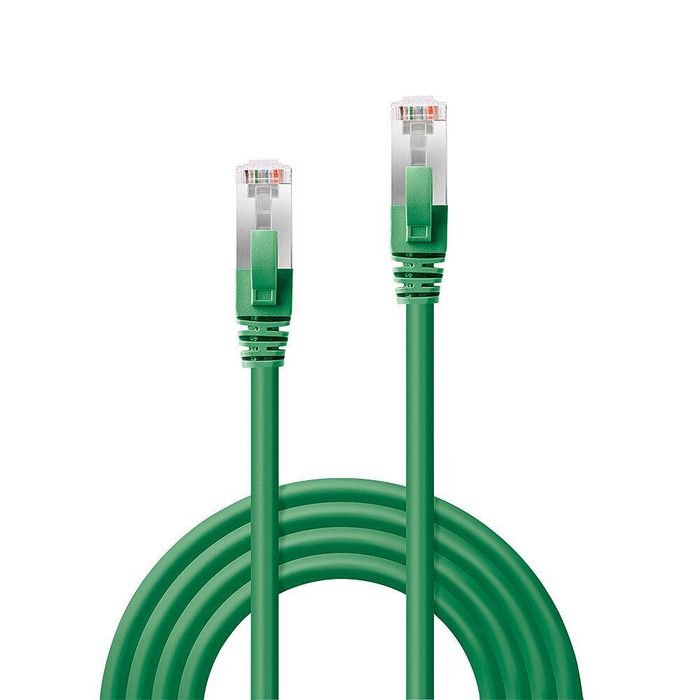

47684 networking cable Green 15 m Cat6a S/FTP (S-STP)

£24.10

Excl.VAT

SKU: 47684 Category: Brand:

4 in stock

Shipping & Delivery

  • Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

  • Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

15m Cat.6A S/FTP LSZH Cable, Green

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions

Certificates

CertificationRoHS, REACH

Features

AWG wire size27
Bend radius (min)7.2 cm
Cable length15 m
Cable shapeRound
Cable shieldingS/FTP (S-STP)
Cable standardCat6a
Cabling technology10GBase-T
Conductor materialCopper
Connector 1RJ45
Connector 1 form factorStraight
Connector 1 genderMale
Connector 2RJ45
Connector 2 form factorStraight
Connector 2 genderMale
Connector contacts platingNickel/Gold
Connector housing materialPolycarbonate (PC)
Connector shield materialAluminium
Connector shieldingYes
Frequency500 MHz
Jacket materialLow smoke zero halogen (LSZH)
Product colourGreen

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C

Packaging data

Package typePolybag

Technical details

Compliance certificatesREACH, RoHS
Doesn't containHalogen
Sustainability certificatesREACH, RoHS
Sustainability complianceYes

Vendor information

Brand NameLindy

Weight & dimensions

Connector 1 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Outer diameter6 mm
