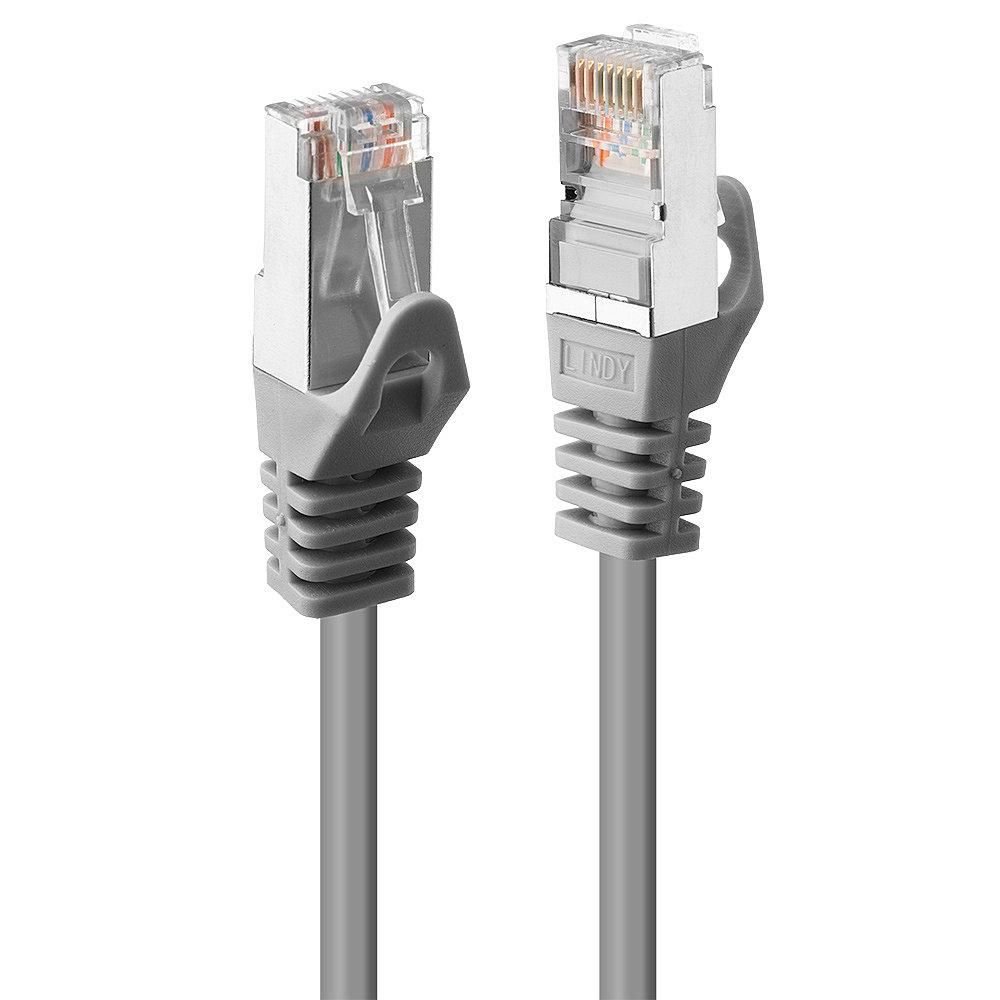

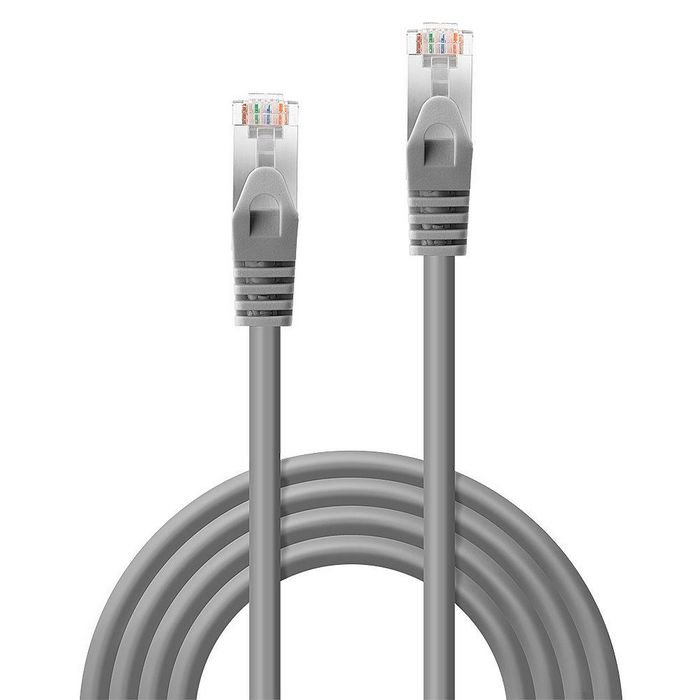

5m Cat.6 F/UTP Network Cable, Grey

Cat.6 F/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250Mhz in a shielded version with foil shielding (F/UTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m.

Certificates

CertificationRoHS, REACH, California Proposition 65

Features

AWG wire size26
Bend radius (min)7.2 cm
Cable length5 m
Cable shieldingF/UTP (FTP)
Cable standardCat6
Cabling technology10/100/1000Base-T(X)
Conductor materialCopper-Clad Aluminium (CCA)
Connector 1RJ45
Connector 1 genderMale
Connector 2RJ45
Connector 2 genderMale
Connector contacts platingNickel/Gold
Connector shield materialAluminium
Connector shieldingYes
Frequency250 MHz
Jacket materialPolyvinyl chloride (PVC)
Product colourGrey

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C

Packaging content

Quantity per pack1 pc(s)

Packaging data

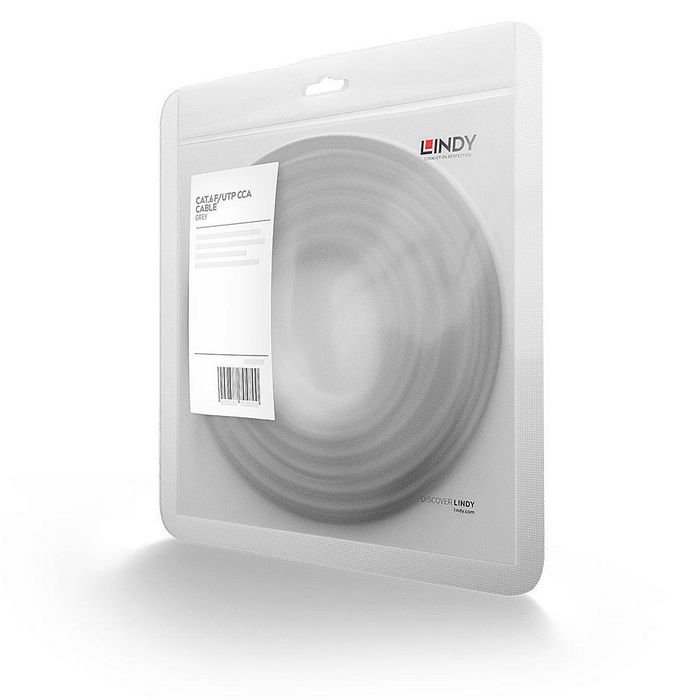

Package typePolybag

Vendor information

Brand NameLindy
Warranty10 Year(s)

Weight & dimensions

Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Outer diameter6 mm
