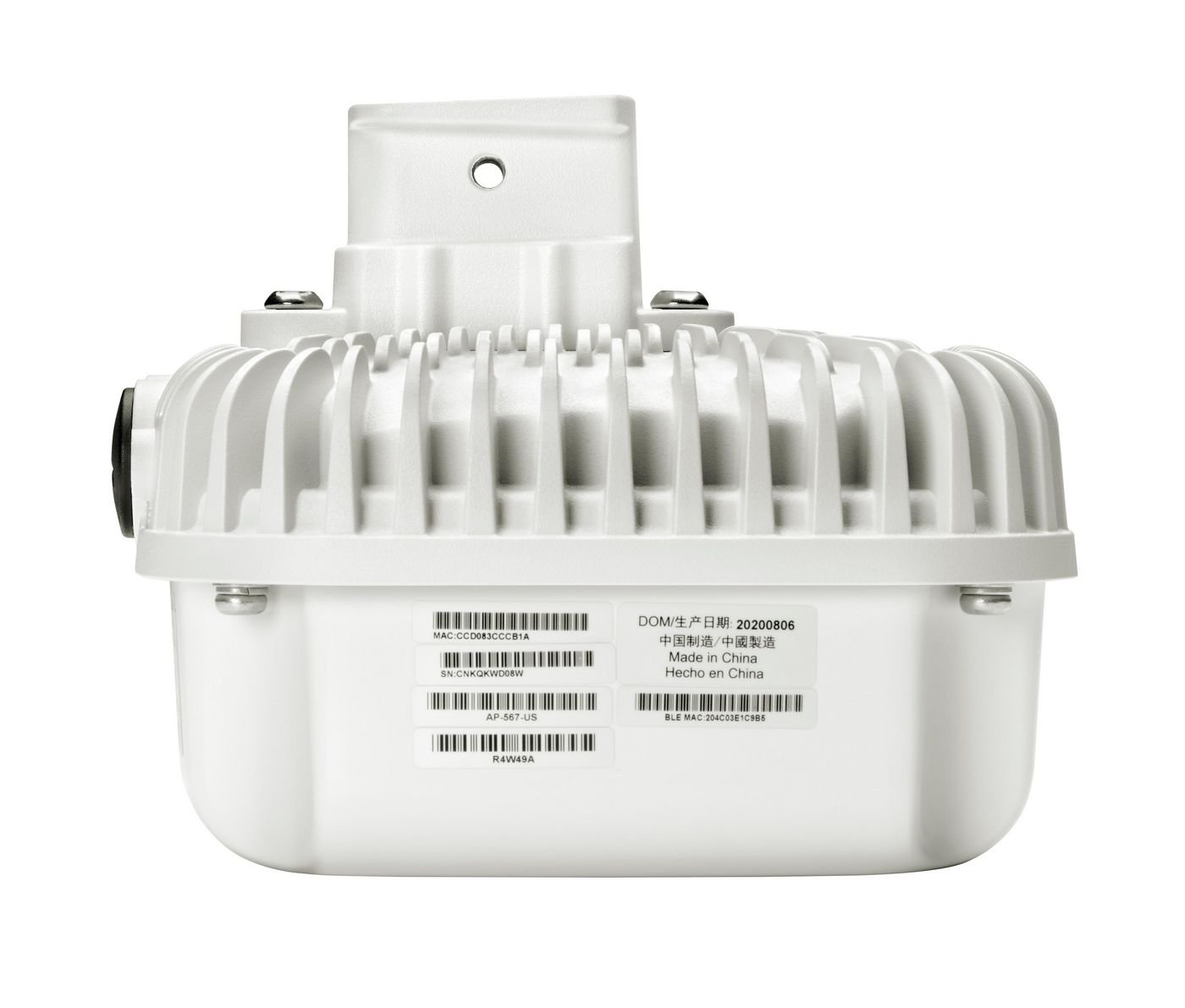

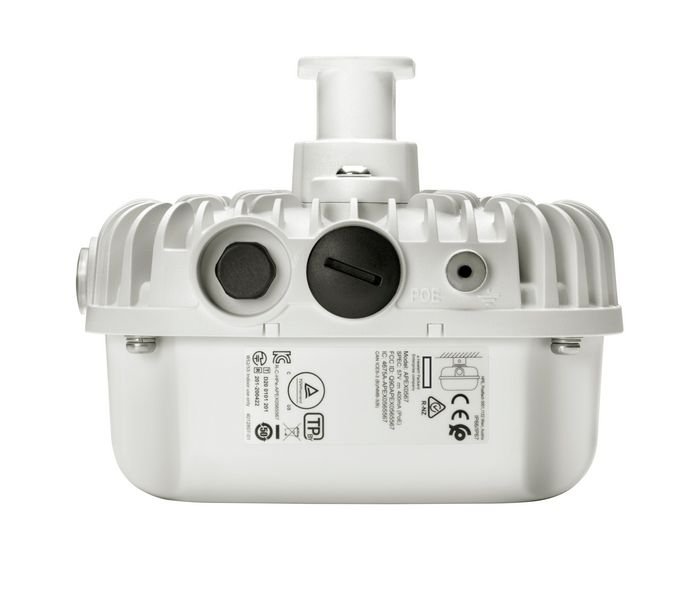

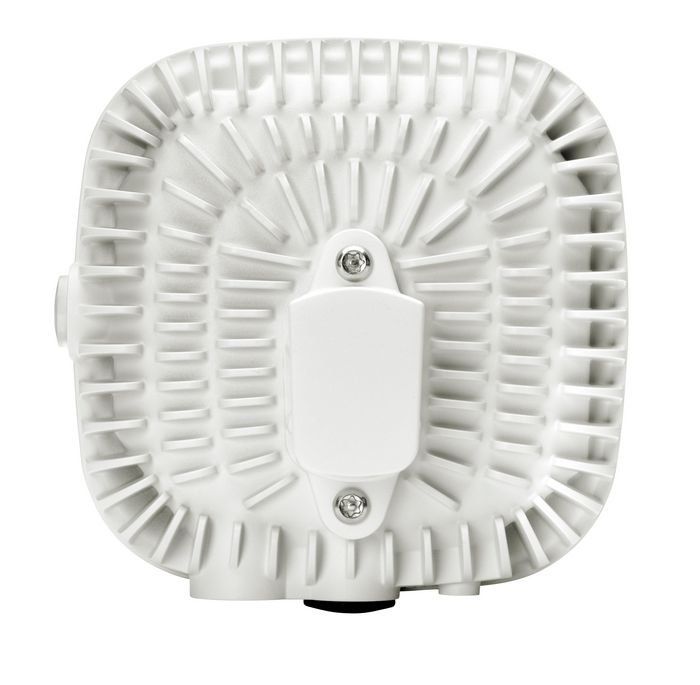

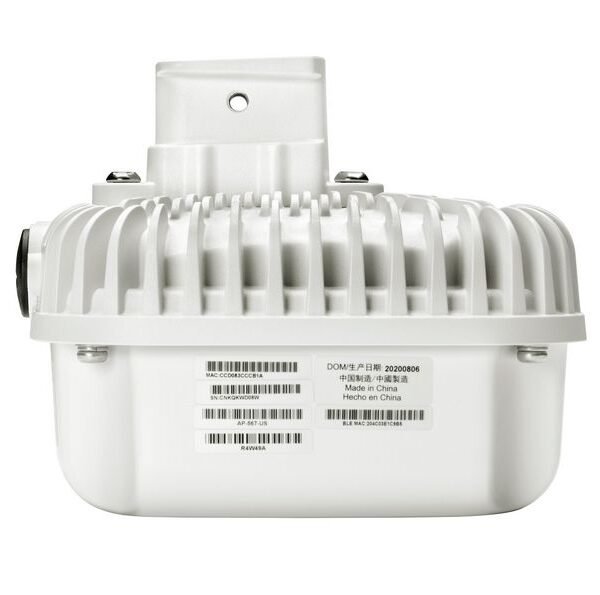

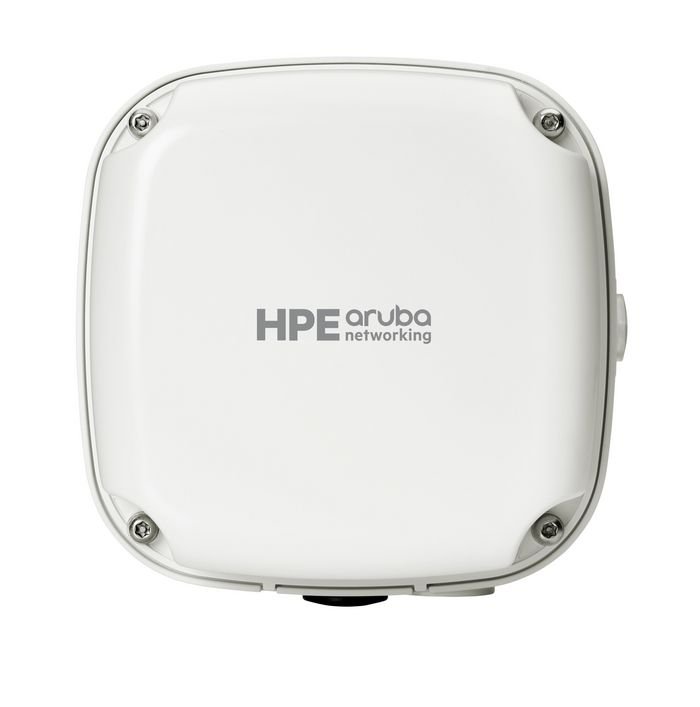

Aruba AP-565 (RW) 802.11ax Dual 2×2:2 Radio Integrated Omni Antenna Outdoor AP

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.

Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.

Antenna

Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antenna gain level (max)	5.4 dBi
Antenna type	Internal

Certificates

Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD)

Design

Placement	Pole, Wall
Product colour	White
Recommended usage	Outdoor

Features

2.4 GHz	Yes
5 GHz	Yes
Bluetooth	Yes
Bluetooth version	5.0
Ethernet LAN data rates	1000 Mbit/s
Frequency band	20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps GHz
MACsec support	No
MDI / DMI-X automatic switchover	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Modulation	1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Spread spectrum method	DSSS, OFDM, OFDMA

Operational conditions

Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Other features

I/O ports	E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)	2.27 lbs

Performance

Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB connector type	USB Type-C

Power

Power consumption (max)	15.6 W
Power over Ethernet (PoE)	Yes

Security

Security algorithms	WPA2, WPA3

Vendor information

Brand Name	Hewlett Packard Enterprise
Warranty	1 Year(s)
