Audio Extender Kit, with 12V/1A PSU EU plug

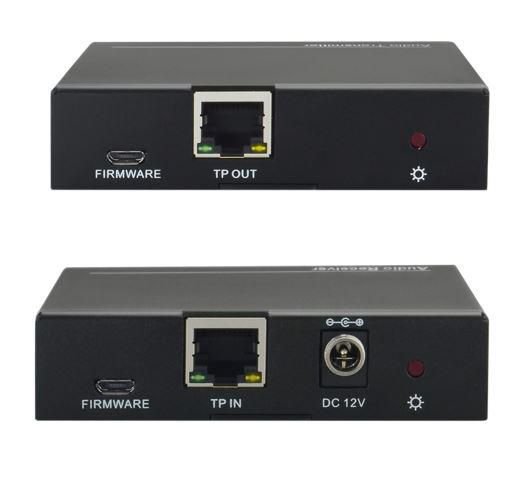

VLEXTA170 is an audio extender, including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.
It provides TOSLINK/COAX/STEREO audio inputs.
Fast delivery within 72 Hours
Audio Extender kit 100m .
£121.96
Excl.VAT
8 in stock
Shipping & Delivery
-
Standard delivery
Our courier will deliver to the specified address
3-4 Days
From £9.95
-
Express delivery
All heavy items above 25kg will be charged shipping cost as per actual
1-2 Days
From £14.95
Audio Extender Kit, with 12V/1A PSU EU plug
VLEXTA170 is an audio extender, including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.
It provides TOSLINK/COAX/STEREO audio inputs.
Features
| Audio formats supported | DTS, PCM |
|---|---|
| Audio output channels | 2.0 channels |
| Cable types supported | Cat5e, Cat6 |
| HDCP & EDID bypass | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
Packaging content
| AC adapter included | Yes |
|---|---|
| IR blaster included | No |
| IR receiver included | No |
| Included power plug types | EU, GB |
| Mounting brackets included | Yes |
Ports & interfaces
| 3.5 mm (1/8-inch) in | Yes |
|---|---|
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| Audio RCA outputs | 1 |
| Audio input | 3 |
| Audio output | 3 |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Digital audio coaxial out | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
Power
| AC input frequency | 50 / 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage (receiver) | 12 V |
| Operating voltage (transmitter) | 12 V |
| Output current | 1 A |
| Power consumption (receiver) (max) | 2.5 W |
| Power consumption (transmitter) (max) | 2.5 W |
Technical details
| Audio support | Yes |
|---|
Vendor information
| Brand Name | Vivolink |
|---|---|
| Warranty | 5 Year(s) |
Weight & dimensions
| Receiver dimensions (WxDxH) | 88 x 80 x 21.5 mm |
|---|---|
| Transmitter dimensions (WxDxH) | 88 x 80 x 21.5 mm |
