AV over IP 4K60Hz JPEG2000 Video wall / Matrix – Decoder

Name: AV over IP 4K60Hz JPEG2000 Video wall / Matrix - Decoder
Brand: Vivolink
SKU: VLVWIP2000-CTL
Price: 258.64 GBP
Availability: InStock

£258.64

Excl.VAT

SKU: VLVWIP2000-CTL Category: KVM Extenders Brand: Vivolink

3 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

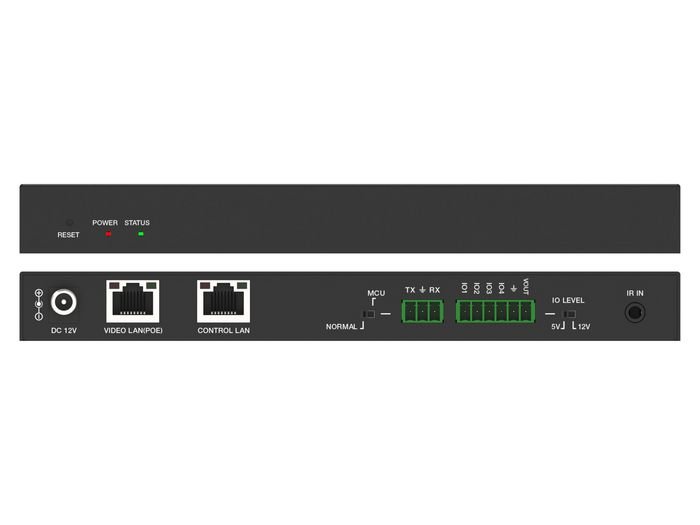

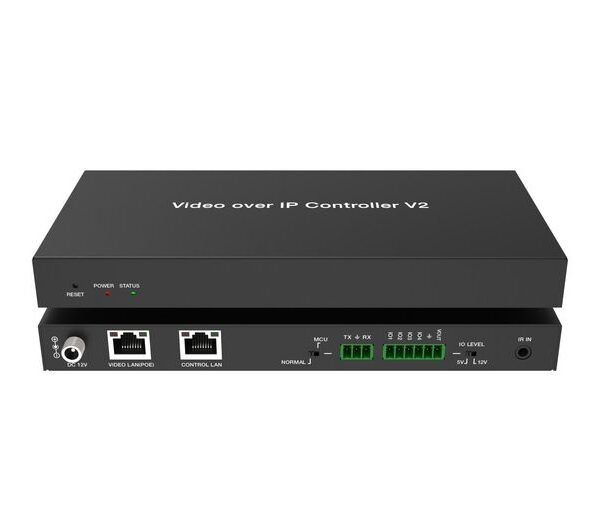

Video over IP Controller for VLVWIP2000-ENC and VLVWIP2000-DEC

Vivolink VLVWIP2000-CTL is used to control and manage JPEG2000 IP products. It supports dual 100M network ports, which can realize dual network isolation of Control network and Multicast video distribution network.
Built-in Web GUI, TCP and RS-232 control are supported. It supports POE function and wide-band 12V IR signal receiving. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios.

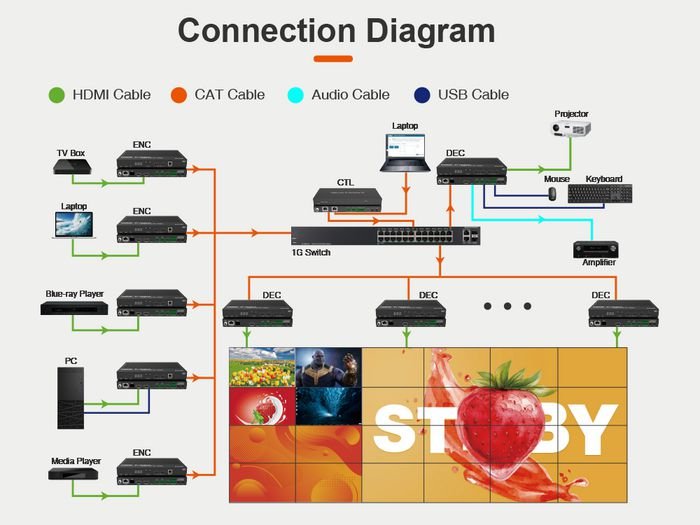

The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

Features

Audio support	Yes
Cable types supported	Cat6a
Connectivity technology	Wired
Easy to install	Yes
LED indicators	Link, Power
Plug and Play	Yes
Product colour	Black

Operational conditions

Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-25 - 70 °C

Packaging content

AC adapter included	No
Manual	Yes
Mounting bracket(s) included	Yes
Quick installation guide	Yes

Ports & interfaces

HDMI version	1.4b/2.0b
RJ-45 ports quantity	2
RS-232 ports	1
Remote (IR) input	1

Power

AC input voltage	100 - 240 V
DC voltage	12 V
DC-in jack	Yes
Input current	2,5 A
Power consumption (receiver) (max)	30 W

Receiver

RJ-45 ports quantity (receiver)	1
Receiver USB Type-A ports quantity	4
Receiver local video port type	HDMI
Receiver local video ports quantity	1

Technical details

Dimensions (WxDxH)	205 x 140 x 26 mm
Maximum resolution	4096x2160 pixels
Video in	HDMI
Weight	265 g

Transmitter

Transmitter local keyboard/mouse port type	USB

Vendor information

Brand Name	Vivolink
Warranty	3 Year(s)
