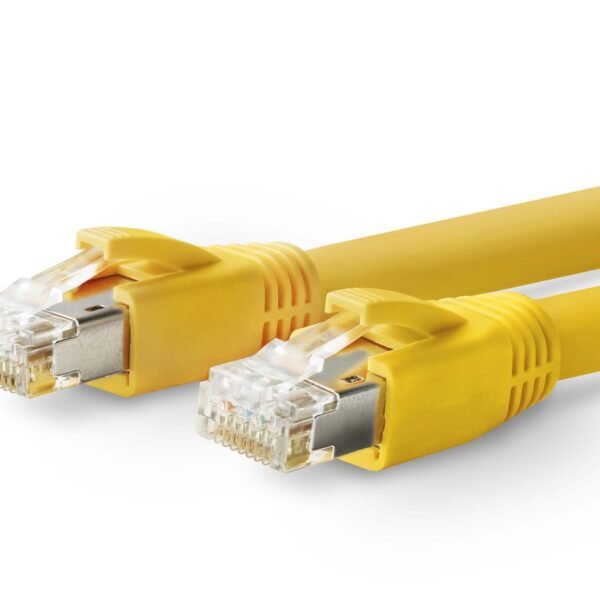

CAT CABLE FOR HDBASET .

Cat 6a, F/FTP, 40m, 4-pair, 23 AWG, LSZH, HDBaseT, Yellow

CAT cable for HDBaseT RJ45 /FTP CAT6A 4PR 23AWG installation. Low smoke halogeen free jacket

Vivolink network cables are designed specifically for HDBaseT transmission. This means that you will get a robust and stable installation.

Cables are assembled with RJ45 connectors in both ends, this will ensures perfect termination in connector and easy installation.

Solid core wires in pure copper 23AWG ensures rich power perfor mance even on long lengths.
The individual and outer shielding in aluminum foil protects signal from any disturbance and optimal signal performance.

The cable jacket is produced in LSZH low smoke, zero halogen material so it can be used for fixed installations in buildings.

– F/FTP CAT6A 4PR 23AWG TESTED TO 550MHz
– Outer jacket: LSZH 0D ¯8mm +/- 0.2mm

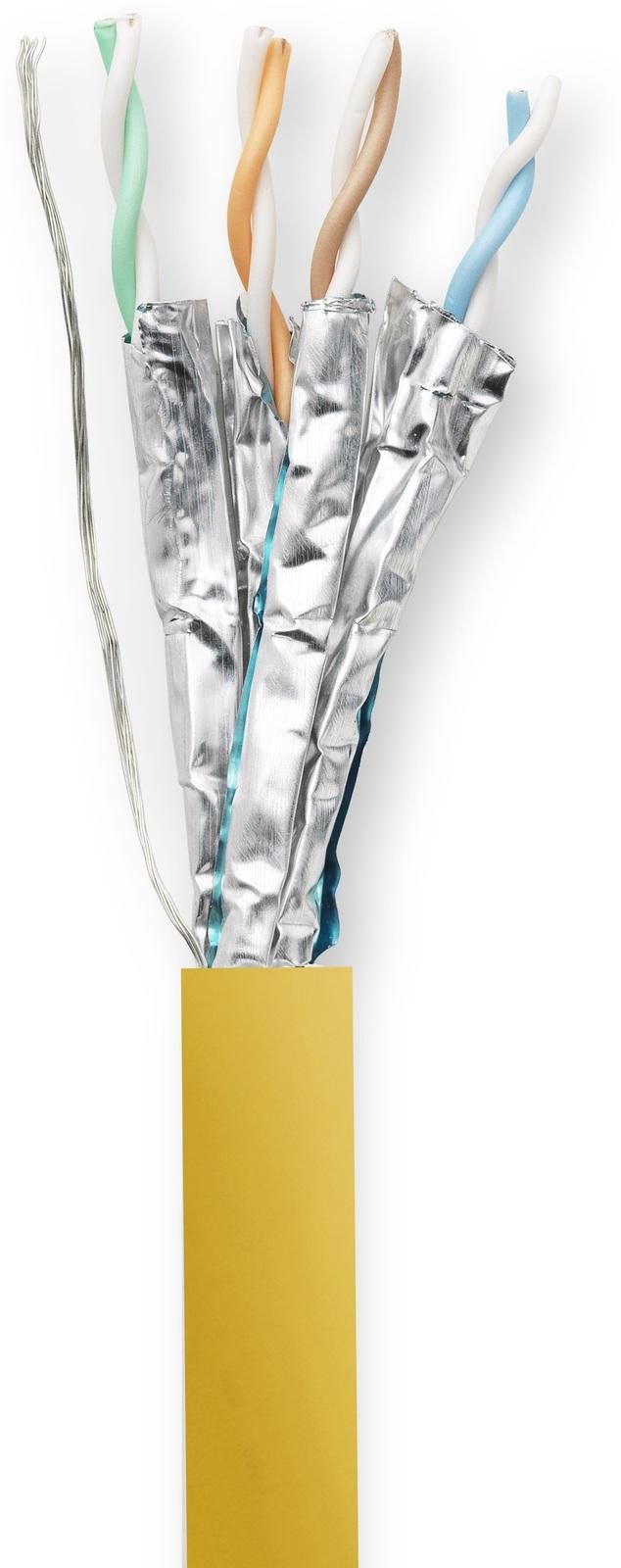

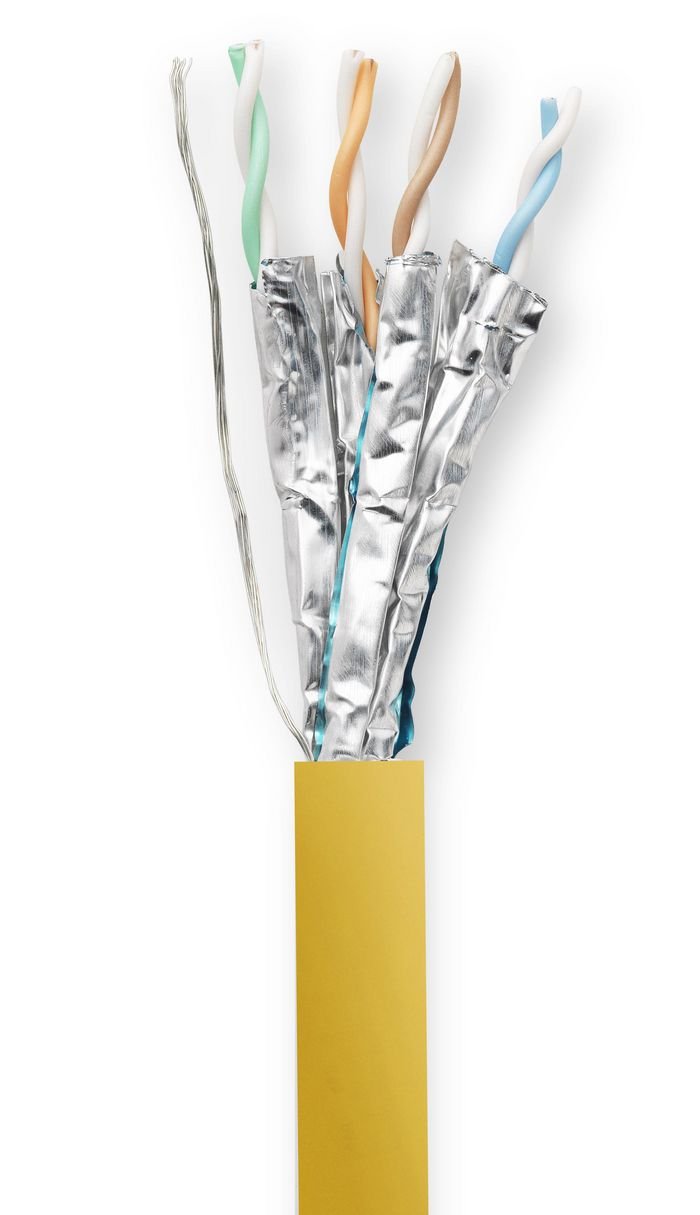

– Shielding: Aluminium foil (double shielding)
– Inner conductor: Pure copper diameter 0.573mm
– Drain wire: Pure copper 0.16mm
