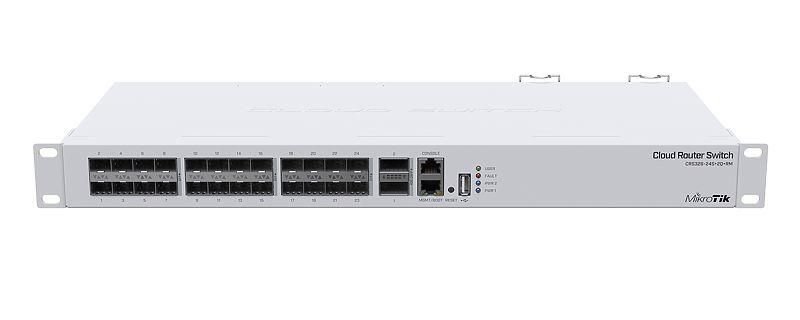

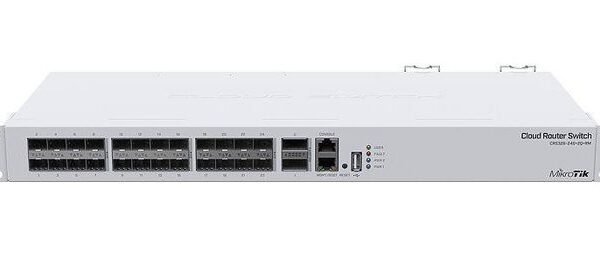

Cloud Router Switch W OS L5 1U rackmount enclosure

£477.02

Excl.VAT

SKU: CRS326-24S+2Q+RM Category: Brand:

9 in stock

Shipping & Delivery

  • Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

  • Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

1 x 10/100 Ethernet port, 24 x SFP+, 2 x 40G QSFP+, Serial port RJ45, 1 x USB, 443 x 183 x 44 mm

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Data transmission

Forwarding rate252 Mpps
Switching capacity640 Gbit/s
Throughput320 Mpps

Design

Form factor1U
LED indicatorsYes
Product colourWhite
Rack mountingYes
Reset buttonYes

Management features

Switch layerL3
Switch typeManaged

Network

10G supportYes

Operational conditions

Operating temperature (T-T)-20 - 60 °C

Packaging content

Cables includedAC
Rack mount kitYes

Performance

Built-in processorYes
Flash memory16 MB
Internal memory64 MB
Memory typeRAM
Processor frequency650 MHz

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity1
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Console portRJ-45
Installed QSFP+ modules quantity2
Installed SFP+ modules quantity24
Power connectorAC-in jack
QSFP+ module slots quantity2
SFP+ module slots quantity24
USB 2.0 ports quantity1

Power

AC input voltage100 - 240 V
Power consumption (max)69 W
Redundant power supply (RPS) supportYes

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Vendor information

Brand NameMikroTik
Warranty15 Month(s)
