176 Gbps, 48 x 10/100/1000 Ports, 4 SFP+, PoE, 1U, black
cnMatrix Switch EX2052R-P
176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports
Back to products
ARUBA 6100 24G 4SFP+ SWITCH Aruba 6100 24G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Original price was: £3,292.91.£913.04Current price is: £913.04.
Fast delivery within 72 Hours

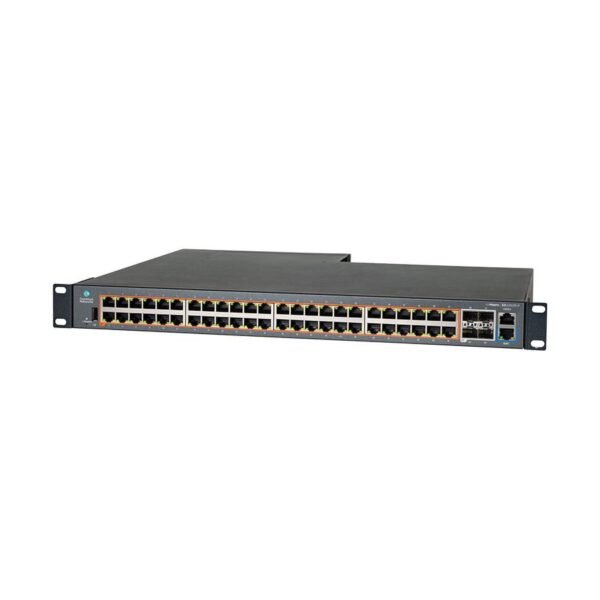

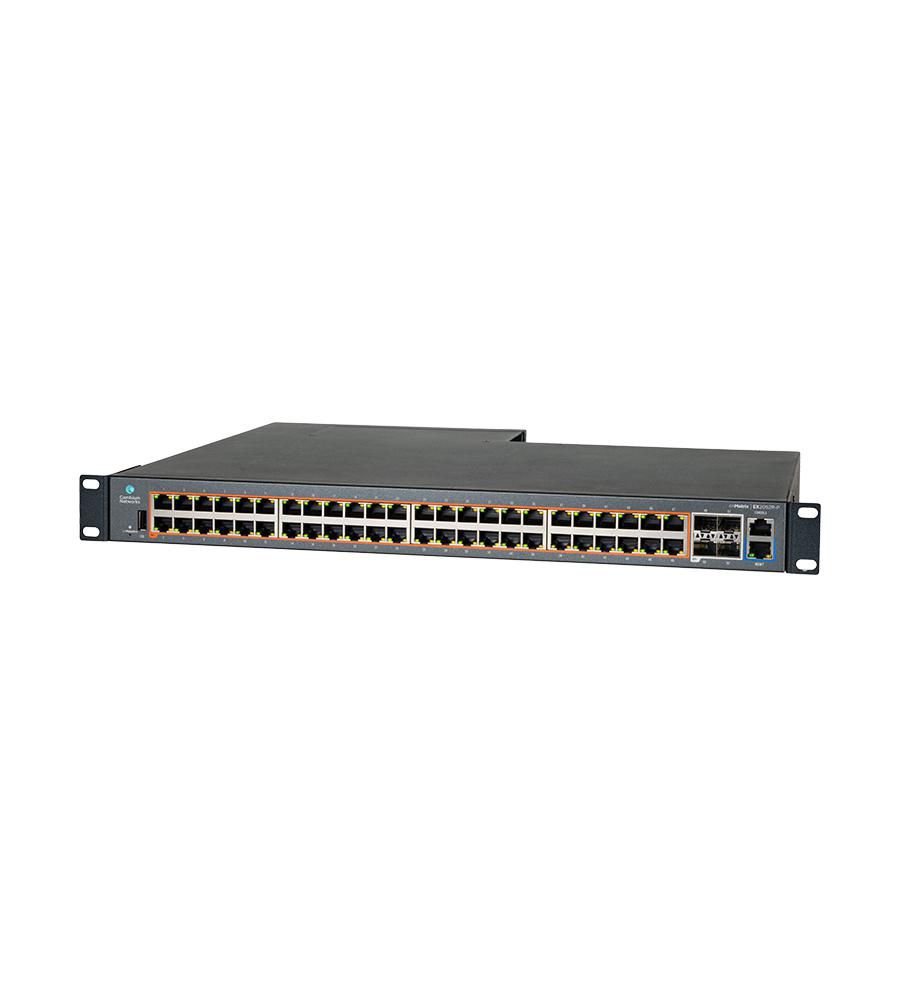

cnMatrix EX2052R-P, Intelligent Ethernet PoE Switch, 48 1G and 4 SFP+, No CRPS – no pwr cord
£1,917.73
Excl.VAT
3 in stock
Shipping & Delivery
-
Standard delivery
Our courier will deliver to the specified address
3-4 Days
From £9.95
-
Express delivery
All heavy items above 25kg will be charged shipping cost as per actual
1-2 Days
From £14.95
176 Gbps, 48 x 10/100/1000 Ports, 4 SFP+, PoE, 1U, black
cnMatrix Switch EX2052R-P
176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports
Data transmission
| Forwarding rate | 120 Mpps |
|---|---|
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Throughput | 176 Gbit/s |
Design
| Form factor | 1U |
|---|---|
| LED indicators | Activity, Link, PoE |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| Switch type | Managed |
Multicast features
| Multicast support | Yes |
|---|
Network
| 10G support | No |
|---|---|
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of VLANs | 4000 |
| Policy-based routing | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Built-in processor | Yes |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 202977 h |
| Memory type | DDR-SDRAM |
| Processor frequency | 800 MHz |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
Power
| Power source | AC |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 54 V |
Security
| BPDU filtering/protection | Yes |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Cambium Networks |
|---|---|
| Warranty | 5 Year(s) |
