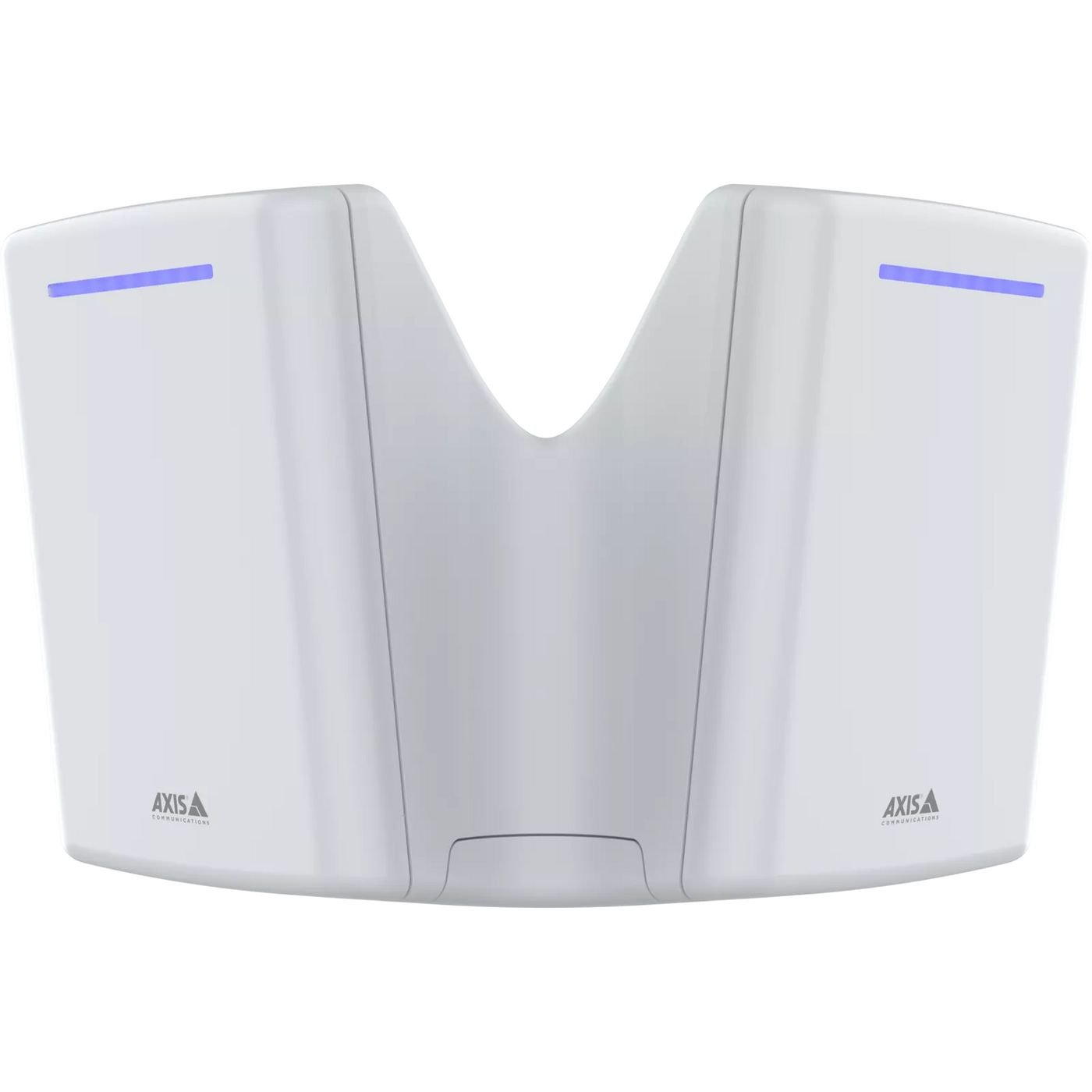

D2122-VE Radar White

D2122-VE Radar White

AXIS D2122-VE offers a wide 180° horizontal field of detection and delivers reliable detection and AI-powered classification 24/7. Unique box-shaped detection and recognition zones simplify coverage planning and system design. It works as a standalone device or can be integrated with selected ARTPEC-9 PTZ cameras, adding an extra layer of protection and enabling radar-video fusion between the two devices. This multi-layered approach results in maximum efficiency with more enriched data and better decision-making tools for security guards and operating personnel. This radar uses the same mounting interface as Axis PTZ cameras for easy installation. And, with support for PoE out, there’s no additional cable drop needed.
AXIS D2122-VE frequency operation band 24.05–24.25 GHz, FMCW, for wall mounting outdoor. With built-in analytics including classification of humans and vehicles. Human recognition area 20 000 square meters/215 000 square feet and vehicle detection area of 39400 square meters/ 422 000 square feet and Human recognition distance up to 140 meters/460 feet, for vehicles up to 200 m/ 650 feet. Open API for software integration, microSD/SDHC memory card slot for edge storage, 60W PoE out to power an additional device. Typical power consumption 9W, when 60W PoE Out to power an additional device, then POE In (IEEE 802.3bt Type 4 Class 8) is required. IP66/IP67, IK09/IK10, NEMA 250 Type 4X, and NEMA TS 2. Operating conditions -40°C to 60°C (-40°F to 140°F).
