DS70-810BL2, Full Motion Desk Monitor Arm For 17-32″ Screens – Black

£160.55

Excl.VAT

SKU: DS70-810BL2 Category: Brand:

4 in stock

Shipping & Delivery

  • Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

  • Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

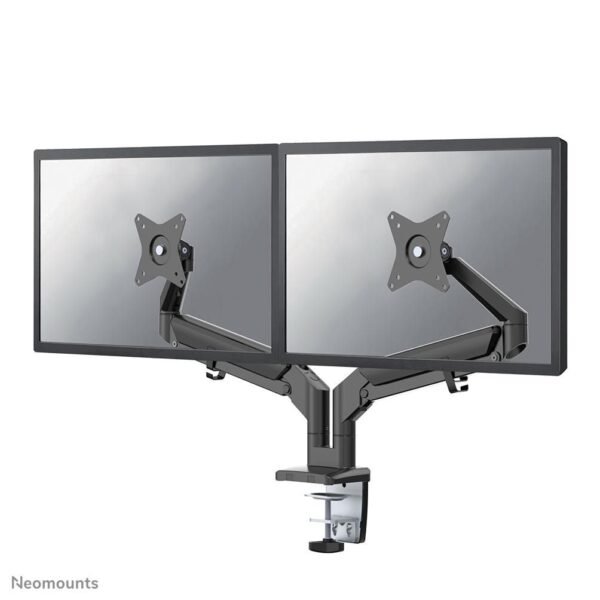

DS70-810Bl2 Full Motion Monitor Desk Mount For 17-32″ Screens – Black

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32″ with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

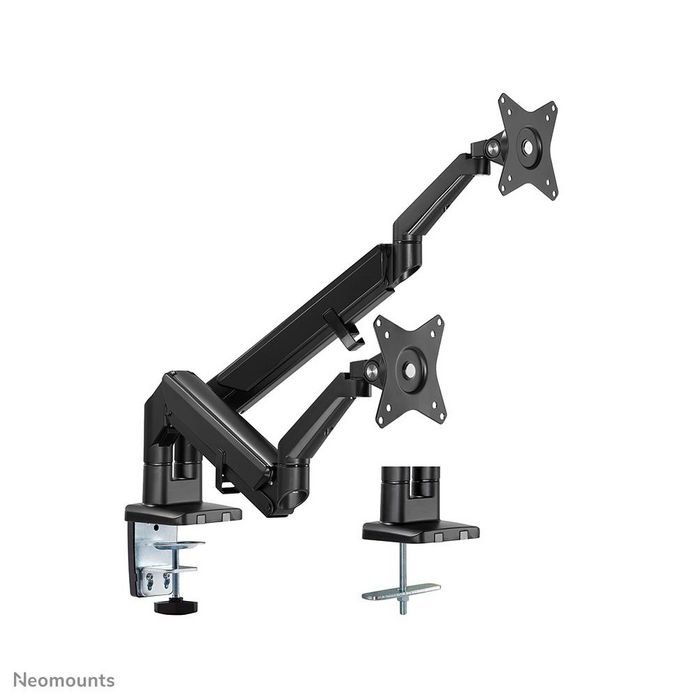

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Design

Housing materialSteel
OrientationLandscape/Portrait
Product colourBlack

Ergonomics

Adjustable depthYes
Angle of rotation360 °
Cable managementYes
Depth adjustment range0 - 490 mm
Height adjustmentYes
Height adjustment range265 - 550 mm
Height adjustment typeGas spring
Pivot angle-180 - 180 °
RotatingYes
Swivel angle range-90 - 90 °
SwivellingYes
Tilt adjustmentYes
Tilt angle range-45 - 45 °

Logistics data

Master (outer) case gross weight24600 g
Master (outer) case height30.5 cm
Master (outer) case length41 cm
Master (outer) case net weight21000 g
Master (outer) case width55 cm
Products per master (outer) case4 pc(s)
Products per pallet (EU)72 pc(s)

Mounting

Desk thickness (max)8.5 cm
Desk thickness (min)1 cm
Maximum VESA mount100 x 100 mm
Maximum screen size32 "
Maximum weight capacity9 kg
Maximum weight capacity (per display)9 kg
Minimum VESA mount75 x 75 mm
Minimum screen size17 "
MountingClamp/Grommet
Mounting typeDesk
Number of displays supported2
Panel mounting interface100 x 100, 75 x 75

Other features

Minimum weight1 kg
Width adjustment range0 - 1070 mm

Packaging data

Quantity per pack1 pc(s)

Vendor information

Brand NameNeomounts
Warranty5 Year(s)

Weight & dimensions

Package net weight6000 g
