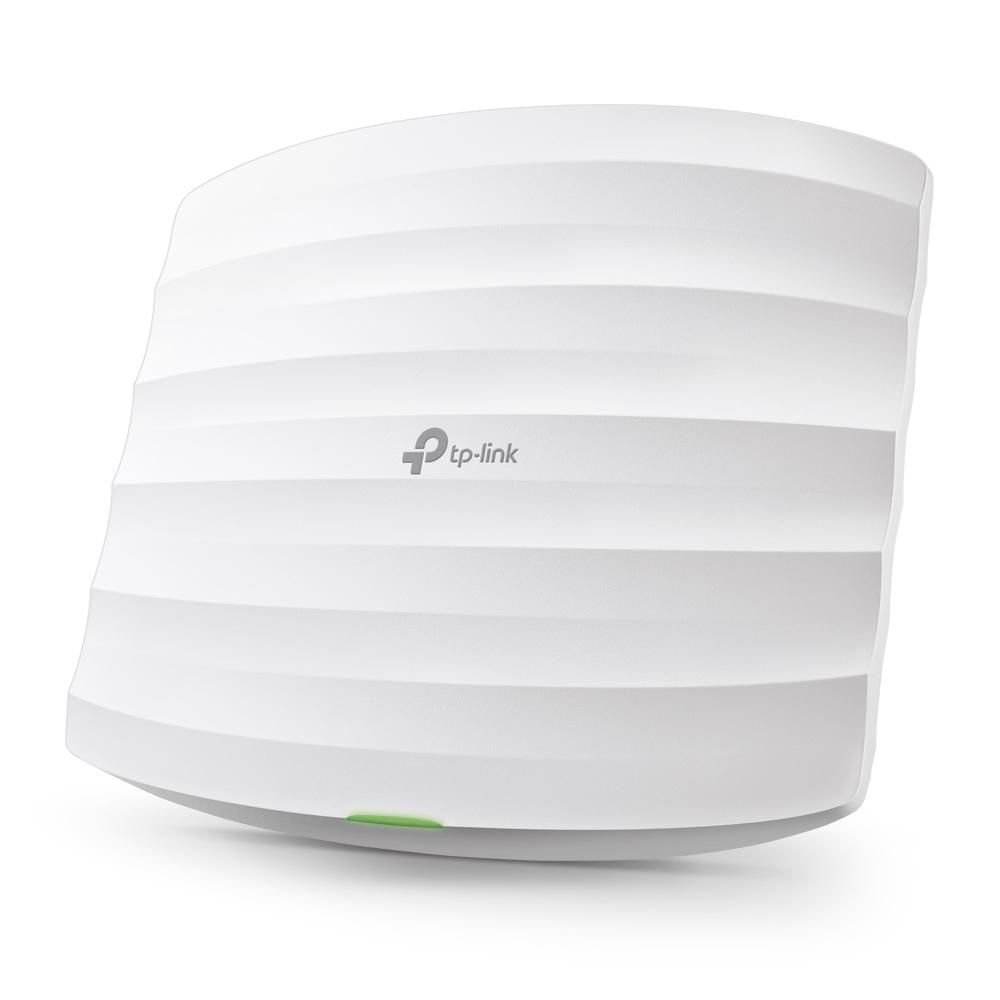

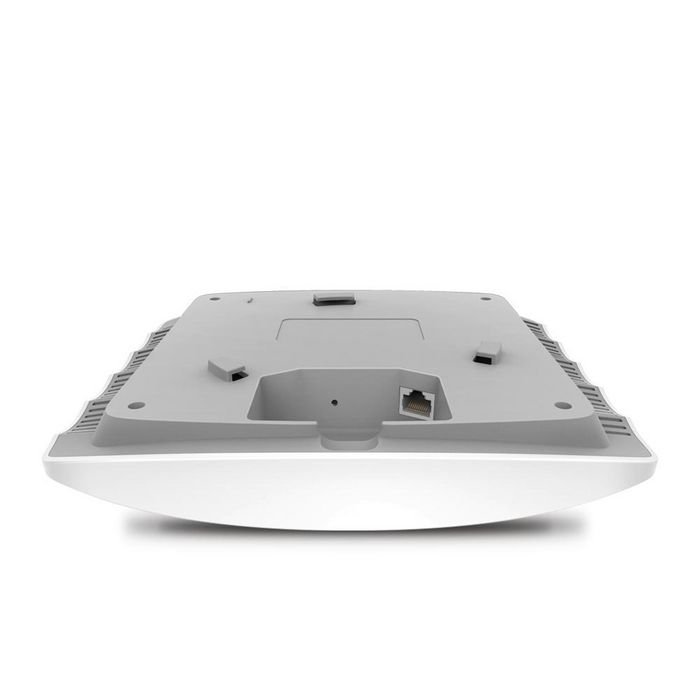

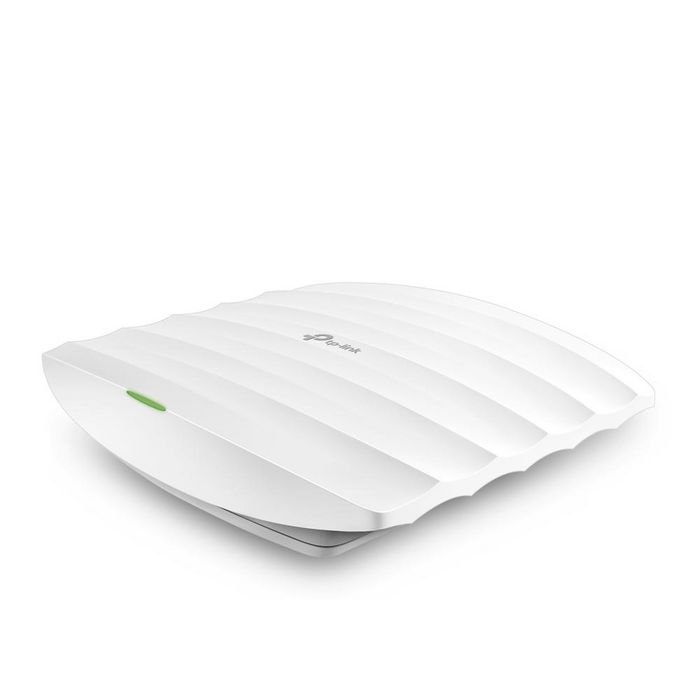

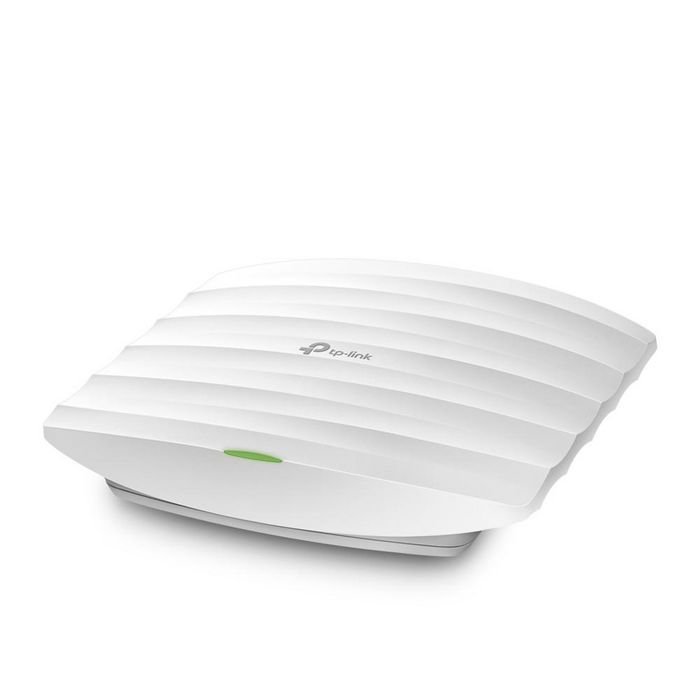

EAP225 EAP225, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, White, Portable router

Name: EAP225 EAP225, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, White, Portable router
Brand: Omada
SKU: EAP225
Price: 69.30 GBP
Availability: InStock

£69.30

Excl.VAT

SKU: EAP225 Category: Wireless Access Points Brand: Omada

5 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

802.3af/at PoE, 12.6W, 2.4GHz: 4dBi x 3, 5GHz: 5dBi x 2, 2.4GHz and 5GHz, FCC, RoHS

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
– Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Antenna

Antenna design	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antenna gain level (max)	5 dBi
Antenna type	Internal
Antennas quantity	5
Transmit power	CE:≤20dBm(2.4GHz,EIRP), ≤23dBm(5GHz,EIRP), FCC:≤24dBm(2.4GHz), ≤22dBm(5GHz) dBmW

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Design

Cable lock slot	Yes
Indication light	Yes
LED indicators	Power, WLAN
On/off switch	Yes
Placement	Ceiling, Wall
Product colour	White
Product type	Portable router
Reset button	Yes
Wall mountable	Yes

Features

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Airtime Fairness (ATF)	Yes
Band steering	Yes
BeamForming	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000
MIMO	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate	1350 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Quality of Service (QoS) support	Yes
Rate limiting	Yes
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	24 dBm
VLAN support	Yes
Virtual LAN features	VLAN mapping
Wi-Fi Multimedia (WMM)/(WME)	Yes

Management features

Syslog	Yes
Web-based management	Yes

Mobile network

3G	No
4G	No
Mobile network generation	4G
SIM card slot	No

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C

Packaging content

AC adapter included	Yes
Manual	Yes
Mounting kit	Yes
Number of products included	1 pc(s)
PoE adapter included	Yes
Quantity per pack	1 pc(s)
Quick installation guide	Yes
Quick start guide	Yes

Packaging data

Package type	Box

Performance

Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Ports & interfaces

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Memory card slot(s)	No
USB 2.0 ports quantity	0
USB port	No

Power

Output current	1.5 A
Output voltage	12 V
Power consumption (typical)	10.15 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Power source type	AC
Power supply	10.15 W

Security

Access Control List (ACL)	Yes
Guest access	Yes
MAC address filtering	Yes
Number of SSID supported	16
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	Multiple SSIDs

Sustainability

Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes

System requirements

Linux operating systems supported	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP

Vendor information

Brand Name	Omada
Warranty	5 Year(s)

WAN connection

3G/4G USB modem compatibility	No
DSL WAN	No
Ethernet WAN	Yes

Wireless LAN features

Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
