VL120016R is a mini-size HDBaseT Extender receiver, supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.
Note:
Not compatable with HDBaseT splitter VLHDBSP1X4V2

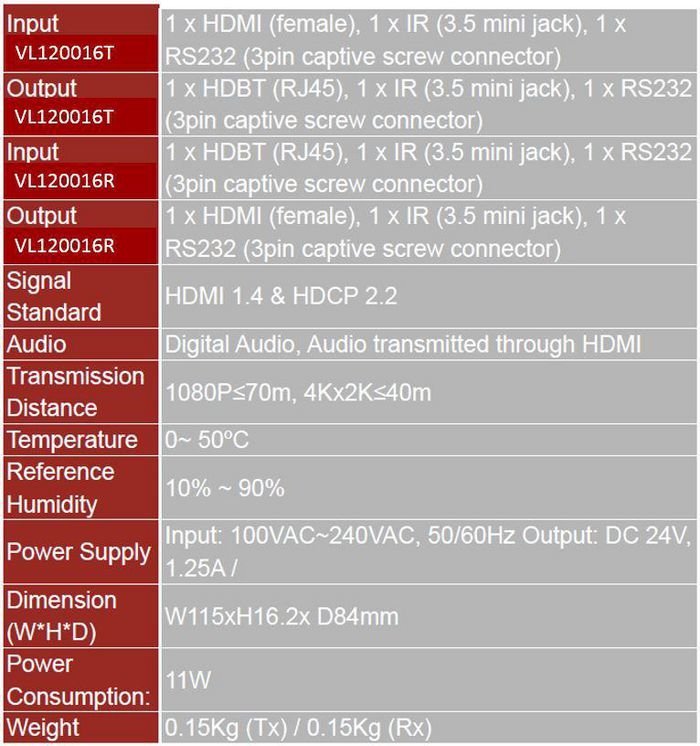

| 3D | Yes |
|---|---|
| Bandwidth | 10.2 Gbit/s |
| CEC pass-through | Yes |
| Cable types supported | Cat5e, Cat6 |
| Consumer Electronics Control (CEC) support | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| RS-232 pass-through | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| Type | AV receiver |
| Wall mountable | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| AC adapter included | Yes |
|---|---|
| IR blaster included | No |
| IR receiver included | No |
| Included power plug types | EU, GB |
| Mounting brackets included | Yes |
| 3.5 mm (1/8-inch) in | Yes |
|---|---|
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| AC input frequency | 50 / 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage | 24 V |
| Output current | 1.25 A |
| Power consumption (receiver) (max) | 11 W |
| Power over Ethernet (PoE) | Yes |
| Audio support | Yes |
|---|
| Brand Name | Vivolink |
|---|---|
| Warranty | 5 Year(s) |
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
VL120016R is a mini-size HDBaseT Extender receiver, supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.
Note:
Not compatable with HDBaseT splitter VLHDBSP1X4V2
