M’BAND 4G/5G 4×4 MIMO DESK MNT ANT 2m SMA(m)

4G/5G CAT18/20 LTE, 4×4 MiMO, <5dBi, 50 Ohm, 4x SMA, 185 x 184 x 23 mm

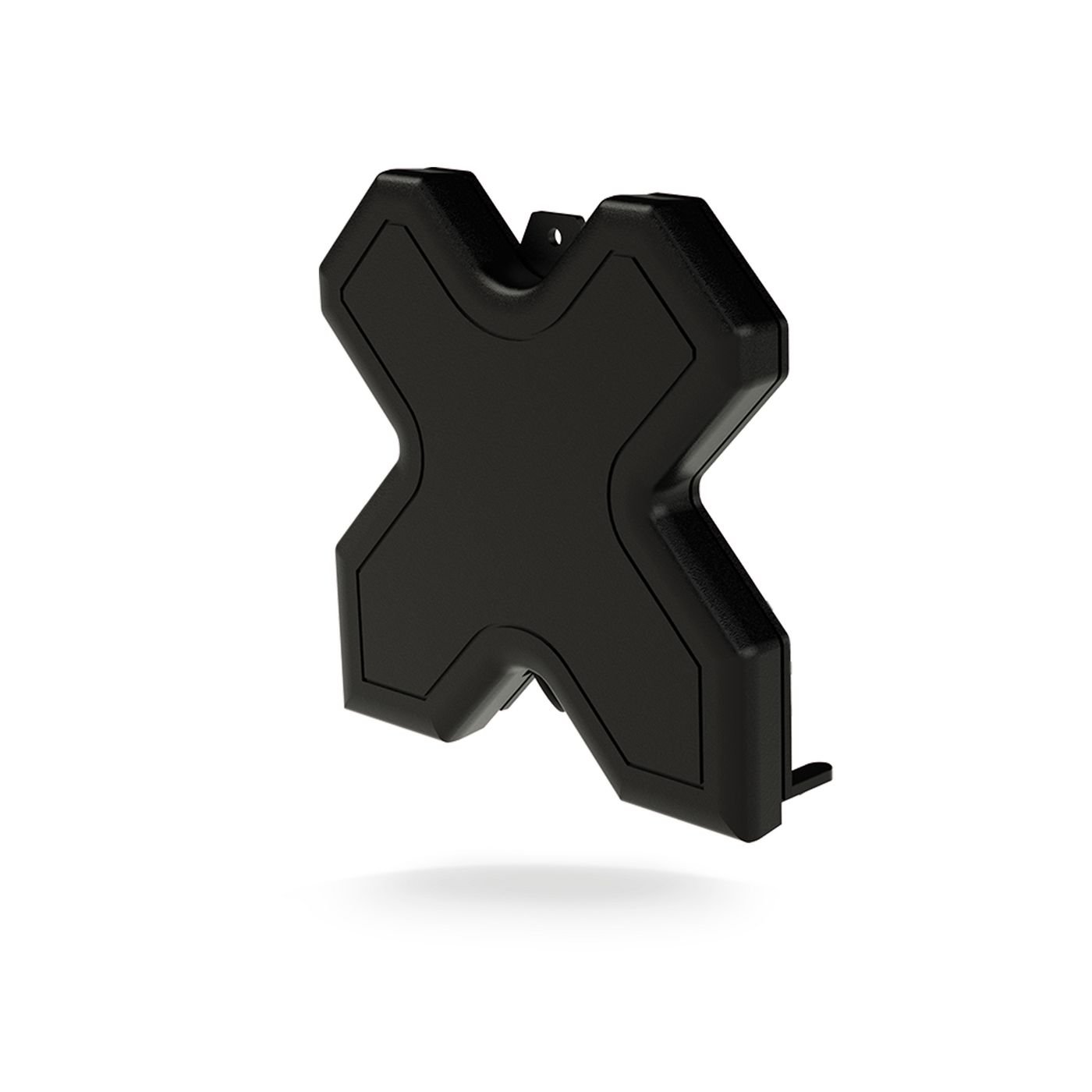

The DMM4 portable antenna is an innovative antenna design which provides 4×4 MiMo function for 4G/5G with fallback to 3G/2G. The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4×4 MiMo function. It can also provide 2x 2×2 MiMo function for a router with dual modems, each requiring a 2×2 antenna system. The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors. The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
