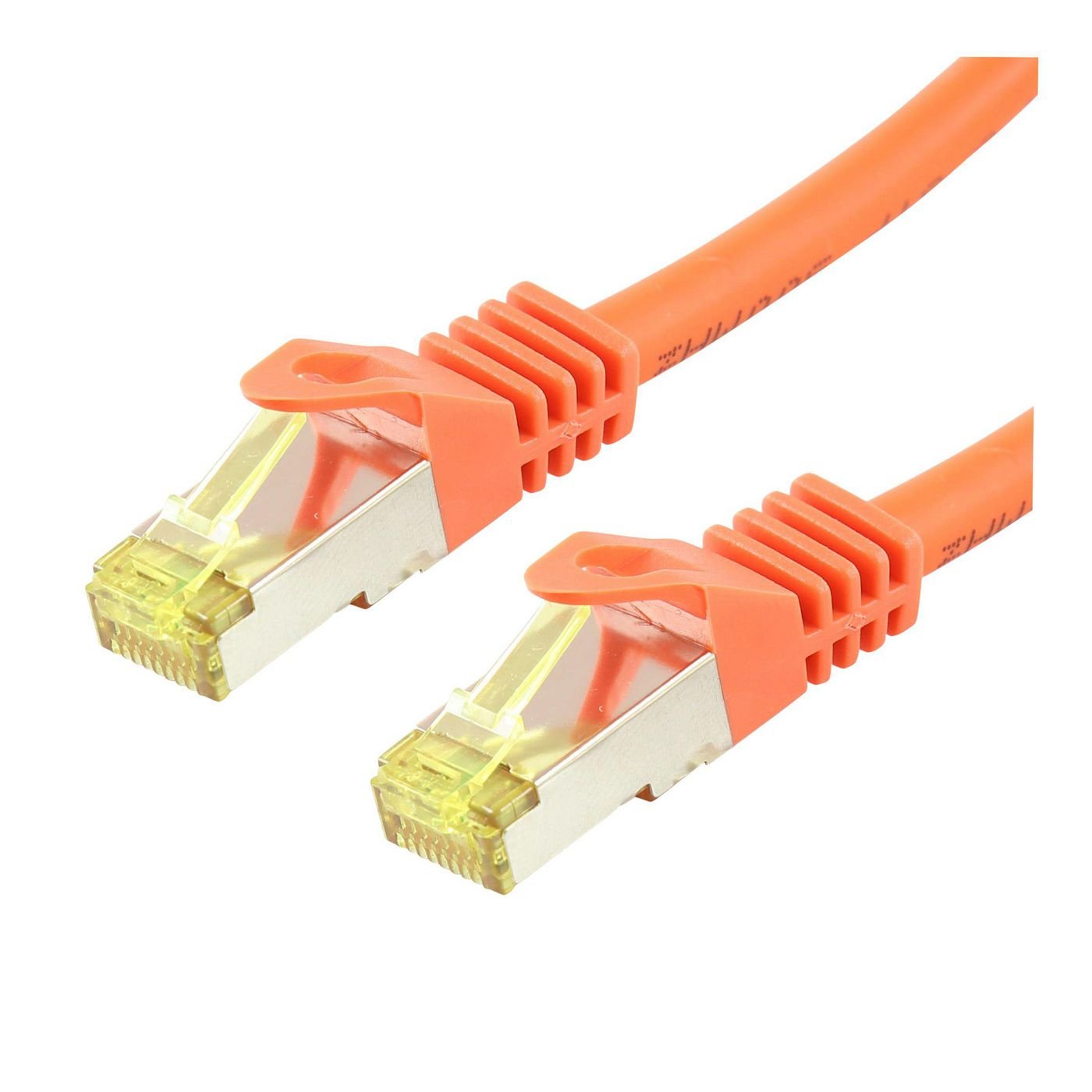

PATCH CABLE SFTP/PIMF/LSOH 0.25M – CAT6A 500Mhz – ORANGE

PATCH CABLE SFTP/PIMF/LSOH 0.25M – CAT6A 500Mhz – ORANGE

suitable for 10 Gigabit (10/100/1000/10000 Mbit) network

double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested – incl. test report
with 50µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B
Connections

Connection, shielding yes
Latch protection both sides
Connection, type RJ45 plug (8P8C)
Connection 2, type RJ45 plug (8P8C)
Cable

Shielding class: S/FTP (PiMF)
Specification: CAT 6a
Cable type: round cable
Cable length: 0.25 m
Inner conductor material: CU (copper)
AWG: 27
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (aluminum)
Kink protection: both sides
LSZH compliant: yes
Signal transmission

max. bandwidth: 500 MHz
General

Outer sheath material: LSZH
Color: orange
