Q1656

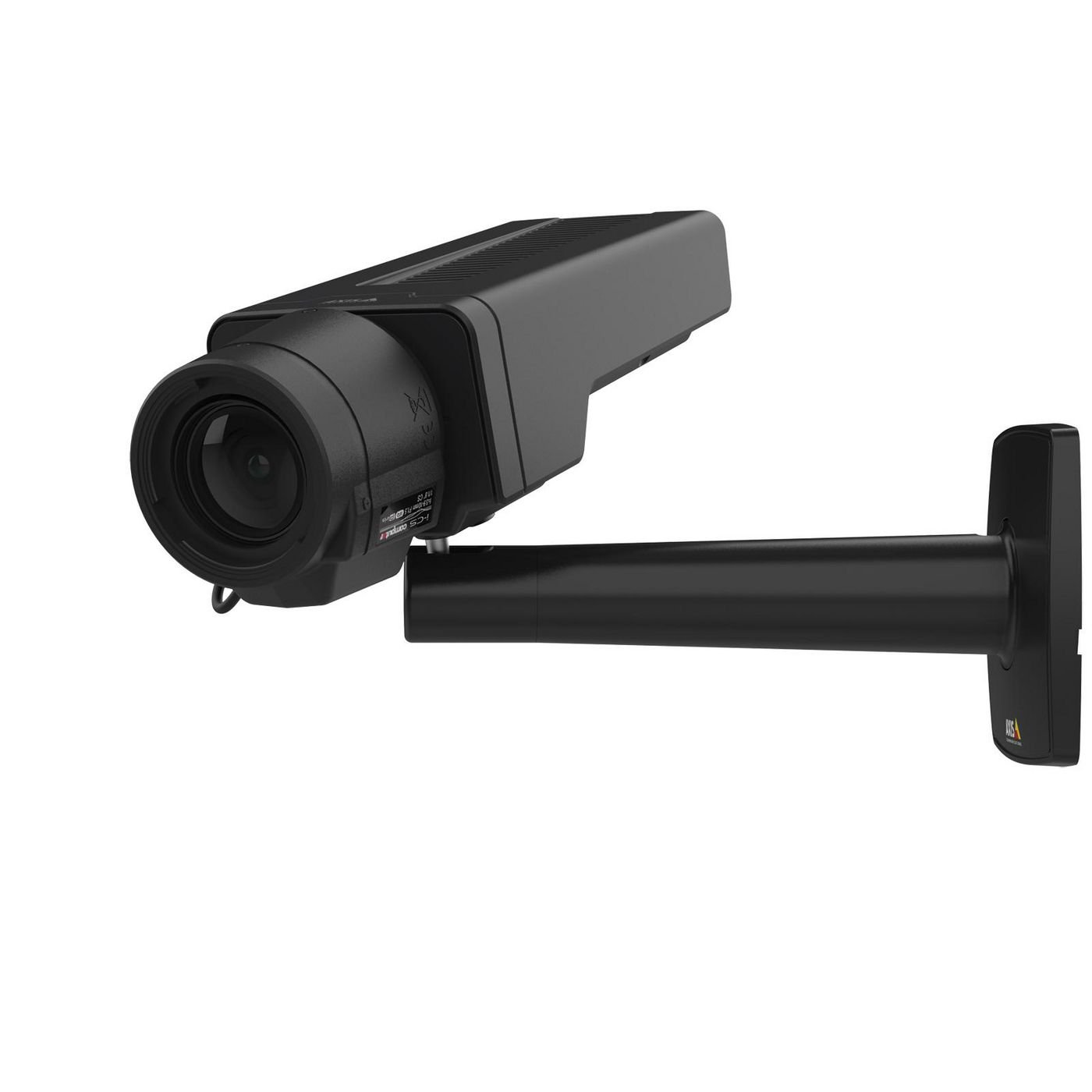

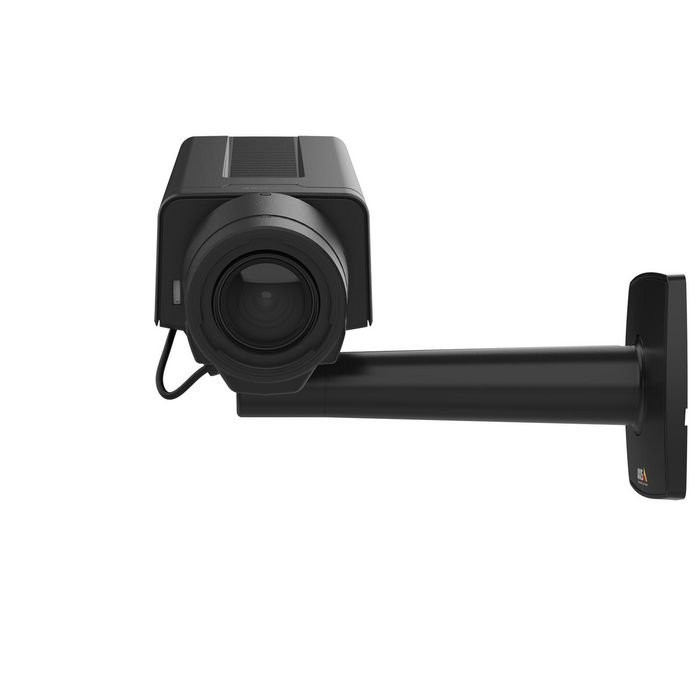

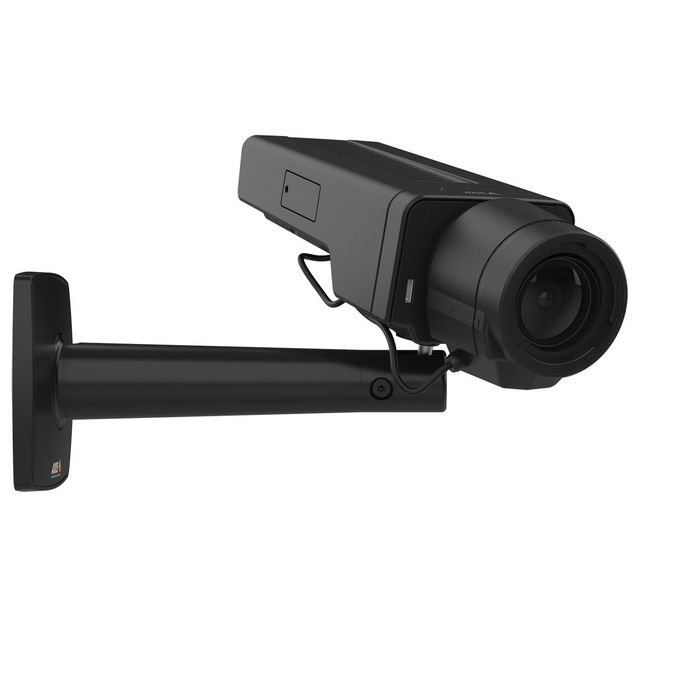

1/1.8” sensor, 4 MP, Day/night fixed box camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Includes an IR corrected varifocal 3.9-10 mm F1.5 i-CS lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling. Midspan or power supply not included.

Audio

Audio detection	Yes
Audio formats supported	ADPCM, LC-AAC, LPCM, PCM
Audio system	2-way
Audio system full duplex	Yes
Built-in microphone	Yes
Voice codecs	G.711, G.726, OPUS

Camera

Camera shutter speed	1/47500 - 1 s
Lens viewing angle, horizontal	120 °
Lens viewing angle, vertical	63 °
Minimum illumination	0.01 lx
Viewing angle, horizontal	120 °
Viewing angle, vertical	63 °

Design

Fog proof	Yes
Form factor	Dome
Housing material	Aluminium
Mounting type	Ceiling/wall
Product colour	Black

Image sensor

Number of sensors	1
Optical sensor size	1/1.8 "
Progressive scan	Yes
Sensor type	CMOS

Lens system

Auto focus	Yes
Closest focusing distance	0.5 m
Focal length range	3.9 - 10 mm
Maximum aperture number	1.5
Number of lenses	1
Optical zoom	2.5 x
Zoom capability	Yes

Management features

Behavior analysis	Line crossing detection
Remotely operated	Yes

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Live view	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Quality of Service (QoS) support	Yes
SIM card slot	No
Wi-Fi	No

Operational conditions

Operating relative humidity (H-H)	10 - 85 %
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Packaging content

Number of cameras	1

Performance

Connectivity technology	Wired
Day/night mode	Yes
Dynamic range	120 dB
Infrared (IR) cut-off filter	Yes
Languages support	English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese
Number of languages	12
PTZ modes	Digital PTZ
Placement supported	Indoor
Remote viewing	Yes
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
RS-422 ports	2
RS-485 ports	2

Power

DC output voltage	10, 28
Power consumption (Power over Ethernet (PoE))	5.1 W
Power consumption (max)	7.7 W
Power consumption (typical)	4.6 W
Power source type	DC, PoE

Security

Alert notification type	E-mail
HTTPS encryption	Yes
IP address filtering	Yes
Mirror	Yes
Password protection	Yes
Security algorithms	EAP-TLS, FIPS 140-2, HTTPS
Video motion detection	Yes

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8194 MB
Internal memory	2048 MB

System requirements

Windows operating systems supported	Yes

Technical details

Doesn't contain	BFR, PVC

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Gain control type	Auto
Image stabilizer	Yes
Maximum resolution	2688 x 1512 pixels
Noise reduction	Yes
Privacy masking	Yes
Supported graphics resolutions	160 x 90, 2688 x 1512
Text caption overlay	Yes
Total megapixels	4 MP
Video formats supported	H.264, H.265, M-JPEG
Video intelligence analytic	Yes
Video streaming	Yes
