Q3839-PVE

Name: Q3839-PVE
Brand: Axis
SKU: 02657-001
Price: 2512.13 GBP
Availability: InStock

£2,512.13

Excl.VAT

SKU: 02657-001 Category: IP Cameras Brand: Axis

10 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Q3839-PVE

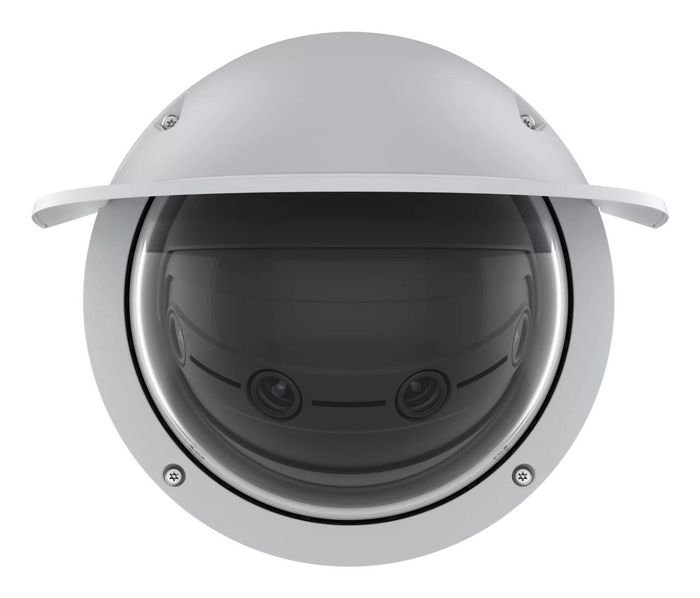

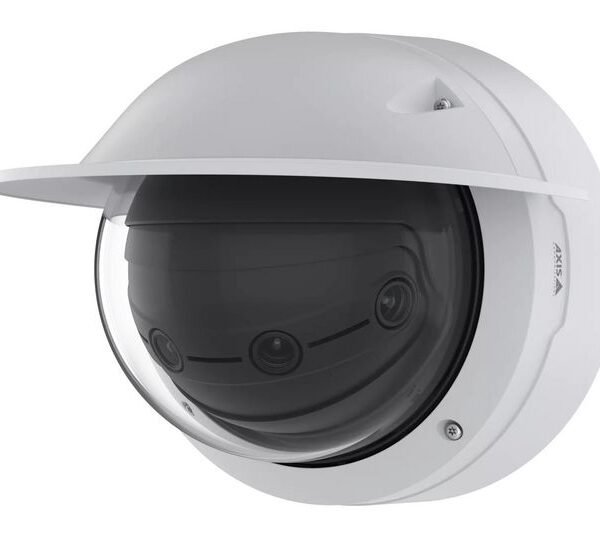

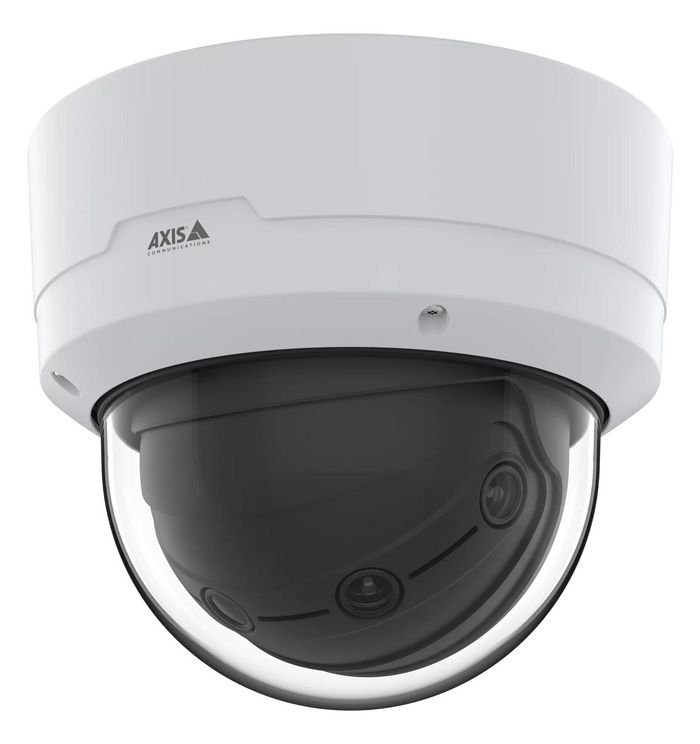

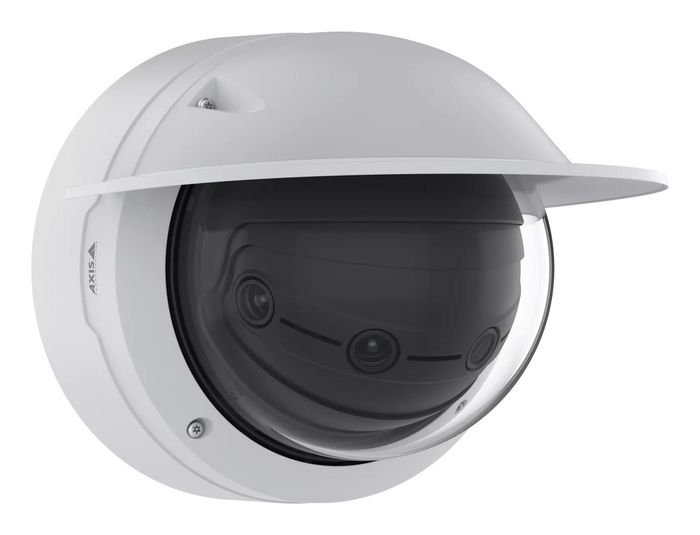

AXIS Q3839-PVE delivers a 180º panoramic overview of extensive areas. With 29 MP resolution and seamless stitching of all four images, it offers 180° horizontal and 90° vertical coverage at 25/30 FPS. The camera is perfect for complete situational awareness without any blind spots. The product’s powerful AI solution is made possible by a dual ARTPEC-8 chipset and gives a comprehensive analytics experience over the whole 180° field of view. AXIS Q3839-PVE comes with pan/tilt/roll installation motors for ease of installation and offers the Horizon Straightening feature for natural 180° views.

Audio

Audio system	1-way

Camera

Camera pan control	Yes
Camera pixel size	2 µm
Camera shutter speed	1/8500 - 1/5 s
Camera tilt control	Yes
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	90 °
Minimum illumination	0.03 lx
Pan range	-176 - 176 °
Tilt angle range	30 - 88 °

Design

Form factor	Dome
Housing material	Aluminium, Polycarbonate (PC)
IK code	IK10
International Protection (IP) code	IP66, IP67
Mounting type	Wall/Pole
Product colour	White

Image sensor

Number of sensors	4
Optical sensor size	1/1.8 "
Progressive scan	Yes
Sensor type	CMOS

Lens system

Detect distance	88.3 m
Fixed focus	Yes
Identify distance	8.8 m
Lens diameter	4.6 mm
Maximum aperture number	1.8
Observe distance	35 m
Recognize distance	17.7 m
Zoom capability	Yes

Management features

Cloud-managed	Yes

Network

Bluetooth	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support	Yes
Wi-Fi	No

Night vision

LED type	IR
Night vision	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-40 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C

Packaging content

Drilling template included	Yes
Manual	Yes
Mounting kit	Yes
Number of cameras	1

Panoramic camera

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Performance

Built-in processor	Yes
Connectivity technology	Wired
Day/night mode	Yes
Dynamic range	120 dB
Infrared (IR) cut-off filter	Yes
PTZ control	Yes
Placement supported	Outdoor
Processor model	ARTPEC-8
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Power

DC output current	0.05 A
DC output voltage	12
Power consumption (max)	19.1 W
Power consumption (typical)	9.74 W
Power source type	DC, PoE

Security

Active tampering alarm	Yes
Network access storage (NAS)	Yes
Video motion detection	Yes

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Vendor information

Brand Name	Axis
Warranty	5 Year(s)

Video

Frame rate	30 fps
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness, White balance
Maximum resolution	7552 x 3776 pixels
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Text caption overlay	Yes
Total megapixels	29 MP
Video compression formats	H.264, H.265, M-JPEG
Video recording	Yes
Video streaming	Yes
