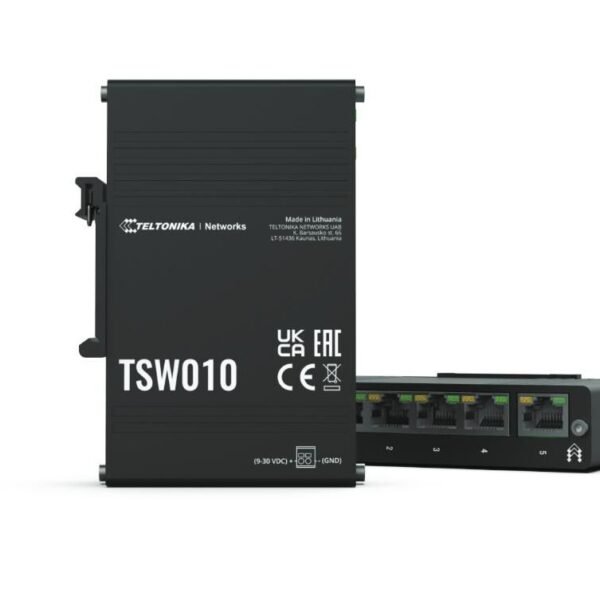

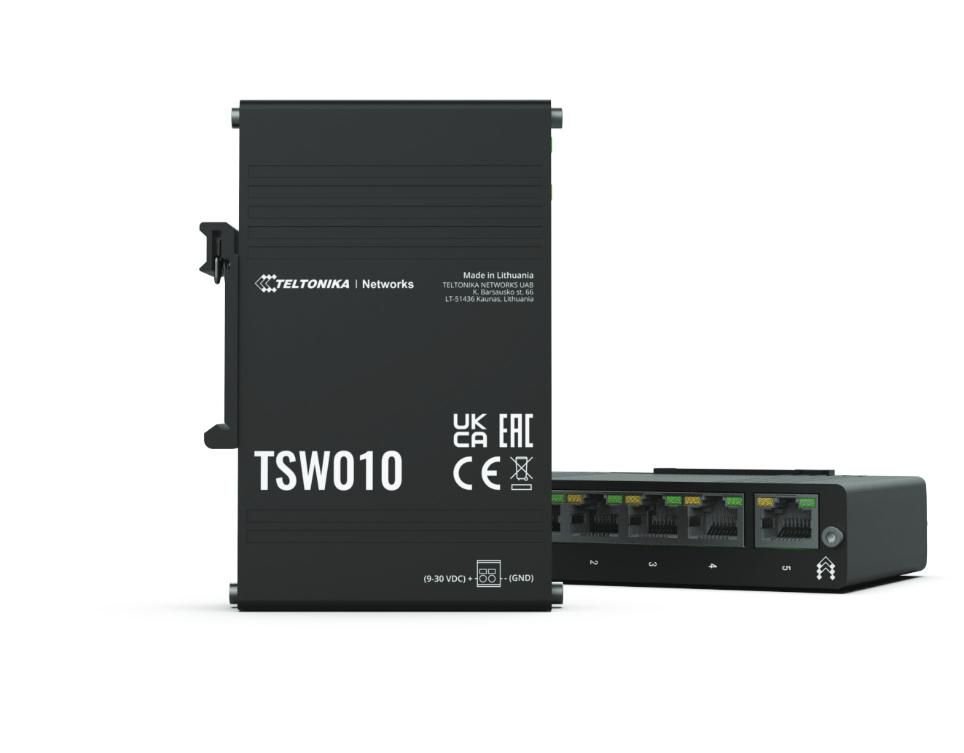

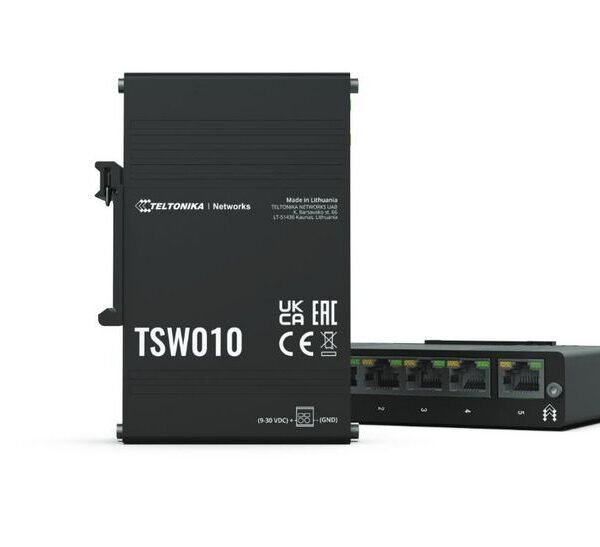

TSW010 DIN RAIL SWITCH
TSW010 DIN RAIL SWITCH
Fast delivery within 72 Hours
TSW010 DIN RAIL SWITCH
£25.41
Excl.VAT
11 in stock
Shipping & Delivery
-
Standard delivery
Our courier will deliver to the specified address
3-4 Days
From £9.95
-
Express delivery
All heavy items above 25kg will be charged shipping cost as per actual
1-2 Days
From £14.95
TSW010 DIN RAIL SWITCH
TSW010 DIN RAIL SWITCH
Data transmission
| Jumbo frames | 2048 |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.128 MB |
| Switching capacity | 1 Gbit/s |
Design
| Certification | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
|---|---|
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Black |
Network
| 10G support | No |
|---|---|
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10, 100 |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Power
| Input voltage | 9 - 30 V |
|---|---|
| Power consumption (max) | 0.9 W |
| Power consumption (typical) | 0.3 W |
| Power source | DC/PoE |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) type supported | Passive PoE |
Vendor information
| Brand Name | Teltonika Networks |
|---|---|
| Homepage | https://teltonika-networks.com/lt/product/tsw010/ |
| Warranty | 2 Year(s) |
