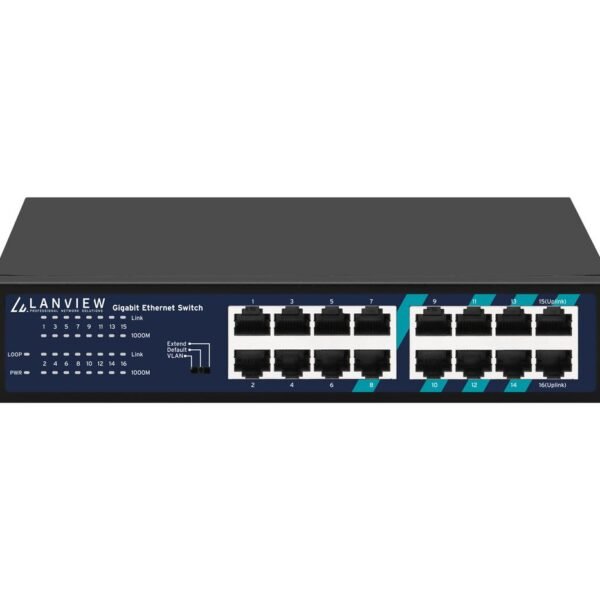

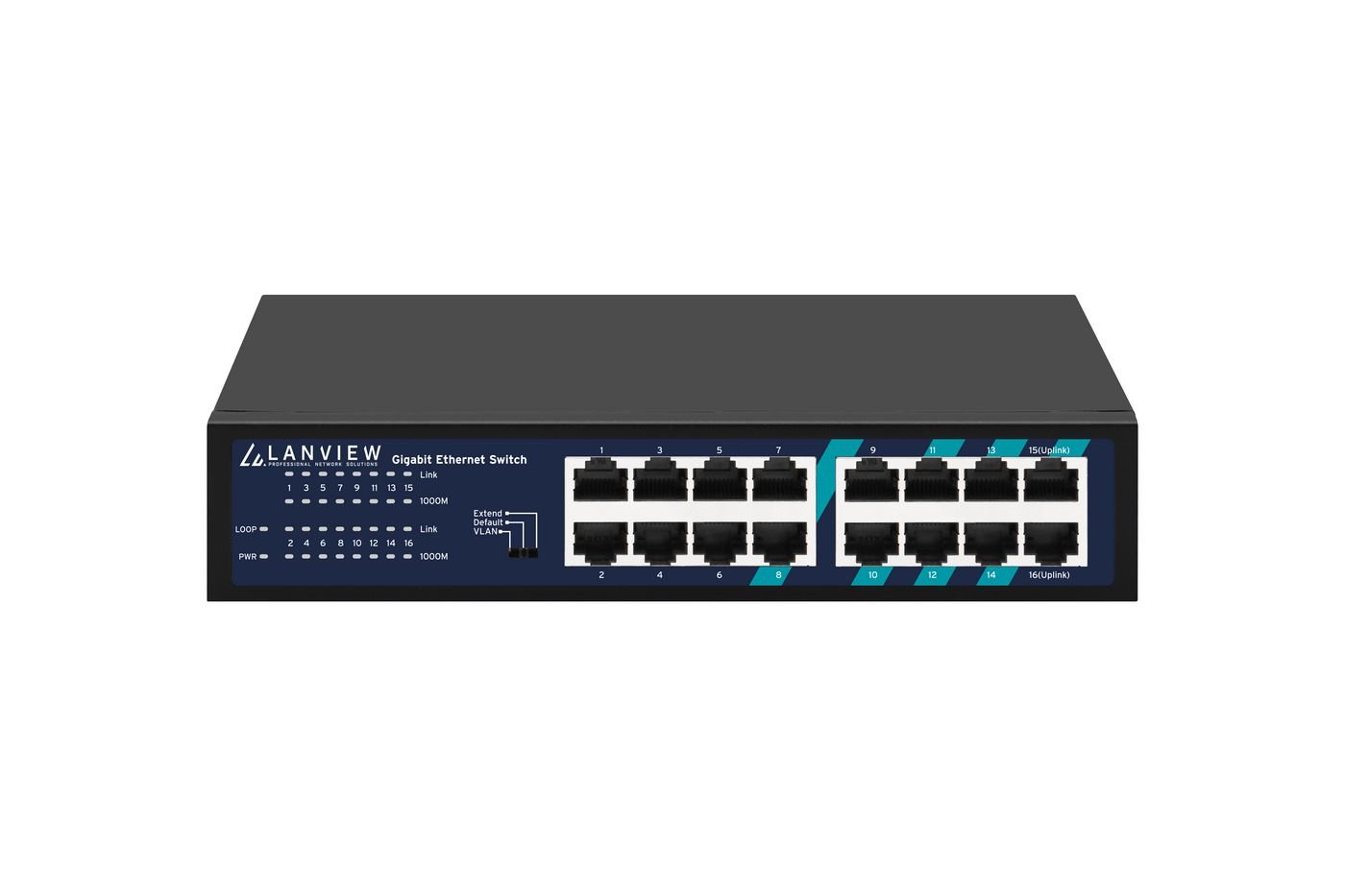

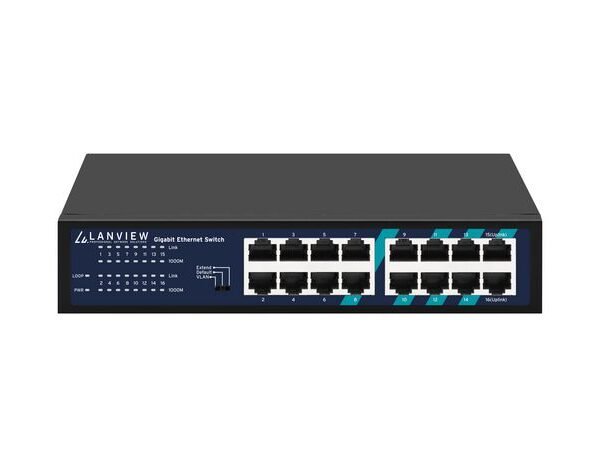

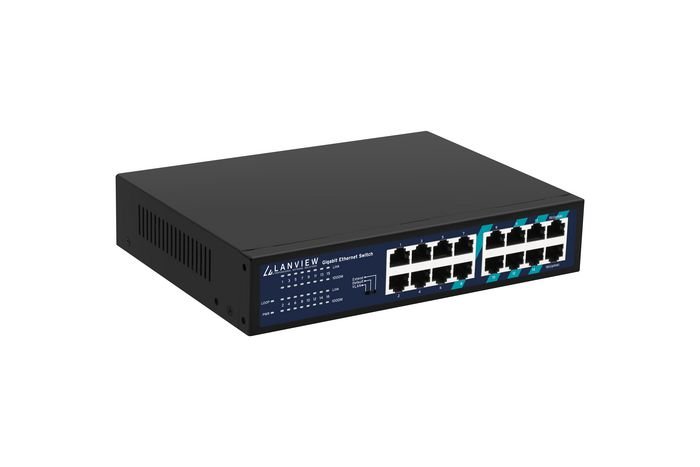

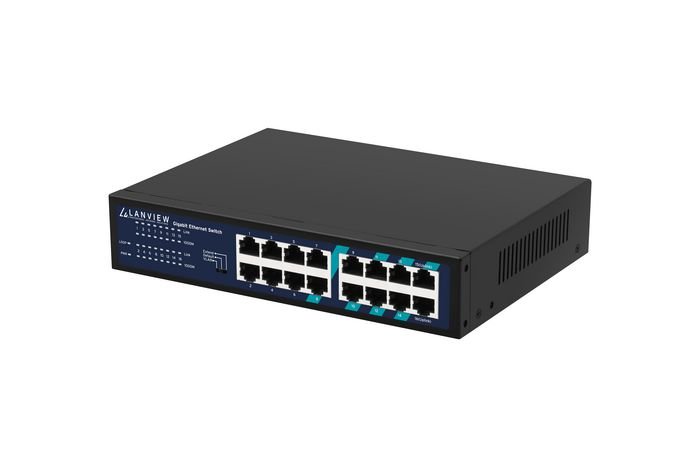

Unmanaged 16-Port Full Gigabit Intelligent Ethernet Switch

£41.88

Excl.VAT

SKU: LVN-1U-16PORT-1G Category: Unmanaged Switches Brand: Lanview

10 in stock

Add to wishlist

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Unmanaged 16-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

Lanview LVN-1U-16PORT-1G
is a high-performance, Full Gigabit intelligent Ethernet switch featuring 16 Gigabit RJ45 ports.

With a robust bandwidth of 32 Gbps, this switch is engineered for optimal network performance.

It supports advanced features such as port isolation and a remarkable 250-meter transmission range, making it ideal for various applications.

Designed to operate effectively in a wide temperature range of -10°C to 50°C, it ensures reliable connectivity in diverse environments.

The switch also includes Quality of Service (QoS) for data prioritization and a loop alarm feature to enhance network reliability.

Certificates

NDAA Compliance	Yes

Data transmission

Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Packet forwarding	Yes
Store-and-forward	Yes
Switching capacity	32 Gbit/s

Design

Housing material	Metal
LED indicators	Link, Loop, Power
RoHS compliance	Yes

Management features

Switch type	Unmanaged

Network

Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0-40 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Other features

Material	Metal
Power LED	Yes

Packaging data

Manual	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Power

Surge protection	Yes
Surge protection voltage	4 kV

Technical details

Warranty period	3 year(s)

Vendor information

Brand Name	Lanview
Warranty	3 Year(s)
