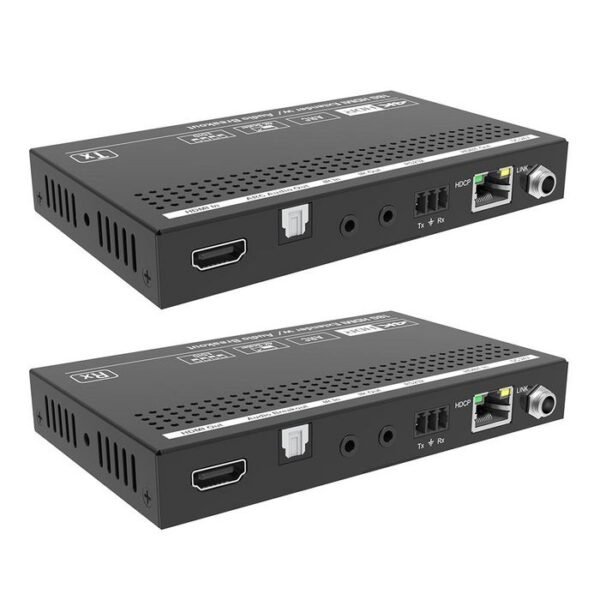

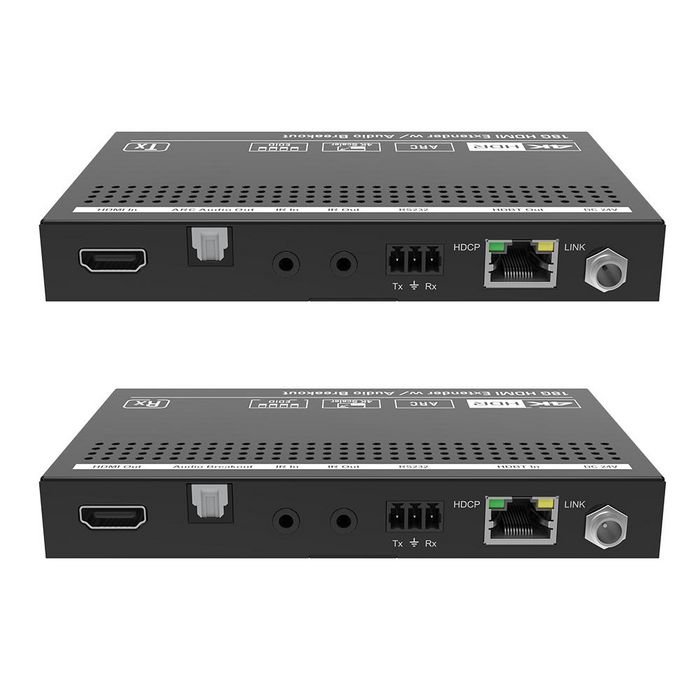

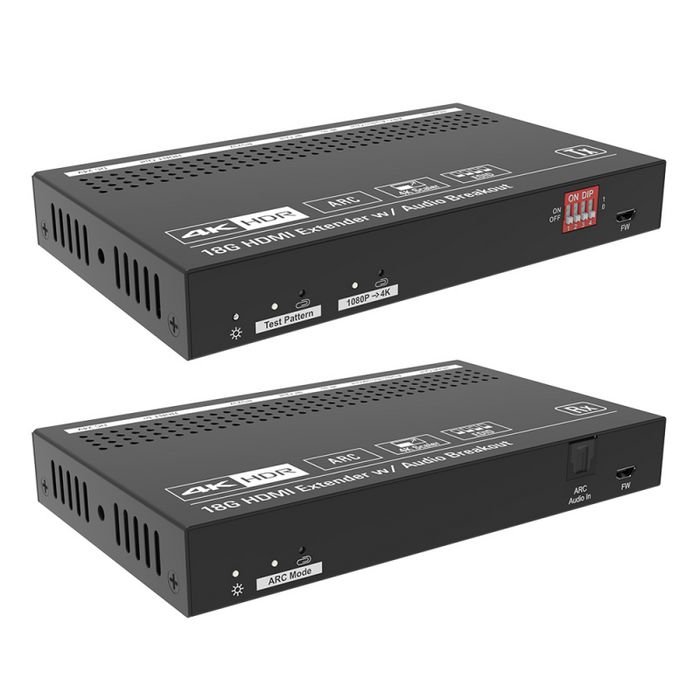

Transmitter/Receiver HDMI 2.0 18Gbps /w Audio Breakout
Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
| Bandwidth | 18 Gbit/s |
|---|---|
| CEC pass-through | Yes |
| Cable types supported | Cat5e, Cat6 |
| HDBaseT certified | Yes |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| HDCP version | 2.2 |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| RS-232 pass-through | Yes |
| Remote control type | IR + RS232 |
| RoHS compliance | Yes |
| Supported video modes | 3840p |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
| Operating temperature (T-T) | -10 - 50 °C |
|---|
| AC adapter included | Yes |
|---|---|
| IR blaster included | No |
| IR receiver included | No |
| Included power plug types | EU, GB |
| Mounting brackets included | Yes |
| Package dimensions (WxDxH) | mm mm |
|---|---|
| Package length | 18.5 cm |
| 3.5 mm (1/8-inch) in | Yes |
|---|---|
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Digital audio optical output type | TosLink |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| AC input frequency | 50 / 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage | 24 V |
| Power consumption (receiver) (max) | 14 W |
| Power consumption (transmitter) (max) | 14 W |
| Power over Ethernet (PoE) | No |
| Power source type | PoC |
| Audio support | Yes |
|---|
| Brand Name | Vivolink |
|---|---|
| Warranty | 5 Year(s) |
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Transmitter/Receiver HDMI 2.0 18Gbps /w Audio Breakout
Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
