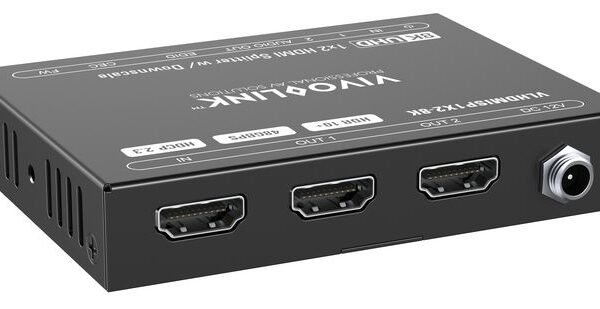

Vivolink VLHDMISP1X2-8K video splitter HDMI 2x HDMI

Name: Vivolink VLHDMISP1X2-8K video splitter HDMI 2x HDMI
Brand: Vivolink
SKU: VLHDMISP1X2-8K
Price: 84.53 GBP
Availability: InStock

£84.53

Excl.VAT

SKU: VLHDMISP1X2-8K Category: AV Switches & Splitters Brand: Vivolink EAN: 5715063697870

32 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

HDMI splitter 1×2 (8K@60Hz)

Vivolink VLHDMISP1X2-8K HDMI splitter Supports HDMI V2.1 and the video resolution up to 8K@60Hz 4:4:4.
HDMI input supports HDCP 2.3 and the outputs support HDCP Active or HDCP Passive mode. with 8K to 4K Down-scaling

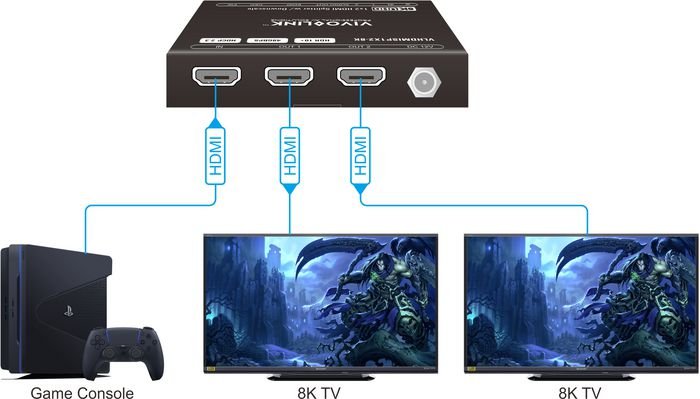

Typical installations:
Ideal for splitting HDMI signals for shops or fairs’

Function:
Supports video resolution down-scaling
48Gbps high bandwidth
Advanced EDID management (multiple built-in EDID settings)
Built-in equalizer for signal enhancement
Supports CEC pass-through
Provides LEDs to indicate the current operating status

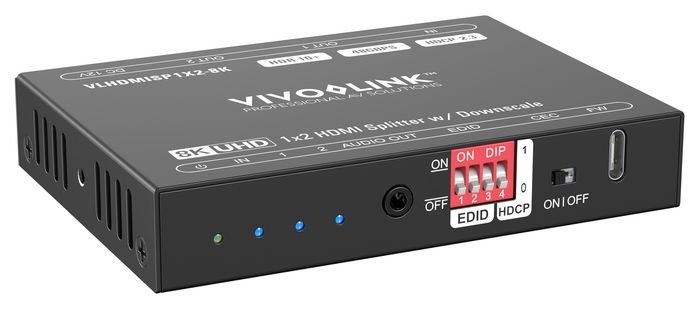

DIP switch on box to control signal source resolution
Firmware upgrade by USB-C port

Features

3D	Yes
Easy to install	Yes
HD type	8K Ultra HD
HDCP	Yes
HDCP version	1.4/2.2/2.3
Housing material	Metal
LED indicators	Yes
Maximum refresh rate	60 Hz
Maximum resolution	7680 x 4320 pixels
Number of displays supported	2
Plug and Play	Yes
Power LED	Yes
Product colour	Black
RoHS compliance	Yes
Supported video modes	4320p

Operational conditions

Operating temperature (T-T)	0 - 50 °C

Packaging content

AC adapter included	Yes
User guide	Yes

Packaging data

Quantity per box	1 pc(s)

Ports & interfaces

DC-in jack	Yes
Ethernet LAN	No
HDMI version	2.1
Video in	1x HDMI
Video out	2x HDMI
Video port type	HDMI
Video ports quantity	2

Power

Input voltage	110v -230v V
Power consumption (typical)	2.5 W

Technical details

Cascadable	Yes
Connector type	HDMI
Maximum cable length	100 m
Resolution	7680 x 4320 pixels

Vendor information

Brand Name	Vivolink
Warranty	5 Year(s)

Weight & dimensions

Dimensions (WxDxH)	96mm x 70,4mm x 17,6 mm
