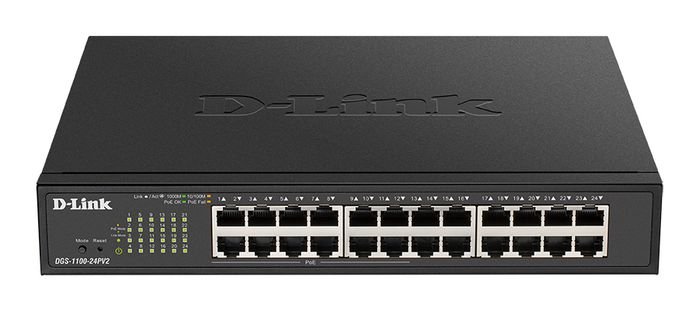

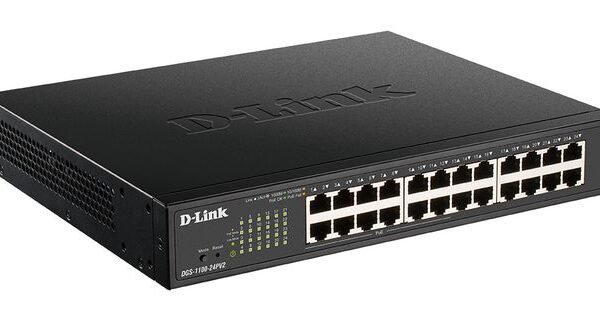

24-Port Gigabit Smart Managed Switch

Name: 24-Port Gigabit Smart Managed Switch
Brand: D-Link
SKU: DGS-1100-24PV2/E
Availability: OutOfStock

£0.00

Excl.VAT

SKU: DGS-1100-24PV2/E Category: Managed Switches Brand: D-Link

Out of stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

24-Port Gigabit Smart Managed Switch

24-Port PoE Gigabit Smart Managed Switch
– 12-Port 1000BaseTX Auto-Negotiating 10/100/1000Mbps + 12 Port PoE Switch
– Switch Capacity 48Gbps.
– Max Forwarding Rate 35.7 Mpps
– 512Kbytes Packet Buffer
– MAC Address Table Size – 64 Entries
– Power over Ethernet 802.3af Ports 1-12
– PoE Budget 100W
– 802.1Q VLAN,Port-based VLAN, 802.1Q Tagged VLAN, Surveillance VLAN, Voice VLAN and Management VLAN
– VLAN Group – Supports 128 static VLAN groups with maximum 4094 VIDs
– 802.1p QoS
– IGMP snooping
– Loopback detection
– Port mirroring
– Bandwidth control
– Storm control
– 802.3, 802.3u, 802.3x
– Web based management
– Cable diagnostics
– TLS1.1/1.2
– PoE PD alive
– 802.3, 802.3u, 802.3x
– Dual Images
– Link Aggregation
– SNMP
– 11-inch Desktop/Rackmount Size
+D213

Data transmission

Forwarding rate	35.71 Mpps
Jumbo frames	9216
Jumbo frames support	Yes
MAC address table	8000 entries
Number of queues	4
Packet buffer memory	4.1 MB
Store-and-forward	Yes
Switching capacity	48 Gbit/s

Design

Certification	cUL, CE LVD, CB, BSMI, CCC, EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
LED indicators	Yes
Product colour	Black
Rack mounting	Yes

Management features

Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed
System event log	Yes
Web-based management	Yes

Multicast features

Multicast support	Yes

Network

10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Copper ethernet cabling technology	1000BASE-T, 10BASE-T, 10BASE-TX
Flow control support	Yes
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	128
Port mirroring	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN

Operational conditions

Heat dissipation	107.5 BTU/h
Operating altitude	0 - 2000 m
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	-5 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Performance

Built-in processor	Yes
Fanless	Yes
Flash memory	16 MB
Mean time between failures (MTBF)	255003 h
Memory type	DRAM
Processor frequency	125 MHz

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Power

AC input voltage	100 - 240 V
Power consumption (max)	19.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	12
Total Power over Ethernet (PoE) budget	100 W

Security

DHCP features	DHCP client
IGMP snooping	Yes
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Security algorithms	SNMP, SSL/TLS
