Unmanaged 24-Port Full Gigabit Intelligent Ethernet Switch 1U rack-mounted

Name: Unmanaged 24-Port Full Gigabit Intelligent Ethernet Switch 1U rack-mounted
Brand: Lanview
SKU: LVN-1UMOUNT-24PORT-1G
Price: 63.41 GBP
Availability: InStock

£63.41

Excl.VAT

SKU: LVN-1UMOUNT-24PORT-1G Category: Unmanaged Switches Brand: Lanview

12 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Unmanaged 24-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

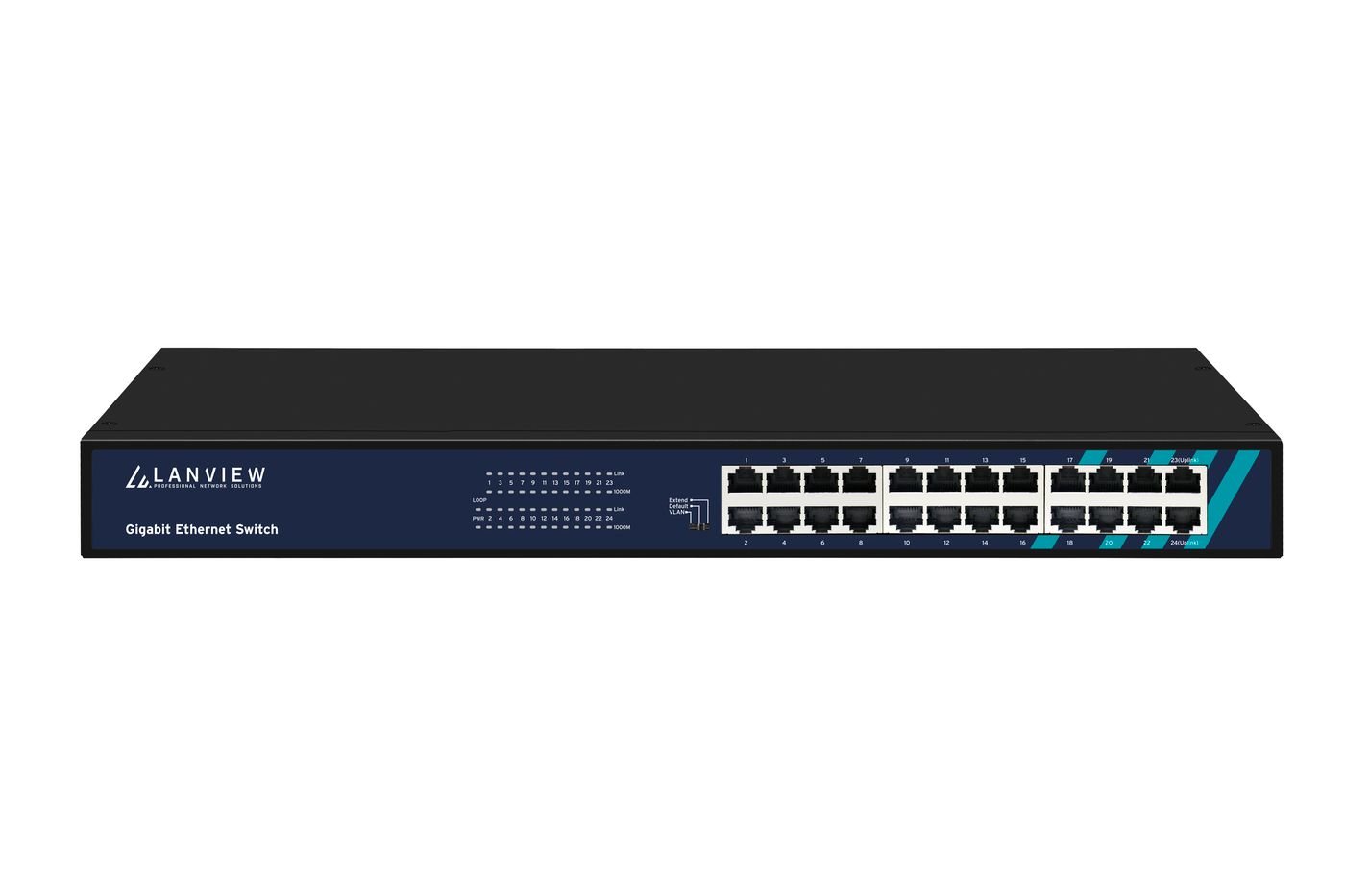

The Lanview LVN-1UMOUNT-24PORT-1G
is a high-performance, full gigabit intelligent Ethernet switch designed to meet the demands of modern networking environments.

Featuring 24 Gigabit RJ45 ports, this switch offers an impressive bandwidth of 48 Gbps, ensuring smooth and efficient data transmission.

It supports port isolation and boasts a transmission distance of up to 250 meters, making it ideal for a variety of applications.

With Quality of Service (QoS) for data prioritization and loop alarm capabilities, this switch guarantees reliable and optimized network performance.

It operates effectively in a wide temperature range of -10°C to 50°C and is designed for 1U rack-mounted installation.

Certificates

NDAA Compliance	Yes

Data transmission

Forwarding rate	35.71 Mpps
MAC address table	8000 entries
Packet forwarding	Yes
Store-and-forward	Yes
Switching capacity	48 Gbit/s

Design

Housing material	Metal
LED indicators	Link, Loop, Power
Number of fans	0 fan(s)
On/off switch	No
RoHS compliance	Yes

Management features

Switch type	Unmanaged

Network

Auto MDI/MDI-X	Yes
Flow control support	Yes
Full duplex	Yes
Half duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0-40 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Other features

Material	Metal
Power LED	Yes

Packaging data

Manual	Yes
Rack mount kit	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Power

AC input voltage	100-240 V
DC input voltage	12 V
Input current	2 A
Surge protection	Yes
Surge protection voltage	6 kV

Technical details

Warranty period	3 year(s)

Vendor information

Brand Name	Lanview
Warranty	3 Year(s)
