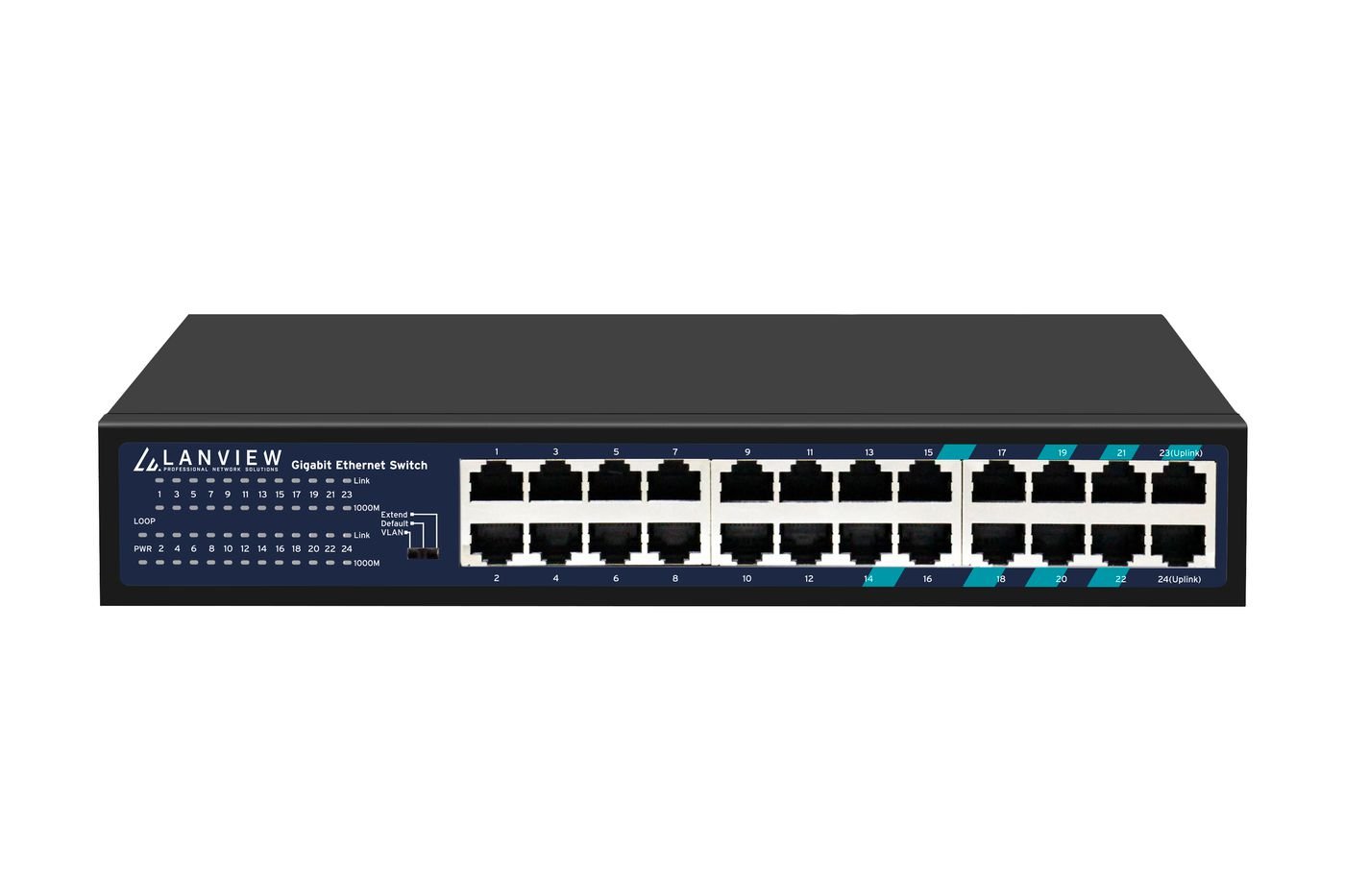

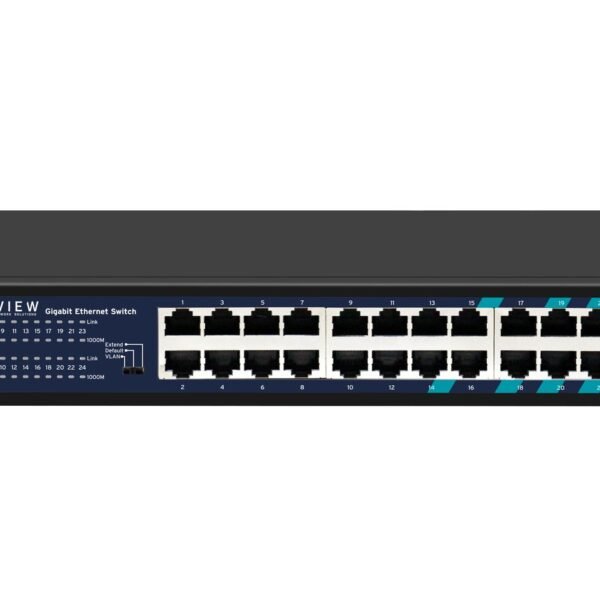

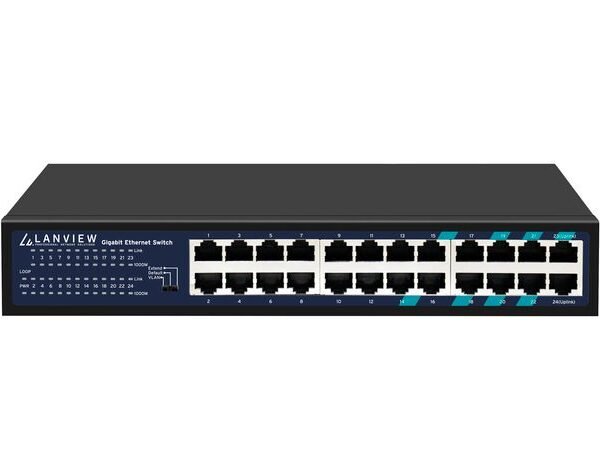

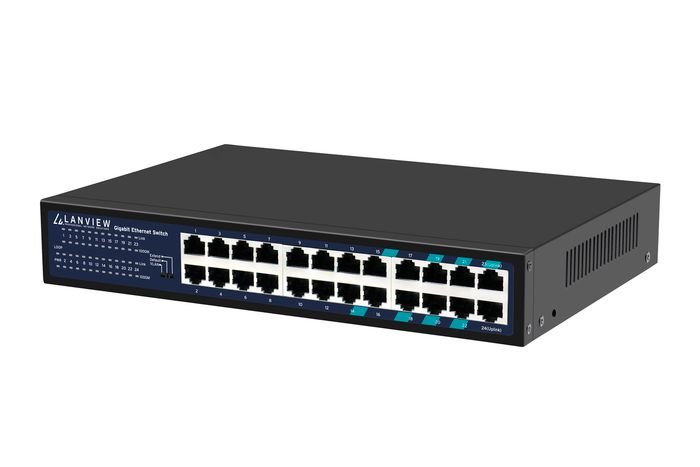

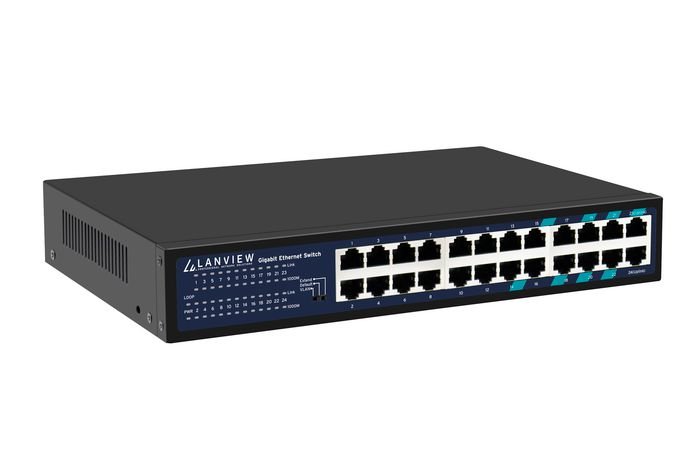

Unmanaged 24-Port Full Gigabit Intelligent Ethernet Switch

Name: Unmanaged 24-Port Full Gigabit Intelligent Ethernet Switch
Brand: Lanview
SKU: LVN-1U-24PORT-1G
Price: 55.57 GBP
Availability: InStock

£55.57

Excl.VAT

SKU: LVN-1U-24PORT-1G Category: Unmanaged Switches Brand: Lanview

2 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Unmanaged 24-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

The Lanview LVN-1U-24PORT-1G
is a high-performance full gigabit intelligent Ethernet switch designed to enhance your network capabilities.

Featuring 24 Gigabit RJ45 ports with a robust bandwidth of 48 Gbps, this switch is engineered for optimal data transmission in both office and industrial environments.

It supports port isolation and an extended transmission distance of up to 250 meters.

Ideal for a wide temperature range of -10℃ to 50℃, the LVN-1U-24PORT-1G
is equipped with advanced features like QoS data prioritization and loop alarm systems, making it a versatile choice for demanding networking applications.

Certificates

NDAA Compliance	Yes

Data transmission

Forwarding rate	35.71 Mpps
MAC address table	8000 entries
Packet forwarding	Yes
Store-and-forward	Yes
Switching capacity	48 Gbit/s

Design

Housing material	Metal
LED indicators	Link, Loop, Power
Number of fans	0 fan(s)
On/off switch	No
RoHS compliance	Yes

Management features

Switch type	Unmanaged

Network

Auto MDI/MDI-X	Yes
Flow control support	Yes
Full duplex	Yes
Half duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0-40 °C
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Other features

Material	Metal
Power LED	Yes

Packaging data

Manual	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Power

AC input voltage	100-240 V
Surge protection	Yes
Surge protection voltage	4 kV

Technical details

Warranty period	3 year(s)

Vendor information

Brand Name	Lanview
Warranty	3 Year(s)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Unmanaged 24-Port Full Gigabit Intelligent Ethernet Switch”

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

Unmanaged 24-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

The Lanview LVN-1U-24PORT-1G
is a high-performance full gigabit intelligent Ethernet switch designed to enhance your network capabilities.

Featuring 24 Gigabit RJ45 ports with a robust bandwidth of 48 Gbps, this switch is engineered for optimal data transmission in both office and industrial environments.

It supports port isolation and an extended transmission distance of up to 250 meters.

Ideal for a wide temperature range of -10℃ to 50℃, the LVN-1U-24PORT-1G
is equipped with advanced features like QoS data prioritization and loop alarm systems, making it a versatile choice for demanding networking applications.
