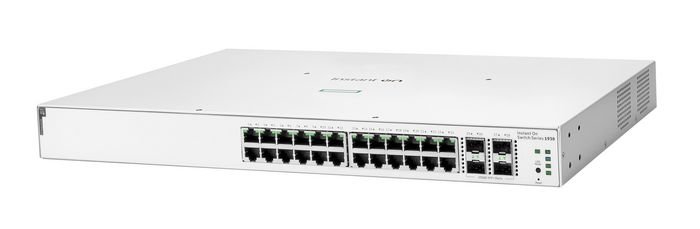

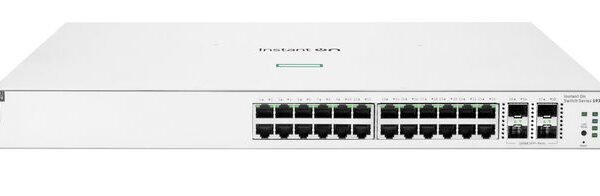

Aruba Instant On 1930 24G Class4 Poe 4Sfp/Sfp+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) 1U White

£420.42

Excl.VAT

SKU: JL684B Category: Brand:

10 in stock

Shipping & Delivery

  • Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

  • Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

Features

Simplify Network Deployment and Management for Small Organizations
– The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
– The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
– The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
– The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features
– The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
– Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
– Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
– Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance
– The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
– 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
– The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
– The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Data transmission

Jumbo frames9216
Jumbo frames supportYes
Latency (1 Gbps)2.4 µs
Latency (10 Gbps)1.3 µs
Latency (10-100 Mbps)4.7 µs
MAC address table16000 entries
Packet buffer memory1.5 MB
Switching capacity128 Gbit/s
Throughput95.23 Mpps

Design

Form factor1U
Product colourWhite
Rack mountingYes
StackableNo

Management features

ARP inspectionYes
Cloud-managedYes
Quality of Service (QoS) supportYes
Switch layerL2/L3/L4
Switch typeManaged
System event logYes
Web-based managementYes

Network

10G supportYes
Auto MDI/MDI-XYes
Auto-sensingYes
Flow control supportYes
Full duplexYes
Link aggregationYes
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Operational conditions

Operating altitude0 - 3048 m
Operating relative humidity (H-H)15 - 95 %
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)15 - 95 %
Storage temperature (T-T)-40 - 70 °C

Other features

Dimensions (W x D x H) (imperial)1.73 x 17.42 x 10.42 "
I/O ports24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
Memory and processorARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Performance managementInstant On Portal, Web browser, SNMP Manager
Weight (imperial)8.23 lbs

Performance

Built-in processorYes
Flash memory256 MB
Internal memory512 MB
Memory typeSDRAM / Flash
Processor frequency800 MHz
Processor modelARM Cortex-A9

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity4

Power

AC input frequency50 - 60 Hz
AC input voltage200 - 240 V
Power consumption (max)490 W
Power consumption note490W maximum, 30W idle
Power sourceAC
Power supply includedYes

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget370 W

Security

Access Control List (ACL)Yes
DHCP featuresDHCP client
IGMP snoopingYes
SSH/SSL supportYes

Vendor information

Brand NameHewlett Packard Enterprise
Warranty1 Year(s)
