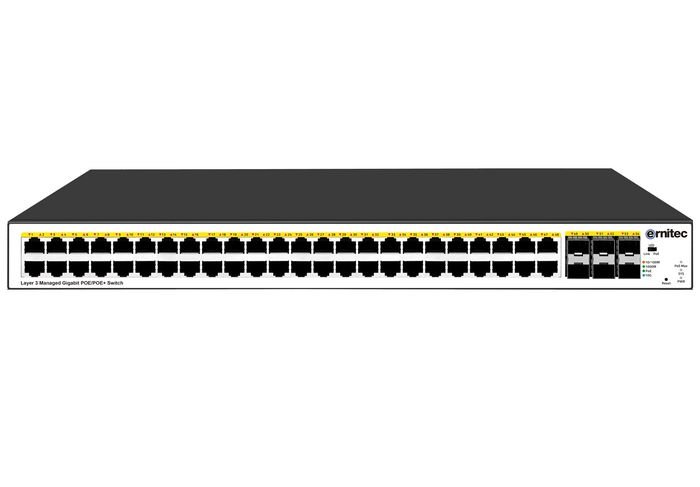

Managed L3 – 48 x Gigabit ports 1 x Console Port 4 x 10G SFP ports

Name: Managed L3 - 48 x Gigabit ports 1 x Console Port 4 x 10G SFP ports
Brand: Ernitec
SKU: ELECTRA-M248-1GB-900W
Price: 1003.70 GBP
Availability: InStock

£1,003.70

Excl.VAT

SKU: ELECTRA-M248-1GB-900W Category: Managed Switches Brand: Ernitec

54 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

48-Port Gigabit and 6-Port 10G SFP+ Managed L3 PoE Switch, 1-Console Port, PoE 900W

This device is compliant with IEEE standards 802.1d, 802.1w, 802.1s, 802.1p, 802.3, 802.3u, 802.3x, 802.3z, 802.3ab, and 802.3ae.

It offers L3 management, DHCP Server support, QoS, ACL control, and SNMP V1/V2/V3 compatibility.

It also supports IGMP Snooping v1/v2, Spanning Tree Protocol STP/RSTP/MSTP (ERPS), loop detection and self-healing, as well as remote loopback monitoring and control (802.3ah OAM).

The device supports multiple VLAN partitions, including MAC VLAN and protocol VLAN, and features IP address+MAC address+VLAN+port binding, DHCP Snooping, and IP source and DAI protection.

It supports IPV4/IPV6, RIP v1/v2, OSPF v2, and offers management via WEB, TELNET, CLI, SSH, SNMP, and RMON.

It is compatible with IEEE802.3af (15.4W), IEEE802.3at (30W), standards. Additionally, it supports PoE watchdog, PoE port power supply and power configuration, and PoE time management.

Certificates

NDAA Compliance	Yes

Data transmission

Forwarding rate	160.76 Mpps
Jumbo frames	10000
Jumbo frames support	Yes
MAC address table	32000 entries
Store-and-forward	Yes
Switching capacity	216 Gbit/s

Design

Housing material	Metal
LED indicators	PoE, Power, System
Number of fans	4 fan(s)
Product colour	Black, White
Rack mounting	Yes
Reset button	Yes
RoHS compliance	Yes

Management features

Switch layer	L3
Switch type	Managed

Multicast features

Multicast support	Yes

Network

10G support	Yes
Flow control support	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Number of VLANs	4000
Port mirroring	Yes

Operational conditions

Operating temperature (T-T)	0-40 °C

Other features

Material	Metal

Packaging data

Cables included	AC
Manual	Yes
Mounting brackets included	Yes

Performance

Fanless	No
Firmware upgradeable	Yes
Telnet	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Installed SFP modules quantity	6
Installed SFP+ modules quantity	6
Number of management ports	54 pc(s)
Power connector	AC/DC
SFP/SFP+ slots quantity	6

Power

AC input frequency	50/60 Hz
AC input voltage	100-240 V
Surge protection	Yes
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	900 W

Security

MAC address entries	Dynamic MAC address entries, Static MAC address entries
MAC address filtering	Yes

Vendor information

Brand Name	Ernitec
Homepage	http://www.ernitec.com
Warranty	5 Year(s)
