Orion DX 862OPH Outdoor – PTZ 40x zoom 1080p, 120dB UWDR Mini Bracket, POE+, 24VAC, EIS, H.264, H265, MJPEG, OnVif

Name: Orion DX 862OPH Outdoor - PTZ 40x zoom 1080p, 120dB UWDR Mini Bracket, POE+, 24VAC, EIS, H.264, H265, MJPEG, OnVif
Brand: Ernitec
SKU: 0070-05862OPH
Price: 1881.50 GBP
Availability: InStock

£1,881.50

Excl.VAT

SKU: 0070-05862OPH Category: IP Cameras Brand: Ernitec

79 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

Orion Pro 2MP PTZ Camera with 40x Optical Zoom, PoE+, IP66, IK10 – NDAA

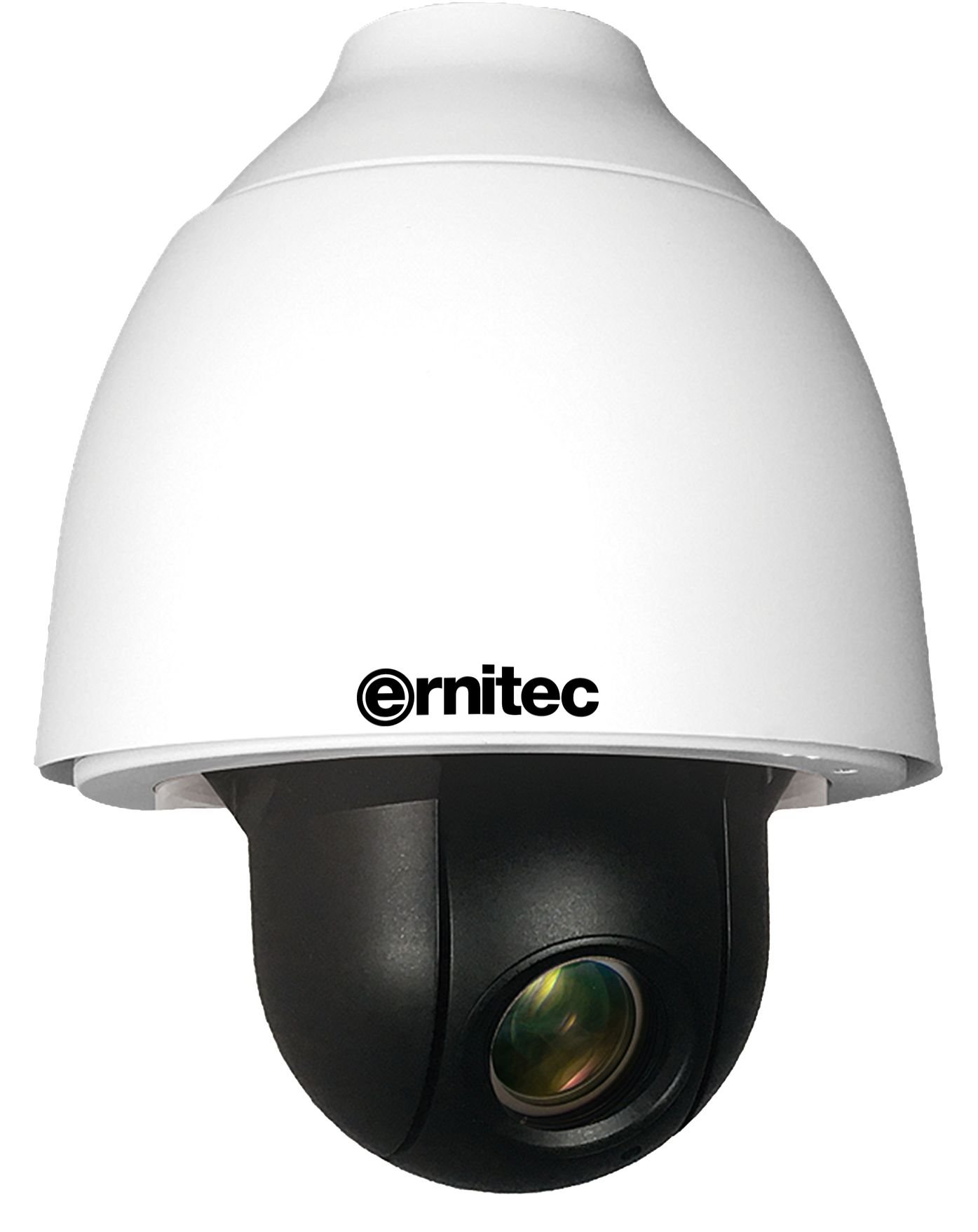

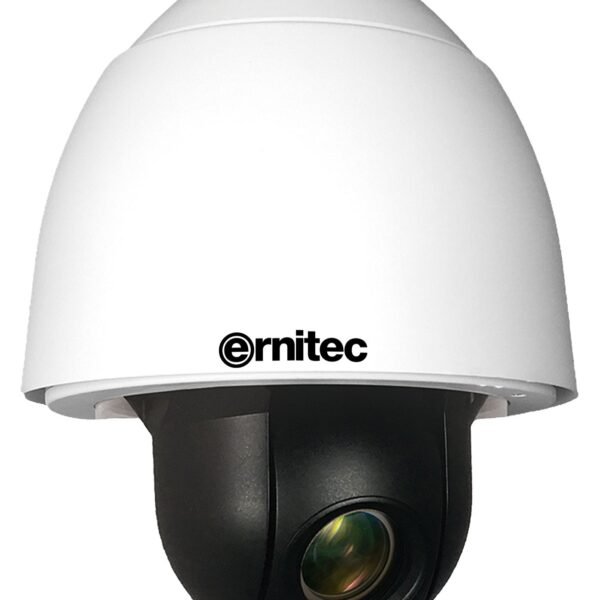

Orion DX 862OPH

The Orion DX 5 is a full HD IP speed dome camera featuring Sony’s IMX462 Starvis™ back-illuminated pixel technology CMOS image sensor producing a colour sensitivity of 0.18Lux offering a massive improvement in light sensitivity.
The dome also includes an integrated motorized 40x optical zoom with autofocus.

Orion DX 5 offers easy and reliable installation with Power over Ethernet (PoE+) which simplifies installation since only one cable is needed to carry power as well as video and PTZ controls.

Audio

Audio formats supported	G.711, G.726
Audio input channels	1 channels
Audio output channels	1 channels

Camera

Camera pan control	Yes
Lens viewing angle, horizontal	66.50° ~ 2.00 °
Lens viewing angle, vertical	40.00° ~ 1.20 °
Pan range	0 - 360 °
Tilt angle range	-15 - 90 °
White balance	ATW, Auto, Fluorescent, Indoor, Outdoor

Design

Form factor	PTZ Dome
IK code	IK10
International Protection (IP) code	IP66
Mounting type	Ceiling/wall
Product colour	White
Protection features	Dust resistant, Water resistant
Weatherproof	Yes

Features

NDAA Compliance	Yes

Image sensor

Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes
Sensor type	IMX462 CMOS

Lens system

Auto focus	Yes
Digital zoom	12 x
Focal length range	4.3 - 170 mm
Focus	Motorized/Manual
Optical zoom	40 x
Zoom capability	Yes

Management features

Web browser	Yes
Web-based management	Yes

Network

3G	No
4G	No
Bluetooth	No
Cabling technology	10/100/1000BaseT(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3at
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast
Supported network protocols	ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Wi-Fi	No
Works with Apple HomeKit	No
Works with the Google Assistant	No

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-40 - 50 °C

Other features

Dimensions (WxDxH)	210x210x279 mm
Noise detection	Yes
Number of simultaneous users	20 user(s)

Packaging content

Number of cameras	1
Quick installation guide	Yes
Quick start guide	Yes

Performance

Alarm input/output	Yes
Auto patrol mode	Yes
Built-in fan	Yes
Built-in heater	Yes
Connectivity technology	Wired
Day/night mode	Yes
PTZ control	Yes
PTZ modes	4 Pattern
Placement supported	Indoor & outdoor
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Power

AC input voltage	24 V
Power consumption (Power over Ethernet (PoE))	25.5 W
Power consumption (max)	29.04 W
Power over Ethernet (PoE)	Yes
Power source type	AC, PoE+

Security

Alarm input channels	4
Alarm output channels	2
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Storage

Built-in HDD	No
Built-in SSD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB

Technical details

Sensor	IMX462

Vendor information

Brand Name	Ernitec
Homepage	http://www.ernitec.com
Warranty	3 Year(s)

Video

3D NR (Noise Reduction)	Yes
Analog signal format system	NTSC, PAL
Frame rate	30 fps
Full HD	Yes
Image stabilizer	Yes
Maximum resolution	1945 x 1097 pixels
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Privacy masking	Yes
Total megapixels	2 MP
Video compression formats	H.264, H.265, M-JPEG
Video intelligence analytic	Yes
Video streaming	Yes
