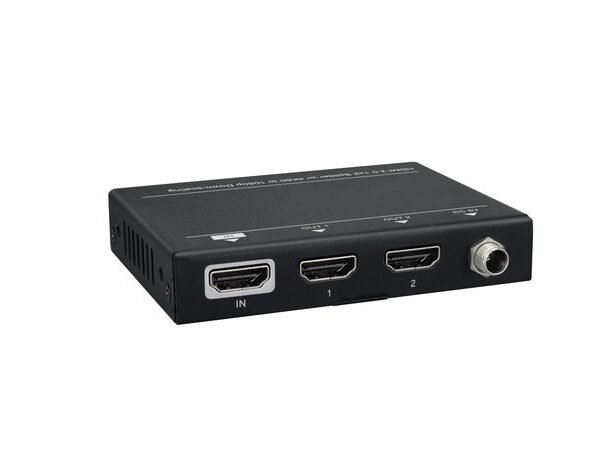

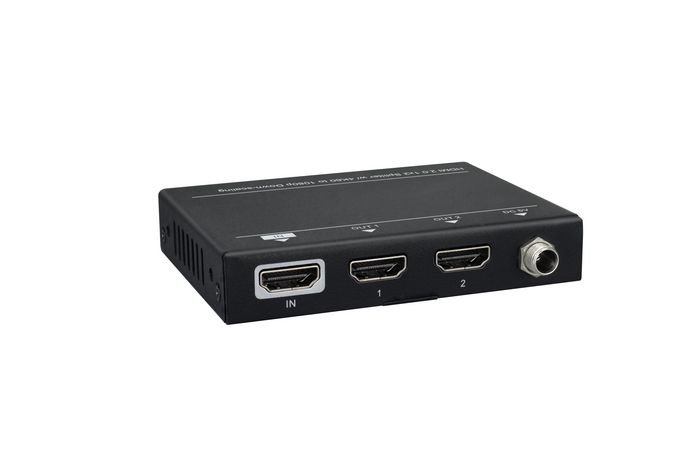

HDMI Splitter 1×2 (4K@60Hz)

The VLHDMISP1X2 is a high-performance 1×2 HDMI splitter designed to distribute a single HDMI input to two outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

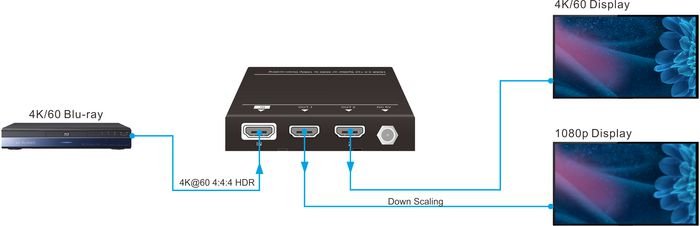

Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.

Typical Applications:

Ideal for distributing HDMI signals to multiple displays in retail environments, trade shows, or any setting requiring high-quality video output to multiple screens.

Features

3D	Yes
Easy to install	Yes
HD type	4K Ultra HD
HDCP	Yes
HDCP version	1.4/2.2
Housing material	Metal
LED indicators	Yes
Maximum refresh rate	60 Hz
Maximum resolution	3840 x 2160 pixels
Number of displays supported	2
Plug and Play	Yes
Power LED	Yes
Product colour	Black
RoHS compliance	Yes
Supported video modes	3840p

Operational conditions

Operating temperature (T-T)	0 - 50 °C

Packaging content

AC adapter included	Yes
User guide	Yes

Packaging data

Quantity per box	1 pc(s)

Ports & interfaces

DC-in jack	Yes
Ethernet LAN	No
HDMI version	1.4/2.0
Video in	1x HDMI
Video out	2x HDMI
Video port type	HDMI
Video ports quantity	2

Power

Input voltage	110v -230v V
Power consumption (typical)	2.5 W

Technical details

Cascadable	Yes
Connector type	HDMI
Maximum cable length	100 m

Vendor information

Brand Name	Vivolink
Warranty	5 Year(s)

Weight & dimensions

Dimensions (WxDxH)	96mm x 70,4mm x 17,6 mm
