Vivolink VLHDMISP1X4 video splitter HDMI 4x HDMI

Name: Vivolink VLHDMISP1X4 video splitter HDMI 4x HDMI
Brand: Vivolink
SKU: VLHDMISP1X4
Price: 94.12 GBP
Availability: InStock

£94.12

Excl.VAT

SKU: VLHDMISP1X4 Category: AV Switches & Splitters Brand: Vivolink EAN: 5706998523365

75 in stock

Add to compare

Add to wishlist

Add to compare

Add to wishlist

Shipping & Delivery

Standard delivery

Our courier will deliver to the specified address

3-4 Days

From £9.95

Express delivery

All heavy items above 25kg will be charged shipping cost as per actual

1-2 Days

From £14.95

HDMI Splitter 1×4 (4K@60Hz)

The VLHDMISP1X4 is a high-performance 1×4 HDMI splitter designed to distribute a single HDMI input to four outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

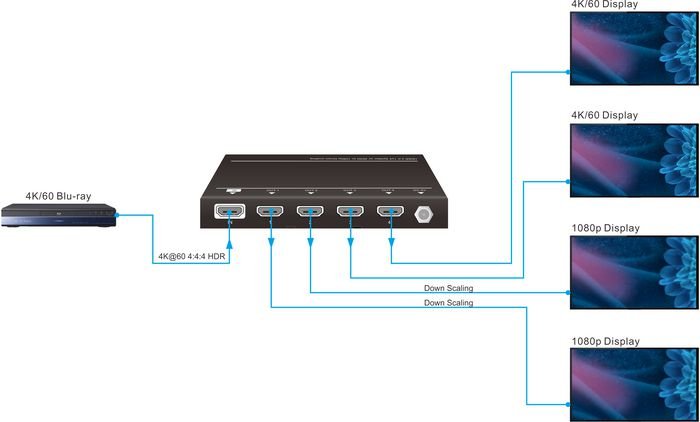

Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.

Typical Applications:
Perfect for distributing HDMI signals in retail stores or at trade shows.

Features

3D	Yes
Easy to install	Yes
HD type	4K Ultra HD
HDCP	Yes
Housing material	Metal
LED indicators	Yes
Maximum refresh rate	60 Hz
Maximum resolution	3840 x 2160 pixels
Number of displays supported	4
Plug and Play	Yes
Power LED	Yes
Product colour	Black
Supported video modes	3840p

Operational conditions

Operating temperature (T-T)	0 - 50 °C

Packaging content

AC adapter included	Yes
User guide	Yes

Packaging data

Quantity per box	1 pc(s)

Ports & interfaces

DC-in jack	Yes
Ethernet LAN	No
HDMI version	1.4/2.0
Video out	4x HDMI
Video port type	HDMI
Video ports quantity	4

Power

Input voltage	110v -230v V
Power consumption (typical)	2.5 W

Technical details

Cascadable	Yes
Connector type	HDMI
Maximum cable length	100 m

Vendor information

Brand Name	Vivolink
Warranty	5 Year(s)

Weight & dimensions

Dimensions (WxDxH)	142mm x 70,6mm x 17,6 mm
